4820-01-261-9706
Expansion Valve
4820012619706 012619706 GRE-1-ZP
A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated. View more Expansion Valve
June 2023
3
Marketplace 4820-01-261-9706
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-261-9706 1+ Documents (More...)
GRE-1-ZP VALVE,EXPANSION 1 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-261-9706
Every Day 4820-01-261-9706 RQST NE Related Documents 4820-01-261-9706 1+ Documents ( More... ) https
Restrictions 4820-01-261-9706
4820-01-261-9706 is a Expansion Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-261-9706
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-261-9706
- US Army (A920)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- A181
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 4820-01-261-9706
- Part Number
- Manufacturer
- Status
- GRE-1-ZP
- Manufacturer
- 78462 - Parker-Hannifin Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 4820-01-261-9706
- Characteristic
- Specifications
- FIIG
- Specifications
- A07100
- Body Style [AAQL]
- Angle Give "Adqm" Or "Adqn" If Flanged One Or Two Ends
- First Connection Face To Centerline Distance [ADQM]
- 3.060 Inches Nominal
- Body Material [AAFZ]
- Brass
- Flow Control Device [ADQU]
- Piston, Spring Loaded
- End Connection Quantity [ADQZ]
- 2
- First End Connection Type [ACKM]
- Threaded External Tube
- First End Style Designator [ACKN]
- Flared
- First End Outside Diameter Tube Accommodated [ACLH]
- 0.250 Inches Nominal
- Second End Relationship With First End [ACLR]
- Not Identical
- Second End Connection Type [ACLS]
- Threaded External Tube

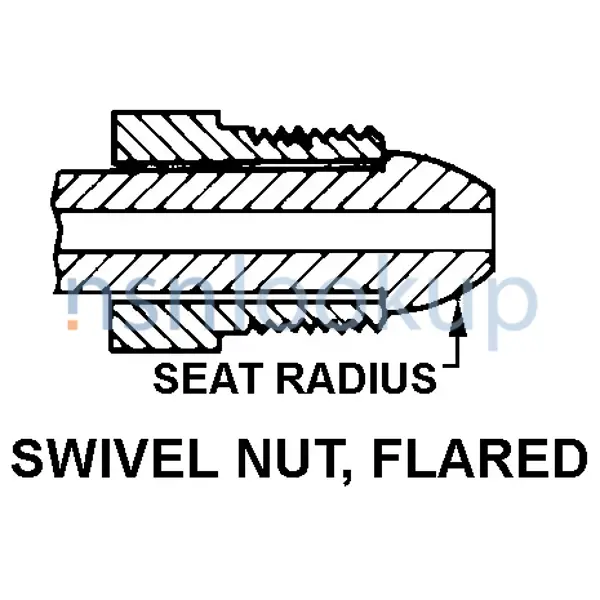

- Second End Style Designator [ACLT]
- Swivel Nut, Flared
- Second End Outside Diameter Tube Accommodated [ACMP]
- 0.250 Inches Nominal
- Media For Which Designed [ACKL]
- Refrigerant
- Valve Expansion Control Type [AFKK]
- Thermostatic
- Valve Evaporator Temp Range Designation [AFKL]
- Low
- Valve Pressure Limiting Device [AFKM]
- Not Included
- Refrigeration Capacity In Btu Per Hour [AGUB]
- 12.0
- Bulb Length [AEVU]
- 3.500 Inches Nominal
- Bulb Diameter [AEVV]
- 0.500 Inches Nominal
- Valve Equalizer Location [AFKU]
- External
- Valve Equalizer Connection Type [AFKV]
- Solder Tube
- Valve Equalizer Connection Diameter [AFKW]
- 0.250 Inches Nominal
DLA Procurement Analysis 4820-01-261-9706
Management Data 4820-01-261-9706
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4820-01-261-9706
Freight Information 4820-01-261-9706
4820-01-261-9706 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of A. It has a NMFC Description of NICKEL OR NICKEL COPPER. 4820-01-261-9706 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-261-9706 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4820-01-261-9706 is not classified as a special type of cargo when transported by water. 4820-01-261-9706 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-261-9706
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 4820-01-261-9706 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
