4820-01-251-1683
Drain Cock
4820012511683 012511683 8926979
An item with one mounting end and one free flowing end with a metal to metal valve closure. It is designed to drain fluids from radiators, boilers, and similar items. View more Drain Cock
March 2024
12
Product Information 4820-01-251-1683

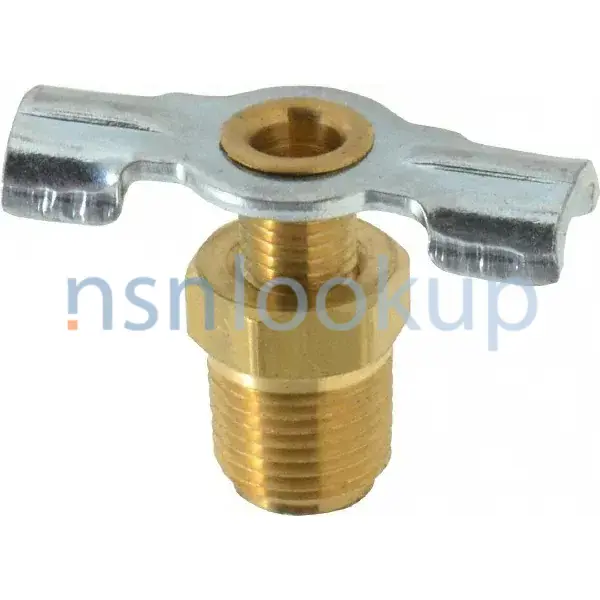

Drain Cock: External Seat, Brass, 1/8 in Pipe Size, MNPT, 150 psi Max. Pressure
Used on Detroit Diesel Engines
Marketplace 4820-01-251-1683
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-251-1683 5+ Documents (More...)
-01-251-1683 RQST Updated Every Day 4820-01-251-1683 RQST NE Related Documents 4820-01-251-1683 2+ Documents
( More... ) https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-251-1683 Drain Cock 4820012511683 012511683,8926979
Restrictions 4820-01-251-1683
4820-01-251-1683 is a Drain Cock that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-251-1683
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-251-1683
- US Army (A920)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHD
- Singapore (YJ01)
- Effective Date:
- 1 Jul 1995
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2005
- Australia (ZA01)
- Effective Date:
- 1 May 1996
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 4820-01-251-1683
- Part Number
- Manufacturer
- Status
- 8926979
- Manufacturer
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 4820-01-251-1683
- Characteristic
- Specifications
- FIIG
- Specifications
- A530C0
- Material [MATT]
- Copper Alloy Body
- Material [MATT]
- Copper Alloy Stem
- Flow Control Device [ADQU]
- Stem
- Media For Which Designed [MEDA]
- Water, Fresh 1St Response
- Media For Which Designed [MEDA]
- Oil 2Nd Response
- Media For Which Designed [MEDA]
- Gas, Natural 3Rd Response
- Valve Operation Method [AQLR]
- Manual
- Connection Type [AWLS]
- Threaded External Pipe All Ends
- Thread Series Designator [THSD]
- Npt All Ends
- Nominal Thread Size [CQJX]
- 0.125 Inches All Ends
- Thread Direction [AAJF]
- Right-Hand All Ends
Weapon Systems (WSDC) 4820-01-251-1683
DLA Procurement Analysis 4820-01-251-1683
- Last Stock Position:
- 11 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4820-01-251-1683
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 4820-01-251-1683
Freight Information 4820-01-251-1683
4820-01-251-1683 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-251-1683 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-251-1683 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4820-01-251-1683 is not classified as a special type of cargo when transported by water. 4820-01-251-1683 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-251-1683
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 4820-01-251-1683 6 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M118FAJPUP00001
- 24 May 2018
- Subscribe
- 556
- Subscribe
- Subscribe
- Subscribe
- SPE7M118FAGHJ
- 17 May 2018
- Subscribe
- 144
- Subscribe
- Subscribe
- Subscribe
- SPE7LX15D00652229
- 01 Sep 2017
- Subscribe
- 216
- Subscribe
- Subscribe
- Subscribe
- SPM7LX08D902839BX
- 26 Jun 2013
- Subscribe
- 561
- Subscribe
- Subscribe
- Subscribe
- SPM7LX08D902838AE
- 19 Feb 2013
- Subscribe
- 81
- Subscribe
- Subscribe
- Subscribe
- SPM7LX08D902837VC
- 10 Jan 2013
- Subscribe
- 98
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4820-01-251-1683 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
