4820-01-191-6091

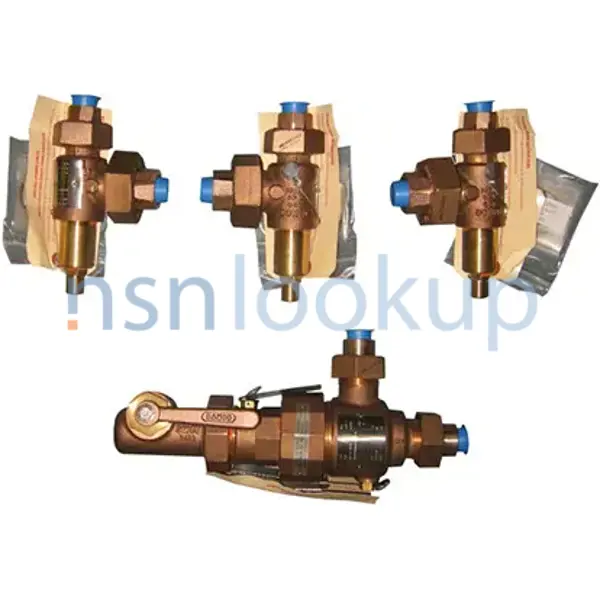

Safety Relief Valve
4820011916091 011916091 MIL-DTL-24332 20218-004-41M MIL-V-24332 20218
A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE. View more Safety Relief Valve
November 2023
8
Marketplace 4820-01-191-6091
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-191-6091 5+ Documents (More...)
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation Subscribe to View Vendor Details... 20218 VALVE
Updated Every Day 4820-01-191-6091 RQST NE Updated Every Day 4820-01-191-6091 RQST Updated Every Day
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-102
Safety Relief Valve 4820011916091 011916091 20218-004-41M MIL-V-24332 20218 A valve designed to
Restrictions 4820-01-191-6091
4820-01-191-6091 is a Safety Relief Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-191-6091
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-191-6091
- US Navy (N9BC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTJBHD
Approved Sources 4820-01-191-6091
- Part Number
- Manufacturer
- Status
- MIL-DTL-24332
- Manufacturer
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 20218-004-41M
- 01343 - Anderson Greenwood Lp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-V-24332
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 20218
- 01343 - Anderson Greenwood Lp (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4820-01-191-6091
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Adjustable Pressure Range [CQCY]
- +20.0/+24.0 Pounds Per Square Inch
- Bolt Hole Nominal Diameter [CWCQ]
- 0.562 Inches All Ends
- Bolt Hole Quantity [AECS]
- 8 All Ends
- Bonnet Attachment Method [ADST]
- Bolted
- Bonnet Type [ADSR]
- Inside Spring
- Bolt Circle Nominal Diameter [CWCT]
- 5.500 Inches All Ends
- Connection Type [AWLS]
- Flange All Ends
- Disk Loading Method [ADSU]
- Spring
- End Item Identification [AGAV]
- Ship,Ohio Class Ssn(Trident)
- First Connection Face To Centerline Distance [CWCL]
- 6.000 Inches
- Flange Face Design [CWDF]
- Plain All Ends
- Flange Shape [ARKN]
- Round With Holes All Ends
- Flow Control Device [ADQU]
- Disk
- Material Document And Classification [MDCL]
- Qq-N-288 Fed Spec Single Material Response Seat
- Material [MATT]
- Copper Alloy Body
- Material [MATT]
- Nickel Alloy Flow Control Device
- Material [MATT]
- Nickel Alloy Seat
- Material [MATT]
- Nickel Alloy Stem
- Maximum Operating Temp [AEHZ]
- 150.0 Deg Fahrenheit Single Response
- Maximum Operating Pressure [CQGM]
- 150.0 Pounds Per Square Inch Single Response
- Nominal Outside Diameter [CWCD]
- 6.625 Inches All Ends
- Nominal Thickness [CWCK]
- 0.500 Inches All Ends
- Nondefinitive Spec/Std Data [ZZZT]
- B Grade
- Material Document And Classification [MDCL]
- Astm B-164 Assn Std Single Material Response Flow Control Device
- Material Document And Classification [MDCL]
- Astm B-164 Assn Std Single Material Response Stem
- Material Document And Classification [MDCL]
- Astm B-61 Assn Std Single Material Response Body
- Second Connection Face To Centerline Distance [CWCR]
- 5.500 Inches
- Special Features [FEAT]
- Level I Requirements Do Not Apply
- Valve Operation Method [AQLR]
- Automatic
- Valve Size [CCFG]
- 3.000 Inches
- Style Designator [STYL]
- Angle
Weapon Systems (WSDC) 4820-01-191-6091
DLA Procurement Analysis 4820-01-191-6091
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4820-01-191-6091
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- May 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
Navy
- Cognizance:
- 3B
Similar Supply Items to 4820-01-191-6091
Freight Information 4820-01-191-6091
4820-01-191-6091 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127220. A Sub NMFC of X. It has a NMFC Description of PRESSURE REG/RED/RELIEF VALVES NOI. 4820-01-191-6091 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64490 which rates the freight between FCL and LCL. 4820-01-191-6091 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-01-191-6091 is not classified as a special type of cargo when transported by water. 4820-01-191-6091 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-191-6091
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 4820-01-191-6091 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
