4820-01-164-7767

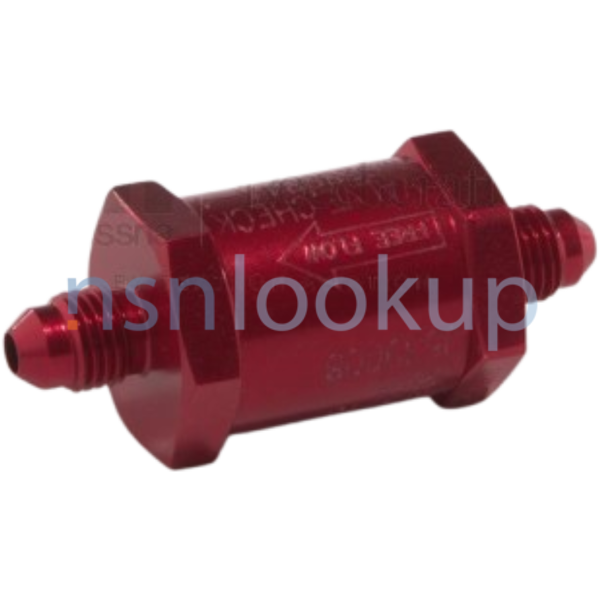

Check Valve
4820011647767 011647767 MIL-DTL-7899 MS28884A-24
A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design. View more Check Valve
Managed by United States
NSN Created on 21 Oct 1983
Data Last Changed
November 2023
November 2023
NATO Update Count
13
13
NATO Data Quality
Marketplace 4820-01-164-7767
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-164-7767 5+ Documents (More...)
MIL-DTL-7899 MS28884A-24 A valve permitting flow in one direction only.
MS28884A-24 VALVE,CHECK 1 EA NS Request Quotation Subscribe to View Vendor Details...
MS28884A-24 VALVE,CHECK 5 EA NS Request Quotation Subscribe to View Vendor Details...
MS28884A-24 VALVE,CHECK 1 EA NS Request Quotation Subscribe to View Vendor Details...
MS28884A-24 VALVE,CHECK 5 EA NS Request Quotation Subscribe to View Vendor Details...
to enable JavaScript in your web browser . 4820-00-013-8904Check Valve4820000138904 000138904 MIL-DTL-7899
Check Valve 4820011647767 011647767 Check Valve 4820000138904000138904 Upgrade for $1 a day Upgrade
-218-4607 Check Valve 4820012184607 012184607 MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-7899
Check Valve 4820011647767 011647767 Check Valve 4820000138904000138904 Upgrade for $1 a day Upgrade
-218-4607 Check Valve 4820012184607 012184607 MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-7899
Upgrade for $1 a day Upgrade your Account Upgrade 4820-00-262-1098Check Valve4820002621098 002621098 MIL-DTL-7899
to enable JavaScript in your web browser . 4820-00-013-8904Check Valve4820000138904 000138904 MIL-DTL-7899
-218-4607 Check Valve 4820012184607 012184607 MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-7899
to enable JavaScript in your web browser . 4820-00-013-8904Check Valve4820000138904 000138904 MIL-DTL-7899
-218-4607 Check Valve 4820012184607 012184607 MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-7899
6-1200 MS29521-12 MIL-V-7899 6633Fuel Swing Check Valve Element4820005236633 005236633 MIL-DTL-7899
VALVE,CHECK https//www.nsnlookup.com / https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-164-7767
Check Valve 4820011647767 011647767 012184607MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL
VALVE,CHECK https//www.nsnlookup.com / https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-164-7767
Check Valve 4820011647767 011647767 012184607MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL
MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-7899 VALVE,CHECK 1 EA NS Request Quotation MS28883
Check Valve 4820011647767 011647767 , MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-
7899 https//www.nsnlookup.com /fsg-48/fsc- MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-7899
Check Valve 4820011647767 011647767 , MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-
7899 https//www.nsnlookup.com /fsg-48/fsc- MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-7899
Restrictions 4820-01-164-7767
4820-01-164-7767 is a Check Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-164-7767
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-164-7767
- US Coast Guard (C911)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- C001
- Supplementary Receivers:
- XH
- US Air Force (FXGC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKE
- Brazil (YA01)
- Effective Date:
- 1 Oct 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Feb 1999
- Greece (ZU01)
- Effective Date:
- 1 Jun 2005
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 4820-01-164-7767
- Part Number
- Manufacturer
- Status
- MS28884A-24
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-7899
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 4820-01-164-7767
- Characteristic
- Specifications
- FIIG
- Specifications
- A530B0
- Connection Style [AHNC]
- Flared (Tube) All Ends
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Disk Loading Method [ADSU]
- Spring
- Flow Control Device [ADQU]
- Disk
- Material [MATT]
- Aluminum Alloy Overall
- Maximum Operating Temp [AEHZ]
- 160.0 Deg Fahrenheit Single Response
- Maximum Operating Pressure [CQGM]
- 300.0 Pounds Per Square Inch Single Response
- Media For Which Designed [MEDA]
- Fuel/Oil, Hydrocarbon Single Response
- Mounting Position [BBJX]
- Horizontal Or Vertical
- Nominal Thread Size [CQJX]
- 1.875 Inches All Ends
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Valve Operation Method [AQLR]
- Automatic
- Specification/Standard Data [ZZZK]
- 96906-Ms28884a Government Standard
- Style Designator [STYL]
- Straight Thru
- Thread Class [AAJD]
- 3A All Ends
- Thread Direction [AAJF]
- Right-Hand All Ends
- Thread Series Designator [THSD]
- Unj All Ends
- Thread Quantity Per Inch [CMLP]
- 12 All Ends
Weapon Systems (WSDC) 4820-01-164-7767
DLA Procurement Analysis 4820-01-164-7767
- Last Stock Position:
- 11 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4820-01-164-7767
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4820-01-164-7767
4820-66-032-2602 4820-99-226-6712 4820-12-376-2998 4810-12-304-9438 4820-99-745-9058 4820-99-993-4992 4820-14-561-5821 4820-21-912-4474 4820-34-031-1491 4820-66-100-0013 4820-66-140-4603 4820-22-608-7887 4820-99-142-5128 4820-37-501-5120 4820-98-104-9586 4820-99-342-0921 4820-32-073-9443 4820-99-762-9214
Freight Information 4820-01-164-7767
4820-01-164-7767 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-164-7767 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-164-7767 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4820-01-164-7767 is not classified as a special type of cargo when transported by water. 4820-01-164-7767 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-164-7767
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 4820-01-164-7767 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
