4820-01-144-9419

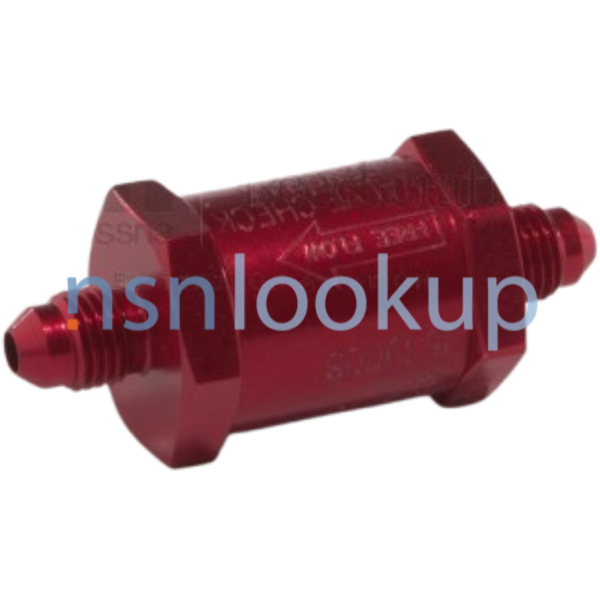

Check Valve
4820011449419 011449419 MIL-DTL-7899 8CB240-1 2S3008L MSB5S5501H11958 1111-517703 MS28884B-8 MS28884B8 MIL-V-7899
A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design. View more Check Valve
Managed by United States
NSN Created on 31 Dec 1982
Data Last Changed
November 2023
November 2023
NATO Update Count
47
47
NATO Data Quality
Marketplace 4820-01-144-9419
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every Day 4820-01-144-9419 RQST NE
Updated Every Day 4820-01-144-9419 RQST
Updated Every Day 4820-01-144-9419 RQST NE
Related Documents 4820-01-144-9419 5+ Documents (More...)
MIL-DTL-7899 8CB240-1 2S3008L MSB5S5501H11958 1111-517703 MS28884B-8 MS28884B8 MIL-V-7899 A valve permitting
,CHECK 1 EA NS Request Quotation MS28884B8 VALVE,CHECK 3 EA NS Request Quotation MIL-V-7899 VALVE,CHECK
VALVE,CHECK 3 EA NS Request Quotation MIL-V-7899 VALVE,CHECK VALVE,CHECK MS28884B8 VALVE,CHECK 3 EA
,CHECK 1 EA NS Request Quotation MS28884B8 VALVE,CHECK 3 EA NS Request Quotation MIL-V-7899 VALVE,CHECK
VALVE,CHECK 3 EA NS Request Quotation MIL-V-7899 VALVE,CHECK VALVE,CHECK MS28884B8 VALVE,CHECK 3 EA
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 2S3008L
MS28885-8 VALVE,CHECK 1 EA NS Request Quotation Subscribe to View Vendor Details... 2S3008L VALVE,CHECK
MS28884B8 VALVE,CHECK 3 EA NS Request Quotation Subscribe to View Vendor Details... 1111-517703 VALVE
MS28885-8 VALVE,CHECK 1 EA NS Request Quotation Subscribe to View Vendor Details... 2S3008L VALVE,CHECK
MS28884B8 VALVE,CHECK 3 EA NS Request Quotation Subscribe to View Vendor Details... 1111-517703 VALVE
,CHECK 5 EA NS Request Quotation MIL-DTL- 7899 https//www.nsnlookup.com / fsg-48/fsc MIL-V-7899 VALVE
,CHECK 5 EA NS Request Quotation MIL-DTL-7899 , 012152135 , MIL-V-7899 / fsg-48/fsc MIL-DTL-7899 VALVE
Check Valve 4820015218103015218103 , MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL- 7899 https
,CHECK 5 EA NS Request Quotation MIL-DTL-7899 , 012152135 , MIL-V-7899 / fsg-48/fsc MIL-DTL-7899 VALVE
Check Valve 4820015218103015218103 , MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL- 7899 https
MS28883 MIL-V-7899 VALVE, 012152135 , MIL-V-7899 https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01
VALVE,CHECK 1 EA NS Request Quotation MS28883 MIL-V-7899 VALVE, 012152135 , MIL-V-7899 /fsg-48/
MIL-DTL-7899 VALVE,CHECK 1 EA NS Request Quotation MS28883 MIL-V-7899 VALVE, 012152135 https//www.nsnlookup.com
VALVE,CHECK 1 EA NS Request Quotation MS28883 MIL-V-7899 VALVE, 012152135 , MIL-V-7899 /fsg-48/
MIL-DTL-7899 VALVE,CHECK 1 EA NS Request Quotation MS28883 MIL-V-7899 VALVE, 012152135 https//www.nsnlookup.com
https EA NS Request Quotation MIL-DTL-7899 https/ /www.nsnlookup.com / fsg-48/fsc MIL-DTL-7899 VALVE
/www.nsnlookup.com MIL-DTL-7899 VALVE,CHECK 1 EA NS Request Quotation MS28883 MIL-V-7899 VALVE, 012152135
, MIL-V-7899 / fsg-48/fsc MIL-DTL-7899 VALVE,CHECK 1 EA NS Request https//www.nsnlookup.com /fsg-48/
/www.nsnlookup.com MIL-DTL-7899 VALVE,CHECK 1 EA NS Request Quotation MS28883 MIL-V-7899 VALVE, 012152135
, MIL-V-7899 / fsg-48/fsc MIL-DTL-7899 VALVE,CHECK 1 EA NS Request https//www.nsnlookup.com /fsg-48/
Restrictions 4820-01-144-9419
4820-01-144-9419 is a Check Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-144-9419
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-144-9419
- US Army (A920)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- A181
- US Coast Guard (C911)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- C001
- US Air Force (FXGC)
- Effective Date:
- 1 Feb 2007
- US Navy (N9BC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHD
- Poland (WP01)
- Effective Date:
- 1 Aug 2011
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Feb 1999
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jul 1993
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Jul 1993
- Italy (ZR01)
- Effective Date:
- 1 Jun 1997
- Denmark (ZS01)
- Effective Date:
- 1 Oct 2001
- Norway (ZT01)
- Effective Date:
- 1 Nov 2011
- Greece (ZU01)
- Effective Date:
- 1 May 2008
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 4820-01-144-9419
- Part Number
- Manufacturer
- Status
- MS28884B-8
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-7899
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 8CB240-1
- 82829 - Allen Aircraft Products Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 2S3008L
- 99240 - Crissair Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS28884B8
- A0126 - Leonardo Spa Helicopters Division - (Active)
- Secondary Buy
- Secondary Buy
- MIL-V-7899
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MSB5S5501H11958
- 53711 - Naval Sea Systems Command (Active)
- Advisory Reference
- Advisory Reference
- 1111-517703
- 78816 - Trumpy John And Sons Inc (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 4820-01-144-9419
- Characteristic
- Specifications
- FIIG
- Specifications
- A530B0
- Connection Style [AHNC]
- External Seat For Gasket Seal (Boss) All Ends
- Connection Type [AWLS]
- Threaded External Boss All Ends
- Disk Loading Method [ADSU]
- Spring
- Flow Control Device [ADQU]
- Disk
- Material [MATT]
- Aluminum Alloy 2024 Body
- Maximum Operating Temp [AEHZ]
- 200.0 Deg Fahrenheit Single Response
- Maximum Operating Pressure [CQGM]
- 3000.0 Pounds Per Square Inch Single Response
- Media For Which Designed [MEDA]
- Fuel/Oil, Hydrocarbon Single Response
- Mounting Position [BBJX]
- Horizontal Or Vertical
- Nominal Thread Size [CQJX]
- 0.750 Inches All Ends
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Special Features [FEAT]
- Supports Grumman A-10 Aircraft
- Valve Operation Method [AQLR]
- Automatic
- Style Designator [STYL]
- Straight Thru
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625 Mil Spec Single Treatment Response
- Surface Treatment [SFTT]
- Anodize
- Thread Class [AAJD]
- 3A All Ends
- Thread Direction [AAJF]
- Right-Hand All Ends
- Thread Series Designator [THSD]
- Unj All Ends
- Thread Quantity Per Inch [CMLP]
- 16 All Ends
Weapon Systems (WSDC) 4820-01-144-9419
DLA Procurement Analysis 4820-01-144-9419
- Last Stock Position:
- 24 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4820-01-144-9419
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4820-01-144-9419
4820-66-032-2602 4820-99-226-6712 4820-12-376-2998 4810-12-304-9438 4820-99-745-9058 4820-99-993-4992 4820-14-561-5821 4820-21-912-4474 4820-34-031-1491 4820-66-100-0013 4820-66-140-4603 4820-22-608-7887 4820-99-142-5128 4820-37-501-5120 4820-98-104-9586 4820-99-342-0921 4820-32-073-9443 4820-99-762-9214
Freight Information 4820-01-144-9419
4820-01-144-9419 has freight characteristics managed by Germany.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-144-9419 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-144-9419 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-01-144-9419 is not classified as a special type of cargo when transported by water. 4820-01-144-9419 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-144-9419
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4820-01-144-9419 3 Records
Contracting Technical Data File (CTDF) 4820-01-144-9419 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
