Directional Control Linear Valve
4820011428954 011428954 MC14432-2 10124643
A manually or power operated valve having three or more ports. The direction of the flow through the various ports is controlled by either one or more reciprocating slide(s) or spool(s) with recess areas which mate with ports in an integral or replaceable ported sleeve, or one or more poppet(s). It is designed to change the direction of fluid flow from one valve port to another. An off (no flow) position is not a flow pattern. The valve is designed to actuate various components of a fluid system. A power operated valve may have a manual override. For items which stop, start, or change the flow of fluid, see: VALVE, SOLENOID. Excludes VALVE, PLUG. See also SERVOVALVE, HYDRAULIC; BODY SECTION, WORKING, LINEAR DIRECTIONAL CONTROL VALVE; and VALVE ASSEMBLY. View more Directional Control Linear Valve
November 2023
12
Product Information 4820-01-142-8954

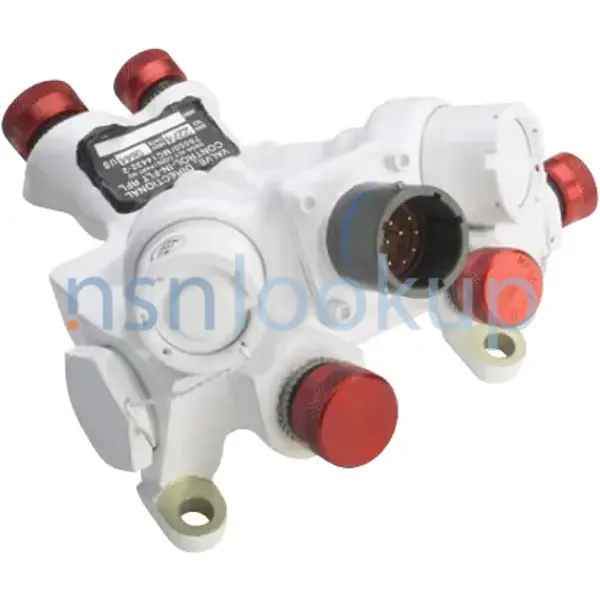

In-Flight Refuel Control Valve
Used on Boeing F/A-18E/F “Super Hornet” Strike Fighter
Eaton’s in-flight refuel control valve is a 3-position, 4-way design that is operated by a pair of 28 VDC solenoid valves. The solenoid valves shift the main spool and sleeve valve to either extend or retract the IFR Probe. The probe position is dependent on which solenoid is energized. The manifold has a separate pilot operated emergency spool and sleeve valve that allows the probe to extend regardless of the position of the main spool and sleeve.
Marketplace 4820-01-142-8954
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-142-8954 3+ Documents (More...)
Marketplace 4820-01-142-8954 Need Help?
MC14432-2 VALVE,LINEAR,DIRECTIONAL CONTROL 1 EA NS Request Quotation Updated Every Day 4820-01-142-8954
Restrictions 4820-01-142-8954
4820-01-142-8954 is a Directional Control Linear Valve that is an aviation critical safety item or flight safety critical aircraft part. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
