4820-01-118-3008
Plug Valve
4820011183008 011183008 52800-1
A valve designed to control the flow of a fluid by the rotation of a ported plug or plug sector within a suitable ported seat. The plug requires lubrication for ease of operation or contains a bonded composition seal(s). See also VALVE, SEATLESS and COCK, PLUG. View more Plug Valve
September 2023
6
Marketplace 4820-01-118-3008
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-118-3008 1+ Documents (More...)
RQST NE Updated Every Day 4820-01-118-3008 RQST Updated Every Day 4820-01-118-3008 RQST NE Related
Documents 4820-01-118-3008 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820
Restrictions 4820-01-118-3008
4820-01-118-3008 is a Plug Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-118-3008
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-118-3008
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- CT
- Spain (YB01)
- Effective Date:
- 1 Nov 2007
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2002
Approved Sources 4820-01-118-3008
- Part Number
- Manufacturer
- Status
- 52800-1
- Manufacturer
- 99643 - Eaton Aerospace Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 4820-01-118-3008
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Material [MATT]
- Aluminum Alloy Body
- Flow Style [ADQS]

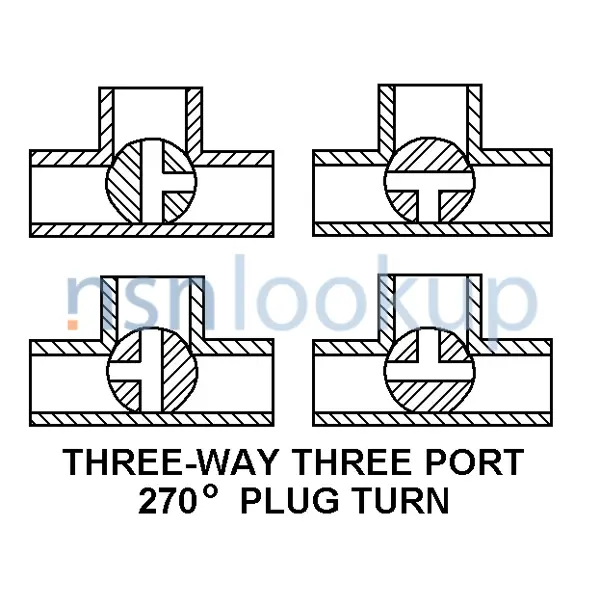

- Three -Way Three Port 270 Degree Plug Turn
- Valve Operation Method [AQLR]
- Manual
- Connection Type [AWLS]
- Flange 1St End
- Connection Type [AWLS]
- Threaded Internal Boss 2Nd End
- Connection Type [AWLS]
- Threaded Internal Boss 3Rd End
- Connection Type [AWLS]
- Threaded Internal Boss 4Th End
- Connection Style [AHNC]
- Gasket Seal(Boss) 2Nd End
- Connection Style [AHNC]
- Gasket Seal(Boss) 3Rd End
- Connection Style [AHNC]
- Gasket Seal(Boss) 4Th End
- Flange Shape [ARKN]
- Triangular With Holes 1St End
- Nominal Thickness [CWCK]
- 0.330 Inches 1St End
- Nominal Length [AKGG]
- 1.400 Inches 1St End
- Nominal Width [AKGF]
- 1.834 Inches 1St End
- Bolt Hole Quantity [AECS]
- 3 1St End
- Bolt Hole Nominal Diameter [CWCQ]
- 0.200 Inches 1St End
- Bolt Circle Nominal Diameter [CWCT]
- 1.500 Inches 1St End
- Flange Face Design [CWDF]
- Plain 1St End
- Thread Series Designator [THSD]
- Unf 2Nd End
- Thread Series Designator [THSD]
- Unf 3Rd End
- Thread Series Designator [THSD]
- Unf 4Th End
- Nominal Thread Size [CQJX]
- 0.438 Inches 2Nd End
- Nominal Thread Size [CQJX]
- 0.438 Inches 3Rd End
- Nominal Thread Size [CQJX]
- 0.438 Inches 4Th End
- Thread Class [AAJD]
- 2B 2Nd End
- Thread Class [AAJD]
- 2B 3Rd End
- Thread Class [AAJD]
- 2B 4Th End
- Thread Direction [AAJF]
- Right-Hand 2Nd End
- Thread Direction [AAJF]
- Right-Hand 3Rd End
- Thread Direction [AAJF]
- Right-Hand 4Th End
Weapon Systems (WSDC) 4820-01-118-3008
DLA Procurement Analysis 4820-01-118-3008
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4820-01-118-3008
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 4820-01-118-3008
Freight Information 4820-01-118-3008
4820-01-118-3008 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-118-3008 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-118-3008 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4820-01-118-3008 is not classified as a special type of cargo when transported by water. 4820-01-118-3008 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-118-3008
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 4820-01-118-3008 1 Records
Contracting Technical Data File (CTDF) 4820-01-118-3008 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
