4820-01-073-1544
Pneumatic Tank Valve
4820010731544 010731544 40396 VTS4-4
A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil. View more Pneumatic Tank Valve
January 2023
7
Marketplace 4820-01-073-1544
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-073-1544 5+ Documents (More...)
(Identification) 1/3 NSN 4820-01-073-1544 (Identification) 2/3 NSN 4820-01-073-1544 (Identification
NS Request Quotation Updated Every Day 40396 RQST NE Updated Every Day VTS4-4 RQST NE Updated Every
Pneumatic Tank Valve 4820010731544 010731544 day Upgrade your Account Upgrade 4820-01-073-1544Pneumatic
Tank Valve4820010731544 010731544 40396 VTS4 VALVE,PNEUMATIC TANK 10 EA NS Request Quotation Updated
Active) Secondary Buy RNCC 5 RNVC 2 DAC 1 0-111073 https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-073-1544
Pneumatic Tank Valve 4820010731544 010731544 $1 a day Upgrade your Account Upgrade 4820-01-073-
www.nsnlookup.com /fsg-58/fsc-5820/fr 5820-14-461-5599 Vitre Anticalorifiq 5820144615599 144615599 40396
2530-99-849-9418 Adjustabl Ball Race 2530998499418 998499418 State Drive7020016813980 016813980 40469-40396
JavaScript in your web browser . 7025-01-498-2561Calibration Mainten7025014982561 014982561 37534-40396
Oil Seal Ring 2520998235205 998235205,40396 151106511 40396 https//www.nsnlookup.com /fsg-25/fsc-2530
Restrictions 4820-01-073-1544
4820-01-073-1544 is a Pneumatic Tank Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-073-1544
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-073-1544
- US Marine Corps (MC40)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2004
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
Approved Sources 4820-01-073-1544
- Part Number
- Manufacturer
- Status
- 40396
- Manufacturer
- 07295 - Spx Corporation Dba O T C Tool & (Obsolete)
- Original Design
- Original Design
- VTS4-4
- 07295 - Spx Corporation Dba O T C Tool & (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4820-01-073-1544
- Characteristic
- Specifications
- FIIG
- Specifications
- A07100
- End Connection Quantity [ADQZ]
- 3
- Body Material [AAFZ]
- Brass
- Body Style [AAQL]
- Tee Give "Adql" And "Adqm" Only When Flanged All Ends
- First End Connection Type [ACKM]
- Threaded Internal Tube

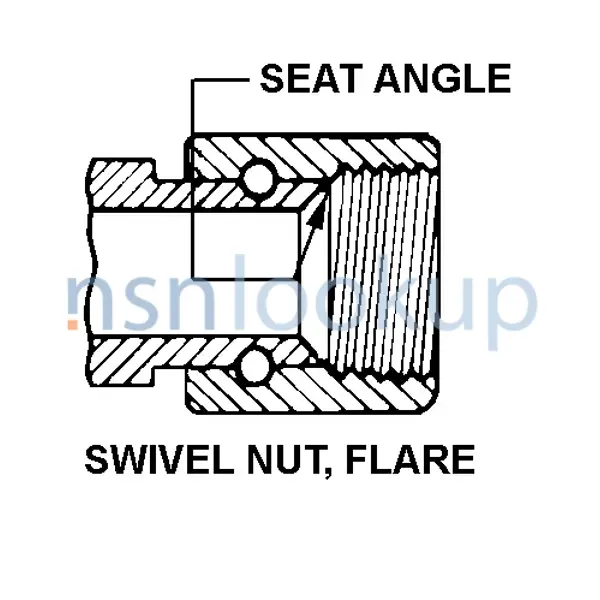

- First End Style Designator [ACKN]
- Swivel Nut, Flare
- First End Thread Class [ACLK]
- 2B
- First End Thread Direction [ACLL]
- Right-Hand
- First End Thread Size And Series/Type Designator [ACLJ]
- 0.438-20 Unf
- First End Outside Diameter Tube Accommodated [ACLH]
- 0.250 Inches Nominal
- First End Seat Angle In Deg [ACTE]
- 45.0
- Flow Control Device [ADQU]
- Core
- Second End Connection Type [ACLS]
- Threaded External Tube
- Seat Material [ACSH]
- Polyamide Nylon

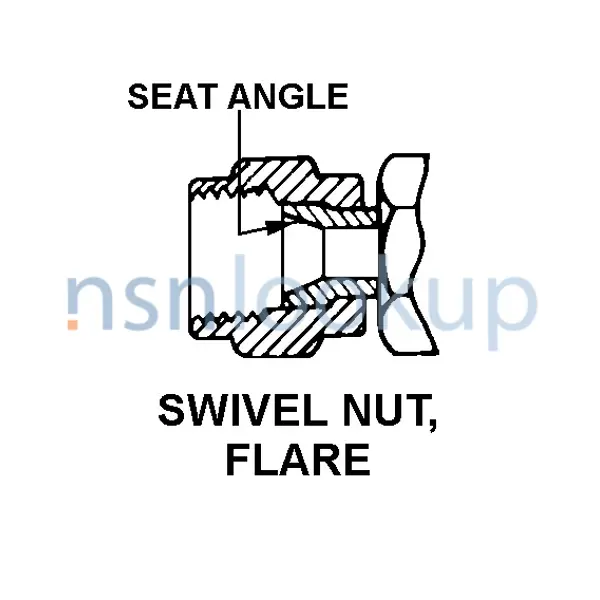

- Second End Style Designator [ACLT]
- Swivel Nut, Flare
- Second End Thread Direction [ACMS]
- Right-Hand
- Second End Thread Class [ACMR]
- 3A
- Second End Thread Size And Series/Type Designator [ACMQ]
- 0.438 Unj
- Second End Outside Diameter Tube Accommodated [ACMP]
- 0.250 Inches Nominal
- Second End Relationship With First End [ACLR]
- Not Identical
- Second End Seat Angle In Deg [ACTF]
- 37.0
- Special Features [FEAT]
- Valve Core Located In Male Flare Branch Connection
- Temp Rating [ABJH]
- -65.0 Deg Fahrenheit
- Temp Rating [ABJH]
- 450.0 Deg Fahrenheit
- Third End Relationship With Preceding Ends [ACMX]
- Identical With Second End
DLA Procurement Analysis 4820-01-073-1544
Management Data 4820-01-073-1544
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Dec 2016
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- V
- Discontinued W/O Replacement
- V
- Defense Logistics Agency (DS)
- I
- V
- Discontinued W/O Replacement
- V
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4820-01-073-1544
Freight Information 4820-01-073-1544
4820-01-073-1544 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127220. A Sub NMFC of X. It has a NMFC Description of PRESSURE REG/RED/RELIEF VALVES NOI. 4820-01-073-1544 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64490 which rates the freight between FCL and LCL. 4820-01-073-1544 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-01-073-1544 is not classified as a special type of cargo when transported by water. 4820-01-073-1544 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-073-1544
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- A-A-1898, Grade II, Water Resistant Cellulosic Cushioning
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 4820-01-073-1544 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
