4820-01-050-9704
Expansion Valve
4820010509704 010509704 HC1-2FN HF 1/2FC HC 1/2FW HC-1/2FC HC1/2FW
A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated. View more Expansion Valve
June 2023
11
Marketplace 4820-01-050-9704
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-050-9704 5+ Documents (More...)
(Identification) 1/2 NSN 4820-01-050-9704 (Identification) 2/2 - - 1.
Every Day 4820-01-050-9704 RQST Updated Every Day 4820-01-050-9704 RQST NE Related Documents 4820-01-
Expansion Valve 4820010509704 010509704 Upgrade 4820-01-050-9704Expansion Valve4820010509704 010509704
HC1-2FN HF 1/2FC HC 1/2FW HC-1/2FC HC1/2FW Expansion Valve 4820004104498004104498 for $1 a day Upgrade
Expansion Valve 4820010509704 010509704 Upgrade 4820-01-050-9704Expansion Valve4820010509704 010509704
HC1-2FN HF 1/2FC HC 1/2FW HC-1/2FC HC1/2FW Expansion Valve 4820011595876011595876 for $1 a day Upgrade
Expansion Valve 4820010509704 010509704 Valve 4820011595876011595876 for $1 a day Upgrade https
-3/8X3/8-1/2ANGLE HC1-2FW 223FA1/2 A self-acting valve specifically designed for use in refrigeration
HC1-2FW VALVE,EXPANSION 1 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 4820-01-050-9704
4820-01-050-9704 is a Expansion Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-01-050-9704
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-050-9704
- US Coast Guard (C911)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- C001
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Malaysia (YW01)
- Effective Date:
- 1 Jun 1996
Approved Sources 4820-01-050-9704
- Part Number
- Manufacturer
- Status
- HF 1/2FC
- Manufacturer
- 70255 - Emerson Electric Co (Active)
- Primary Buy
- Primary Buy
- HC 1/2FW
- 70255 - Emerson Electric Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- HC-1/2FC
- 70255 - Emerson Electric Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- HC-1/2FC
- 57644 - Tw Metals Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- HC1/2FW
- 57644 - Tw Metals Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- HC 1/2FW
- 32441 - Alco Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- HC1-2FN
- 32441 - Alco Corp (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 4820-01-050-9704
- Characteristic
- Specifications
- FIIG
- Specifications
- A07100

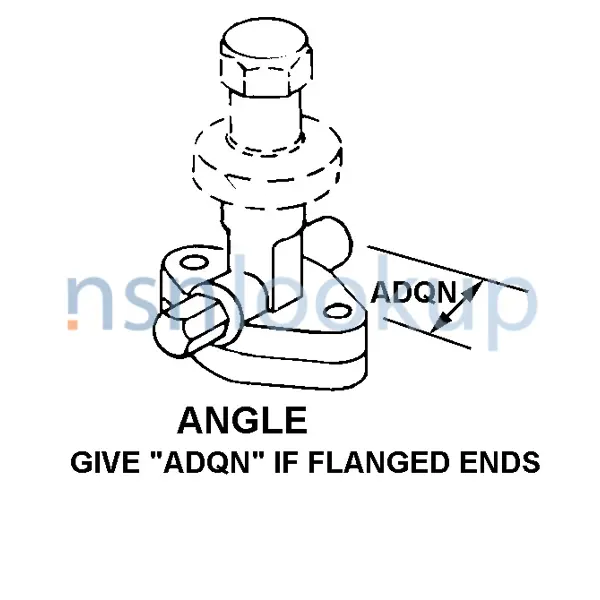

- Body Style [AAQL]
- Angle Give "Adqn" If Flanged Ends
- Body Material [AAFZ]
- Brass
- Flow Control Device [ADQU]
- Stem And Integral Disk
- Flow Control Device Material [ADQV]
- Steel, Corrosion Resisting
- Stem Material [ABEP]
- Steel, Corrosion Resisting
- End Connection Quantity [ADQZ]
- 2
- First End Connection Type [ACKM]
- Threaded External Tube
- First End Style Designator [ACKN]
- Flared
- First End Outside Diameter Tube Accommodated [ACLH]
- 0.375 Inches Nominal
- First End Thread Class [ACLK]
- 2A
- First End Thread Direction [ACLL]
- Right-Hand
- First End Seat Angle In Deg [ACTE]
- 37.0
- Second End Relationship With First End [ACLR]
- Not Identical
- Second End Connection Type [ACLS]
- Threaded External Tube
- Second End Style Designator [ACLT]
- Flared
- Second End Outside Diameter Tube Accommodated [ACMP]
- 0.250 Inches Nominal
- Second End Thread Class [ACMR]
- 2A
- Second End Thread Direction [ACMS]
- Right-Hand
- Second End Seat Angle In Deg [ACTF]
- 37.0
- Media For Which Designed [ACKL]
- Refrigerant 12
- Temp Rating [ABJH]
- 300.0 Deg Fahrenheit
- Valve Expansion Control Type [AFKK]
- Thermostatic
- Valve Evaporator Temp Range Designation [AFKL]
- Plus 50 Deg F To Minus 50 Deg F
- Valve Pressure Limiting Device [AFKM]
- Not Included
- Refrigeration Capacity In Btu Per Hour [AGUB]
- 12.0
- Bulb Media Type [AFKQ]
- Trichloromonofluoromethane
- Capillary Tube Length [AEVT]
- 5.000 Inches Nominal
- Bulb Mounting Method [AFKR]
- Well
- Bulb Length [AEVU]
- 3.500 Inches Nominal
- Bulb Diameter [AEVV]
- 0.500 Inches Nominal
- Valve Equalizer Location [AFKU]
- Internal
Weapon Systems (WSDC) 4820-01-050-9704
