4820-01-038-0463
Fluid Pressure Regulating Valve
4820010380463 010380463 891-7651 806-9121 806-9621
A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft. View more Fluid Pressure Regulating Valve
May 2023
9
Marketplace 4820-01-038-0463
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-038-0463 5+ Documents (More...)
) https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-038-0463 Fluid Pressure Regulating Valve 010380463
Fluid Pressure Regulating Valve 010380463 (Identification) 2/3 NSN 4820-01-038-0463 (Identification
Fluid Pressure Regulating Valve 010380463 Identification BUY NE FedMall Updated Every Day 4820
Valve 010380463 -0463 Fluid Pressure Regulating https//www.nsnlookup.com /fsg-83/fsc-8345 Flags and
RQST NE Updated Every Day 5331-99-891-7651 RQST Updated Every Day 5331-99-891-7651 RQST NE Restrictions
https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-038-0463 Fluid Pressure Regulating Valve 010380463
RQST Updated Every Day 6130-21-891-7651 RQST NE Related Documents 6130-21-891-7651 2+ Documents ( More
fsc-4820/us 4820-01-038-0463 Fluid Pressure Regulating Valve 010380463 -0463 Fluid Pressure Regulating
Fluid Pressure Regulating Valve 010380463 CRITICALITY : | HMIC : | PMIC : | EDC: | ADPEC https
Navy (DN)NZDiscontinued-Use 4820-01-038-0463Defense Logistics Agency (DS)IZDiscontinued-Use 4820-01-038-0463
Restrictions 4820-01-038-0463
4820-01-038-0463 is a Fluid Pressure Regulating Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-01-038-0463
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-038-0463
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4820-01-038-0463
- Part Number
- Manufacturer
- Status
- 806-9621
- Manufacturer
- 94080 - Airco Welding Products Div Of Boc (Obsolete)
- Original Design
- Original Design
- 891-7651
- 94080 - Airco Welding Products Div Of Boc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 891-7651
- 00741 - Messer Llc (Active)
- Advisory Reference
- Advisory Reference
- 806-9121
- 80382 - Boc Group Inc The (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4820-01-038-0463
- Characteristic
- Specifications
- FIIG
- Specifications
- A21100
- End Connection Quantity [ADQZ]
- 2
- Body Material [AAFZ]
- Brass
- Body Style [AAQL]
- Angle
- Furnished Items [ABFF]
- Automatic Relief Valve And Cylinder Gage And Delivery Gage
- Filter [AEWF]
- Not Included
- First End Connection Type [ACKM]
- Threaded Internal Tube

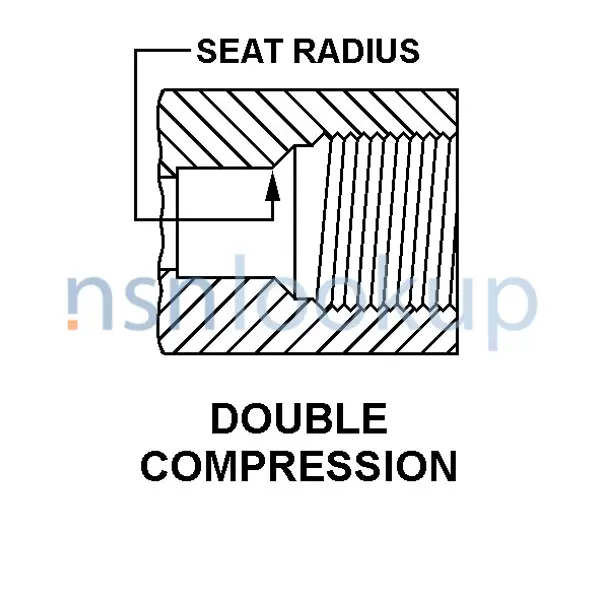

- First End Style Designator [ACKN]
- Double Compression
- First End Outside Diameter Tube Accommodated [ACLH]
- 0.375 Inches Nominal
- First End Seat Angle In Deg [ACTE]
- 30.0
- First End Thread Class [ACLK]
- 2B
- First End Thread Direction [ACLL]
- Right-Hand
- First End Thread Size And Series/Type Designator [ACLJ]
- 0.624-18 Unf
- Flow Control Device [ADQU]
- Diaphragm
- Media For Which Designed [ACKL]
- Argon
- Manual Control Method [AEVP]
- Knob
- Regulation Type [AEVN]
- Manual Single Stage
- Second End Connection Type [ACLS]
- Threaded Internal Gas Cylinder
- Second End Style Designator [ACLT]
- Plain
- Second End Thread Direction [ACMS]
- Right-Hand
- Second End Thread Pitch Diameters [ADRP]
- +0.9100 To 0.9136 Inches
- Second End Thread Size And Series/Type Designator [ACMQ]
- 0.960-14 Ngo
- Second End Relationship With First End [ACLR]
- Not Identical
- Valve Loading Method [AEVR]
- Spring
- Temp Rating [AZKQ]
- 165.0 Deg Fahrenheit Maximum
DLA Procurement Analysis 4820-01-038-0463
Management Data 4820-01-038-0463
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 4820-01-038-0463
Freight Information 4820-01-038-0463
4820-01-038-0463 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127220. A Sub NMFC of X. It has a NMFC Description of PRESSURE REG/RED/RELIEF VALVES NOI. 4820-01-038-0463 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64490 which rates the freight between FCL and LCL. 4820-01-038-0463 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-01-038-0463 is not classified as a special type of cargo when transported by water. 4820-01-038-0463 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-038-0463
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 4820-01-038-0463 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
