4820-01-034-4896
Expansion Valve
4820010344896 010344896 SF-1 1/2C SFE-1 1/2C SFE-1-1/2C SJE-1/2-C SFE1-2C SFE1-2FC
A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated. View more Expansion Valve
November 2023
6
Marketplace 4820-01-034-4896
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-034-4896 5+ Documents (More...)
(Identification) 1/3 NSN 4820-01-034-4896 (Identification) 2/3 NSN 4820-01-034-4896 (Identification
SFE1-2C VALVE,EXPANSION 1 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-034-4896 BUY
Expansion Valve 4820010344896 010344896 -2C SFE1-2FC A self-acting valve specifically designed
for use in refrigeration systems for continual SFE1-2C VALVE,EXPANSION 1 EA NS Request Quotation FedMall
Expansion Valve 4820010344896 010344896 -2C SFE1-2FC A self-acting valve specifically designed
for use in refrigeration systems for continual SFE1-2C VALVE,EXPANSION 1 EA NS Request Quotation FedMall
Expansion Valve 4820010344896 010344896 4896Expansion Valve4820010344896 010344896 https// https
Expansion Valve 4820010344896 010344896 -034-4896Expansion Valve4820010344896 010344896 https//
Restrictions 4820-01-034-4896
4820-01-034-4896 is a Expansion Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-01-034-4896
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-034-4896
- NASA (G880)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Supplementary Collaborators:
- GTJBHXHD
Approved Sources 4820-01-034-4896
- Part Number
- Manufacturer
- Status
- SJE-1/2-C
- Manufacturer
- 78462 - Parker-Hannifin Corp (Active)
- Primary Buy
- Primary Buy
- SFE1-2C
- 78462 - Parker-Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- SFE1-2FC
- 78462 - Parker-Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- SF-1 1/2C
- 78462 - Parker-Hannifin Corp (Active)
- Advisory Reference
- Advisory Reference
- SFE-1 1/2C
- 78462 - Parker-Hannifin Corp (Active)
- Advisory Reference
- Advisory Reference
- SFE-1-1/2C
- 78462 - Parker-Hannifin Corp (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4820-01-034-4896
- Characteristic
- Specifications
- FIIG
- Specifications
- A07100
- End Connection Quantity [ADQZ]
- 2
- Body Material [AAFZ]
- Brass
- Body Style [AAQL]
- Straight Thru
- Bulb Diameter [AEVV]
- 0.500 Inches Nominal
- Bulb Length [AEVU]
- 3.500 Inches Nominal
- Bulb Media Type [AFKQ]
- Refrigerant 12
- Bulb Mounting Method [AFKR]
- Clamp
- Capillary Tube Length [AEVT]
- 60.000 Inches Nominal
- First End Connection Type [ACKM]
- Unthreaded Internal Tube
- First End Style Designator [ACKN]
- Plain
- First End Outside Diameter Tube Accommodated [ACLH]
- 0.625 Inches Nominal
- Flow Control Device Material [ADQV]
- Steel, Corrosion Resisting
- Flow Control Device [ADQU]
- Piston, Spring Loaded
- Media For Which Designed [ACKL]
- Refrigerant 12
- Refrigeration Capacity In Btu Per Hour [AGUB]
- 6.0
- Second End Connection Type [ACLS]
- Unthreaded Internal Tube
- Seat Material [ACSH]
- Steel, Corrosion Resisting And Nickel Copper Alloy

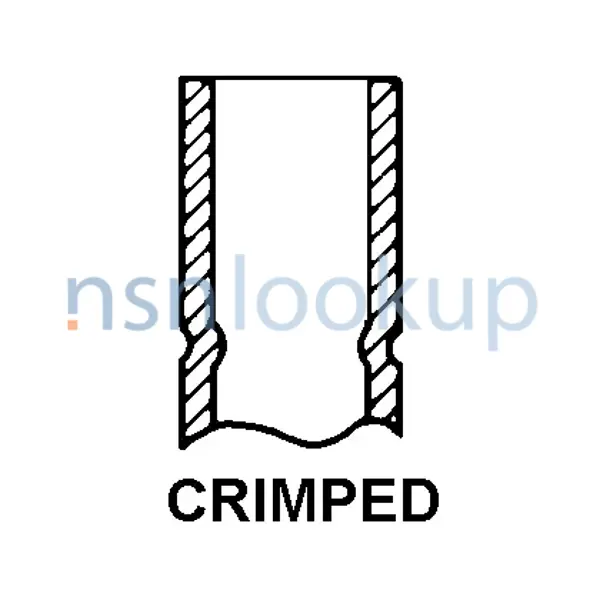

- Second End Style Designator [ACLT]
- Crimped
- Second End Outside Diameter Tube Accommodated [ACMP]
- 0.375 Inches Nominal
- Second End Relationship With First End [ACLR]
- Not Identical
- Valve Pressure Limiting Device [AFKM]
- Not Included
- Valve Equalizer Connection Type [AFKV]
- Flared Tube
- Valve Equalizer Location [AFKU]
- External
- Valve Equalizer Connection Diameter [AFKW]
- 0.250 Inches Nominal
- Valve Expansion Control Type [AFKK]
- Thermostatic
- Valve Evaporator Temp Range Designation [AFKL]
- High
Weapon Systems (WSDC) 4820-01-034-4896
DLA Procurement Analysis 4820-01-034-4896
- Last Stock Position:
- 11 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4820-01-034-4896
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4820-01-034-4896
Freight Information 4820-01-034-4896
4820-01-034-4896 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-034-4896 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-034-4896 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4820-01-034-4896 is not classified as a special type of cargo when transported by water. 4820-01-034-4896 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-034-4896
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
