4820-00-878-0523
Valve Seat
4820008780523 008780523 100284-2714
A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT. View more Valve Seat
May 2023
5
Marketplace 4820-00-878-0523
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-878-0523 4+ Documents (More...)
United States (US) 4. 4820-00-878-0523 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 4820-00-878-0523
Valve Seat 4820008780523 008780523 Upgrade for $1 a day Upgrade your Account Upgrade 4820-00-878
-0523Valve Seat4820008780523 008780523 100284 ) https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-00-
Valve Seat 4820008780523 008780523 Upgrade for $1 a day Upgrade your Account Upgrade 4820-00-878
-0523Valve Seat4820008780523 008780523 100284 ) https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-00-
Valve Seat 4820008780523 008780523 /www.nsnlookup.com /fsg-48/fsc-4820/us 4820-00- https//www.nsnlookup.com
Restrictions 4820-00-878-0523
4820-00-878-0523 is a Valve Seat that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-00-878-0523
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-00-878-0523
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HDHX
Approved Sources 4820-00-878-0523
- Part Number
- Manufacturer
- Status
- 100284-2714
- Manufacturer
- 13014 - Bethlehem Steel Corp Shipbuilding (Obsolete)
- Original Design
- Original Design
Datasheet 4820-00-878-0523
- Characteristic
- Specifications
- FIIG
- Specifications
- A15500

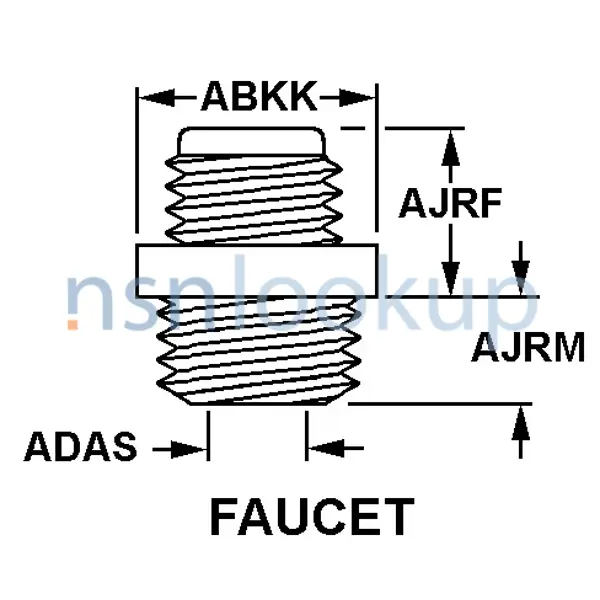

- Style Designator [STYL]
- Faucet
- Flange Diameter [ABKK]
- 1.000 Inches Nominal
- Body Inside Diameter [ADAS]
- 0.655 Inches Nominal
- Flange Seat To Disk End Height [AJRF]
- 0.720 Inches Nominal
- Under Flange Height [AJRM]
- 0.692 Inches Nominal
- Material [MATT]
- Steel Corrosion Resisting Body
- Material [MATT]
- Plastic,Tetrafluroethylene Seat
- Seating Surface Shape [CQKM]
- Flat
- Thread Series Designator [THSD]
- Unf First Threaded Portion
- Thread Series Designator [THSD]
- Unf Second Threaded Portion
- Nominal Thread Size [CQJX]
- 0.625 Inches First Threaded Portion
- Nominal Thread Size [CQJX]
- 0.750 Inches Second Threaded Portion
- Thread Class [AAJD]
- 2A First Threaded Portion
- Thread Class [AAJD]
- 2A Second Threaded Portion
- Thread Length [AASA]
- 0.375 Inches Nominal First Threaded Portion
- Thread Length [AASA]
- 0.403 Inches Nominal Second Threaded Portion
DLA Procurement Analysis 4820-00-878-0523
Management Data 4820-00-878-0523
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4820-00-878-0523
Freight Information 4820-00-878-0523
4820-00-878-0523 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-00-878-0523 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-00-878-0523 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-00-878-0523 is not classified as a special type of cargo when transported by water. 4820-00-878-0523 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-00-878-0523
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4820-00-878-0523 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
