4820-00-797-2477
Float Valve
4820007972477 007972477 A1088592G11
A valve designed to utilize a valve float which controls the opening or closing of the valve as the valve float is lowered or raised by the level of the fluid being controlled. Excludes VALVE, FLOAT, WATER CLOSET TANK. View more Float Valve
January 2023
7
Marketplace 4820-00-797-2477
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-797-2477 1+ Documents (More...)
Day 4820-00-797-2477 RQST Updated Every Day 4820-00-797-2477 RQST NE Related Documents 4820-00-797-2477
VALVE,FLOAT 1 EA NS Request Quotation Updated Every Day 4820-00-797-2477 RQST NE Updated Every Day 4820
Restrictions 4820-00-797-2477
4820-00-797-2477 is a Float Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4820-00-797-2477
- US Coast Guard (C056)
- Effective Date:
- 1 Jul 2010
- Former MOE Rule:
- C164
Approved Sources 4820-00-797-2477
- Part Number
- Manufacturer
- Status
- A1088592G11
- Manufacturer
- 28527 - L3harris Technologies, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 4820-00-797-2477
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Connection Style [AHNC]
- Plain (Pipe) All Ends
- Connection Type [AWLS]
- Threaded External Pipe All Ends
- Flow Control Device [ADQU]
- Plug
- Material [MATT]
- Copper Alloy Overall
- Maximum Operating Pressure [CQGM]
- 35.0 Pounds Per Square Inch Single Response
- Nominal Thread Size [CQJX]
- 0.312 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.375 Inches 2Nd End

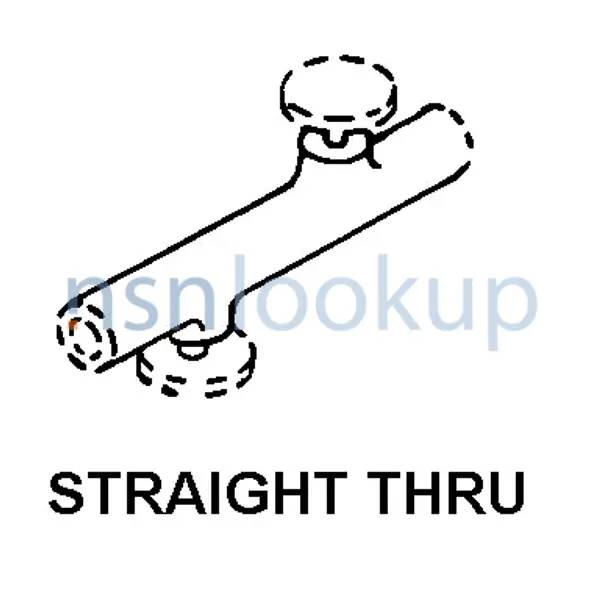

- Style Designator [STYL]
- Straight Thru
- Thread Class [AAJD]
- 1A 2Nd End
- Thread Class [AAJD]
- 2A 1St End
- Thread Direction [AAJF]
- Right-Hand 1St End
- Thread Direction [AAJF]
- Right-Hand 2Nd End
- Thread Series Designator [THSD]
- Unc 2Nd End
- Thread Series Designator [THSD]
- Unef 1St End
- Valve Operation Method [AQLR]
- Hydraulic Or Electric Motor
Similar Supply Items to 4820-00-797-2477
Freight Information 4820-00-797-2477
4820-00-797-2477 has freight characteristics.. 4820-00-797-2477 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
