4820-00-773-6872
Restrictor Check Valve
4820007736872 007736872 MIL-V-8566 1121-6-1.75 MS28886-6-1.75
A valve specifically designed to automatically maintain a predetermined discharge flow rate which may be adjustable within a specific range. It is designed to be used with various fluids and may be preset and/or adjustable. It may be in-line or cartridge (manifold) design. Excludes VALVE, REGULATING, FEED WATER; VALVE, REGULATING, FLUID PRESSURE; VALVE, REGULATING, FUEL OIL; VALVE, REGULATING, OIL PRESSURE, AUTOMATIC PILOT; VAVLE, REGULATING, TEMPERATURE; VALVE, ANGLE; and VALVE, GLOBE. View more Calibrated Flow Valve
November 2023
14
Marketplace 4820-00-773-6872
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-773-6872 5+ Documents (More...)
NE Updated Every Day 4820-00-773-6872 RQST NE Updated Every Day 4820-00-773-6872 RQST Updated Every
Day 4820-00-773-6872 RQST NE Related Documents 4820-00-773-6872 5+ Documents ( More... ) https//www.nsnlookup.com
Restrictor Check Valve 4820001986308 2831Calibrated Flow Valve4820012372831 012372831 MIL-V-8566
010250459 Upgrade your Account Upgrade 4820-01-025-0459Calibrated Valve4820010250459 010250459 MIL-V-8566
Restrictor Check Valve 4820007736872 day Upgrade your Account Upgrade 4820-00-773-6872Restrictor
Check Valve4820007736872 007736872 MIL-V-8566 day Upgrade your Account Upgrade 4820-00-198-6308Restrictor
a day Upgrade your Account Upgrade 4820-00-938-7992Calibrated Flow Valve4820009387992 009387992 MIL-V-8566
a day Upgrade your Account Upgrade 4820-00-614-3372Calibrated Flow Valve4820006143372 006143372 MIL-V-8566
a day Upgrade your Account Upgrade 4820-00-614-3372Calibrated Flow Valve4820006143372 006143372 MIL-V-8566
a day Upgrade your Account Upgrade 4820-00-860-4648Calibrated Flow Valve4820008604648 008604648 MIL-V-8566
Restrictions 4820-00-773-6872
4820-00-773-6872 is a Restrictor Check Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-00-773-6872
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-00-773-6872
- US Air Force (FXGC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- FXAX
- Singapore (YJ01)
- Effective Date:
- 1 Jun 1998
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4820-00-773-6872
- Part Number
- Manufacturer
- Status
- MS28886-6-1.75
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-V-8566
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 1121-6-1.75
- 98441 - Parker Hannifin Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 1121-6-1.75
- 82271 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4820-00-773-6872
- Characteristic
- Specifications
- FIIG
- Specifications
- A21100

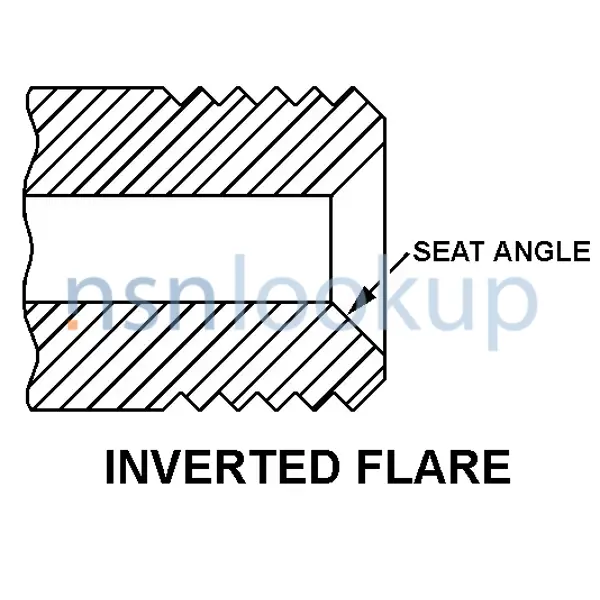

- Connection Style [AHNC]
- Inverted Flare (Tube) All Ends
- Connection Type [AWLS]
- Threaded Internal Tube All Ends
- Flow Control Device [ADQU]
- Poppet
- Material [MATT]
- Aluminum Body
- Maximum Operating Temp [AEHZ]
- 160.0 Deg Fahrenheit Single Response
- Maximum Operating Pressure [CQGM]
- 3000.0 Pounds Per Square Inch Single Response
- Media For Which Designed [MEDA]
- Fuel/Oil, Hydrocarbon Single Response
- Mounting Position [BBJX]
- Horizontal Or Vertical
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.375 Inches All Ends
- Nominal Thread Size [CQJX]
- 0.563 Inches All Ends
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Thread Class [AAJD]
- 3B All Ends
- Thread Direction [AAJF]
- Right-Hand All Ends
- Thread Series Designator [THSD]
- Unjf All Ends
- Valve Operation Method [AQLR]
- Automatic
- Style Designator [STYL]
- Straight Thru
Weapon Systems (WSDC) 4820-00-773-6872
DLA Procurement Analysis 4820-00-773-6872
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4820-00-773-6872
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 4820-00-773-6872
Freight Information 4820-00-773-6872
4820-00-773-6872 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-00-773-6872 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-00-773-6872 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-00-773-6872 is not classified as a special type of cargo when transported by water. 4820-00-773-6872 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-00-773-6872
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4820-00-773-6872 11 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7MC22P2553
- 08 Apr 2022
- Subscribe
- 6
- Subscribe
- Subscribe
- Subscribe
- SPE7M122V0054
- 09 Nov 2021
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE7MC22P0294
- 09 Nov 2021
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPE7M122V0054P00001
- 09 Nov 2021
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE7MC17V0628
- 11 Oct 2016
- Subscribe
- 14
- Subscribe
- Subscribe
- Subscribe
- SPE7MC16V4249
- 29 Feb 2016
- Subscribe
- 16
- Subscribe
- Subscribe
- Subscribe
- SPE7MC16M3555
- 08 Feb 2016
- Subscribe
- 12
- Subscribe
- Subscribe
- Subscribe
- SPE7MC15V8401
- 28 Aug 2015
- Subscribe
- 11
- Subscribe
- Subscribe
- Subscribe
- SPE7MC15M2655
- 16 Jan 2015
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPE7MC15M0198
- 06 Oct 2014
- Subscribe
- 15
- Subscribe
- Subscribe
- Subscribe
- SPM7MC13M5056
- 14 Mar 2013
- Subscribe
- 13
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4820-00-773-6872 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
