4820-00-762-9537
Safety Relief Valve
4820007629537 007629537 MIL-DTL-24332 MILV24332GRB1-2 400-46T072SBU MILV24332
A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE. View more Safety Relief Valve
November 2023
5
Marketplace 4820-00-762-9537
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-762-9537 5+ Documents (More...)

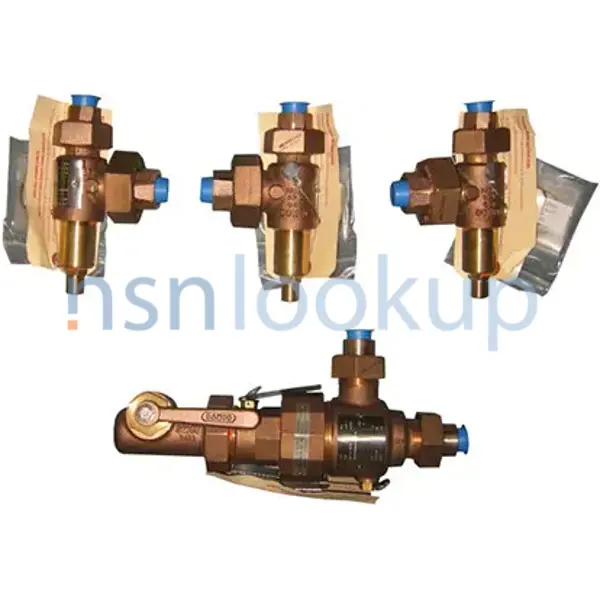

Photo 1/2 NSN 4820-00-762-9537 (Identification) 2/2 - - 1.
Updated Every Day 4820-00-762-9537 RQST Updated Every Day 4820-00-762-9537 RQST NE Related Documents
MILV24332GRA1 1-4 150-42T056F 20302H41M R10AG5G5AY-CSI MILV24332 A valve designed to automatically
Safety Relief Valve 4820007629537 007629537 a day Upgrade your Account Upgrade 4820-00-762-9537Safety
R-10AG1G1-AW/49464REV0/883117998 DL0-40F/B2 MILV24332 NMP-1110 A valve designed to automatically
5990 Safety Relief Valve 4820006405990 006405990 20213LS41M D1200B 1-2UU1741T SET 75 PSI D50UU-06 MILV24332
MILV24332GRB1/2 400-66T075SBU 20213KS41M 20213KS41MCID883116375 20213KS41M/20213/883116375 CS4820-0034 MILV24332
Safety Relief Valve 4820007629537 007629537 MILV24332GRB1-2 400-46T072SBU MILV24332 A valve designed
Safety Relief Valve 4820007629537 007629537 a day Upgrade your Account Upgrade 4820-00-762-9537Safety
Relief Valve4820007629537 007629537 MIL-DTL-24332 MILV24332GRB1-2 400-46T072SBU MILV24332 A valve designed
Restrictions 4820-00-762-9537
4820-00-762-9537 is a Safety Relief Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-00-762-9537
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-00-762-9537
- US Navy (N9BC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 4820-00-762-9537
- Part Number
- Manufacturer
- Status
- MIL-DTL-24332
- Manufacturer
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MILV24332GRB1-2 400-46T072SBU
- 03950 - Naval Inventory Control Point (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MILV24332
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4820-00-762-9537
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Adjustable Pressure Range [CQCY]
- +46.0/+72.0 Pounds Per Square Inch
- Bonnet Type [ADSR]
- Inside Spring
- Bonnet Attachment Method [ADST]
- Threaded
- Connection Style [AHNC]
- Socket (Tube) Err-100
- Connection Type [AWLS]
- Unthreaded Internal Tube All Ends
- Disk Loading Method [ADSU]
- Spring
- Features Provided [CBBL]
- Pressure Tight Outlet Side
- Flow Control Device [ADQU]
- Disk
- Material Document And Classification [MDCL]
- Qq-C-390,Alloy D4/D Fed Spec Single Material Response Body
- Material [MATT]
- Copper Alloy 922 Body
- Material [MATT]
- Steel Seat
- Material [MATT]
- Steel Flow Control Device
- Maximum Operating Pressure [CQGM]
- 400.0 Pounds Per Square Inch Single Response
- Maximum Operating Temp [AEHZ]
- 150.0 Deg Fahrenheit Single Response
- Media For Which Designed [MEDA]
- Water, Fresh Single Response
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.500 Inches All Ends
- Nondefinitive Spec/Std Data [ZZZT]
- B Grade
- Opening Pressure Setting [CSDC]
- 72.0 Pounds Per Square Inch
- Material Document And Classification [MDCL]
- Astm A276,Type E303 Assn Std Single Material Response Flow Control Device
- Material Document And Classification [MDCL]
- Astm A276,Type E303 Assn Std Single Material Response Seat
- Renewable Seat Ring Type [ADZH]
- Threaded
- Valve Discharge Flow Rate [ADSY]
- 21.5 Gallons Per Minute
- Valve Operation Method [AQLR]
- Automatic
- Style Designator [STYL]
- Angle
- Test Data Document [TEST]
- 81349-Mil-S-901 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
DLA Procurement Analysis 4820-00-762-9537
Management Data 4820-00-762-9537
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4820-00-762-9537
Freight Information 4820-00-762-9537
4820-00-762-9537 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127220. A Sub NMFC of X. It has a NMFC Description of PRESSURE REG/RED/RELIEF VALVES NOI. 4820-00-762-9537 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64490 which rates the freight between FCL and LCL. 4820-00-762-9537 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 4820-00-762-9537 is not classified as a special type of cargo when transported by water. 4820-00-762-9537 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-00-762-9537
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
