4820-00-753-9695

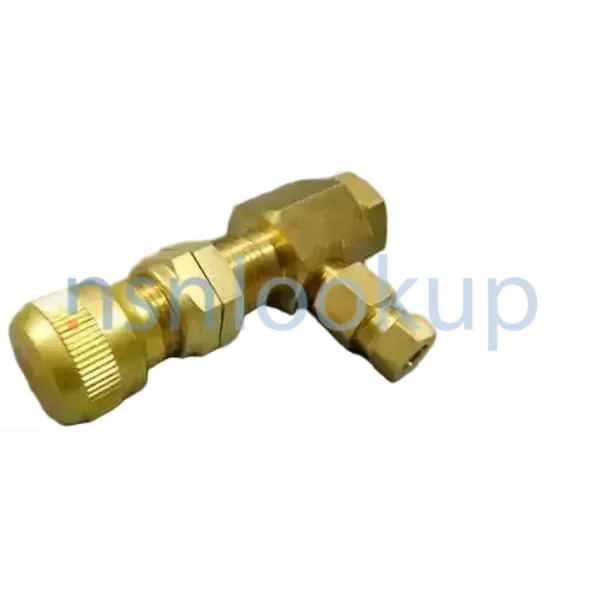

Angle Valve

4820007539695 007539695 DCSC#1 7539695 KC6455 75470-4ZE 2168207 2280740 75470-4ZQ 955466X1 75470-4EC GF-76-60 75470-4ZP 75470-4ZT 283R8 4UA182 75470-4C 2016773

A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM. View more Angle Valve

Managed by United States

NSN Created on 1 Jan 1960

Data Last Changed
November 2023

NATO Update Count
58

NATO Data Quality

STYL Style A7 for 4820-00-753-9695 1/1 — NSN 4820-00-753-9695 (Identification) 1/1

Marketplace 4820-00-753-9695

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

4820-00-753-9695 VALVE,ANGLE 29 EA NS

Subscribe to View Vendor Details...

7539695 VALVE,ANGLE 3 EA NS

Subscribe to View Vendor Details...

DCSC1 VALVE 1 EA NS

DCSC#1 VALVE 2 EA NS

DCSC1#1 VALVE 1 EA NS

SCS#1 VALVE, ANGLE (PRESSURE REGULATING VALVE) 2 EA NS

DCS#1 VALVE, ANGLE 1 EA NS

Subscribe to View Vendor Details...

955466X1 VALVE,ANGLE RQST NS

Subscribe to View Vendor Details...

2540-00-753-9695 VALVE ASSY,WIPER 5 EA NS

Subscribe to View Vendor Details...

DCSC1 VALVE,ANGLE 8 EA NS

Subscribe to View Vendor Details...

7539695 VALVE,ANGLE 8 EA NS

Subscribe to View Vendor Details...

7539695 VALVE,ANGLE 26 EA NS

Subscribe to View Vendor Details...

007539695.2540 VALVE,ANGLE 17 EA NS

1549159 VALVE,ANGLE 5 EA NS

4820-00-753-9695 RQST NE

Updated Every Day

4820-00-753-9695 RQST

Updated Every Day

4820-00-753-9695 RQST NE

Restrictions 4820-00-753-9695

4820-00-753-9695 is a Angle Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

End Users 4820-00-753-9695

US Army (A920)
Effective Date:: 1 Jun 2006
Former MOE Rule:: A181
Supplementary Receivers:: AZBD; AMC 3 AMSC L IMC Z IMCACTY CD

US Air Force (FXGC)
Effective Date:: 1 Feb 2007; AMC 3 AMSC L IMC Z IMCACTY SX

US Marine Corps (MC40)
Effective Date:: 1 Jun 2006
Former MOE Rule:: MC01; AMC 3 AMSC L IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Jun 2006
Former MOE Rule:: N9CD; AMC 3 AMSC L IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Brazil (YA01)
Effective Date:: 1 Dec 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 4820-00-753-9695

Part Number
Manufacturer
Status
DCSC#1: 82484 - Cvg Sprague Devices, Llc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 6
7539695: 19207 - U S Army Tank Automotive Command (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
KC6455: 56442 - Diamond Reo Truck Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
75470-4ZE: 60703 - Trico Products Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
4820007539695: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
2168207: 24617 - General Motors Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
2280740: 24617 - General Motors Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
75470-4ZQ: 60703 - Trico Products Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
955466X1: 58275 - Sasco Inc Canadian Div (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
75470-4EC: 60703 - Trico Products Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
GF-76-60: 82484 - Cvg Sprague Devices, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
75470-4ZP: 60703 - Trico Products Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
75470-4ZT: 60703 - Trico Products Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
283R8: 56442 - Diamond Reo Truck Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
2280740: 23862 - Military Vehicles Opn General Motors (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
4UA182: 62265 - Volvo Trucks North America, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
75470-4C: 62265 - Volvo Trucks North America, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
2016773: 24617 - General Motors Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
4820007539695: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 4820-00-753-9695

Characteristic
Specifications
FIIG: A046B0
Bonnet Type [ADSR]: Packing Retaining
Connection Style [AHNC]: Double Compression(Tube) Err-100
Connection Style [AHNC]: Plain,Optional End(Pipe) 2Nd End
Connection Type [AWLS]: Threaded Internal Pipe 2Nd End
Connection Type [AWLS]: Threaded Internal Tube 1St End
Features Provided [CBBL]: Bonnet Packing
Flow Control Device [ADQU]: Disk
Material [MATT]: Copper Alloy Overall
Nominal Outside Diameter Tube Accommodated [CWFD]: 0.250 Inches 1St End
Nominal Thread Size [CQJX]: 0.125 Inches 2Nd End
Nominal Thread Size [CQJX]: 0.438 Inches 1St End
Style Designator [STYL]: Angle
Renewable Seat Ring Type [ADZH]: Threaded
Seat Angle [CQRB]: 2.0 Degrees 1St End
Valve Operation Method [AQLR]: Manual
Thread Class [AAJD]: 2B 1St End
Thread Direction [AAJF]: Right-Hand 2Nd End
Thread Direction [AAJF]: Right-Hand 1St End
Thread Series Designator [THSD]: Npt 2Nd End
Thread Series Designator [THSD]: Unf 1St End
