4820-00-738-5064
Drain Cock
4820007385064 007385064 180B1
An item with one mounting end and one free flowing end with a metal to metal valve closure. It is designed to drain fluids from radiators, boilers, and similar items. View more Drain Cock
January 2023
12
Marketplace 4820-00-738-5064
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-738-5064 2+ Documents (More...)
-00-738-5064 Drain Cock 4820007385064 007385064,180B1 RQST NE Updated Every Day 4820-00-738-5064 RQST
) https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820 -00-738-5064 Drain Cock 4820007385064 007385064,180B1
Drain Cock 4820007385064 007385064,180B1 RQST NE Updated Every Day 4820-00-738-5064 RQST Updated
Every Day 4820-00-738-5064 RQST NE Related Documents 4820-00-738-5064 2+ Documents ( More... ) https
Restrictions 4820-00-738-5064
4820-00-738-5064 is a Drain Cock that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-00-738-5064
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-00-738-5064
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4820-00-738-5064
- Part Number
- Manufacturer
- Status
- 180B1
- Manufacturer
- 91511 - Auto-Valve, Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 4820-00-738-5064
- Characteristic
- Specifications
- FIIG
- Specifications
- A530C0
- Maximum Operating Pressure [CQGM]
- 50.0 Pounds Per Square Inch Single Response
- Media For Which Designed [MEDA]
- Fuel/Oil, Hydrocarbon Single Response
- Nominal Pipe Size Accommodated [AAAR]
- 0.125 Inches 1St End
- Nominal Pipe Size Accommodated [AAAR]
- 0.125 Inches 2Nd End
- Nominal Thread Size [CQJX]
- 0.125 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.125 Inches 2Nd End
- Material [MATT]
- Copper Alloy Body
- Valve Operation Method [AQLR]
- Manual

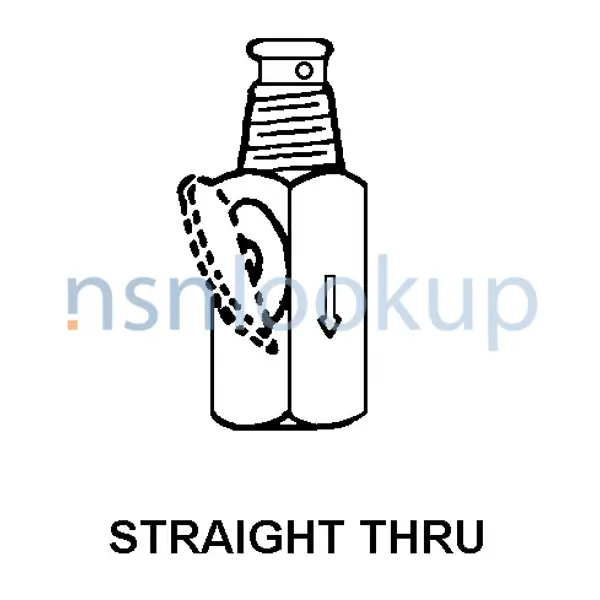

- Style Designator [STYL]
- Straight Thru
- Surface Treatment [SFTT]
- Cadmium
- Thread Direction [AAJF]
- Right-Hand 2Nd End
- Thread Direction [AAJF]
- Right-Hand 1St End
- Thread Series Designator [THSD]
- Anpt 2Nd End
- Thread Series Designator [THSD]
- Npt 1St End
- Thread Quantity Per Inch [CMLP]
- 27 1St End
- Thread Quantity Per Inch [CMLP]
- 27 2Nd End
Similar Supply Items to 4820-00-738-5064
Freight Information 4820-00-738-5064
4820-00-738-5064 has freight characteristics.. 4820-00-738-5064 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
