4820-00-633-5979
Valve Seat
4820006335979 006335979 89622
A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT. View more Valve Seat
May 2023
4
Marketplace 4820-00-633-5979
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-633-5979 5+ Documents (More...)
/fsg-48/fsc-4820/us 4820-00-633-5979 Valve Seat 4820006335979 006335979,89622 Updated Every Day 4820
-00-633-5979 RQST NE Updated Every Day 4820-00-633-5979 RQST Updated Every Day 4820-00-633-5979 RQST
www.nsnlookup.com /fsg-47/fsc-4710/tr 4710-27-033-7017 Metallic Pipe 4710270337017 270337017,89622 89622
Valve Seat 4820006335979 006335979,89622 Upgrade for $1 a day Upgrade your Account Upgrade 4820
https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-00-633-5979 Valve Seat 4820006335979 006335979,89622
Upgrade for $1 a day Upgrade your Account Upgrade 4820-00-633-5979Valve Seat4820006335979 006335979
www.nsnlookup.com /fsg-47/fsc-4710/tr 4710-27-033-7017 Metallic Pipe 4710270337017 270337017,89622 89622
Valve Seat 4820006335979 006335979,89622 Upgrade for $1 a day Upgrade your Account Upgrade 4820
89622 https//www.nsnlookup.com /fsg-59/fsc-5962/us 5962-01-255-6269 Linear Microcircuit 5962012556269012556269
Restrictions 4820-00-633-5979
4820-00-633-5979 is a Valve Seat that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-00-633-5979
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-00-633-5979
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4820-00-633-5979
- Part Number
- Manufacturer
- Status
- 89622
- Manufacturer
- 38056 - Ashcroft Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 4820-00-633-5979
- Characteristic
- Specifications
- FIIG
- Specifications
- A15500
- Body Stepped Inside Diameter [CQKW]
- 1.125 Inches Minimum Second Step And 1.130 Inches Maximum Second Step
- Body Stepped Inside Diameter [CQKW]
- 1.156 Inches Nominal Third Step
- Body Stepped Inside Diameter [CQKW]
- 1.500 Inches Nominal Fourth Step
- Body Stepped Inside Diameter [CQKW]
- 1.326 Inches Minimum First Step And 1.330 Inches Maximum First Step
- Thread Length [AASA]
- 0.688 Inches Nominal First Threaded Portion
- Thread Length [AASA]
- 0.688 Inches Nominal Second Threaded Portion
- Flange Diameter [ABKK]
- 3.750 Inches Nominal
- Flange Seat To Disk End Height [AJRF]
- 0.688 Inches Nominal
- Material [MATT]
- Steel Comp 347 Overall
- Nominal Thread Size [CQJX]
- 1.688 Inches First Threaded Portion
- Nominal Thread Size [CQJX]
- 1.875 Inches Second Threaded Portion
- Seating Surface Shape [CQKM]
- Flat
- Overall Height [ABKW]
- 1.376 Inches Nominal
- Under Flange Height [AJRM]
- 4.312 Inches Nominal

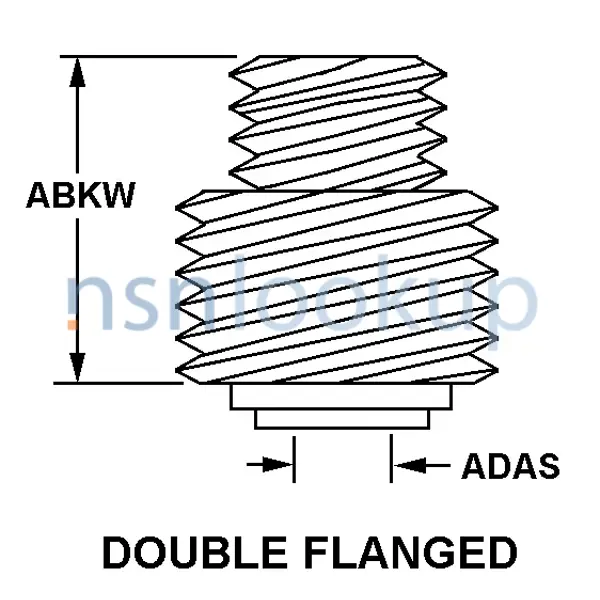

- Style Designator [STYL]
- Double Flanged
- Thread Class [AAJD]
- 3A First Threaded Portion
- Thread Class [AAJD]
- 3A Second Threaded Portion
- Thread Quantity Per Inch [CMLP]
- 14 Second Threaded Portion
- Thread Quantity Per Inch [CMLP]
- 16 First Threaded Portion
- Thread Series Designator [THSD]
- Un First Threaded Portion
- Thread Series Designator [THSD]
- Uns Second Threaded Portion
DLA Procurement Analysis 4820-00-633-5979
Management Data 4820-00-633-5979
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4820-00-633-5979
Freight Information 4820-00-633-5979
4820-00-633-5979 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-00-633-5979 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-00-633-5979 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4820-00-633-5979 is not classified as a special type of cargo when transported by water. 4820-00-633-5979 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-00-633-5979
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 4820-00-633-5979 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
