4820-00-618-9073
Seatless Valve
4820006189073 006189073 9111937 XT033F-30 XT03F10 XT03F20
A valve that controls flow by a cylindrical piston sliding vertically through packing rings separated by a metal cage having ports through which flow may proceed when the valve is open. Rotation of the threaded stem is used to regulate the position of the piston. See also VALVE, PLUG and VALVE, WEIGHTED CONTROL, PISTON. View more Seatless Valve
May 2023
4
Marketplace 4820-00-618-9073
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-618-9073 1+ Documents (More...)
/fsg-48/fsc-4820/us
United States (US) 4. 4820-00-618-9073 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 4820-00-618-9073 RQST NE Updated Every Day 4820-00-618-9073 RQST
Restrictions 4820-00-618-9073
4820-00-618-9073 is a Seatless Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-00-618-9073
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-00-618-9073
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Supplementary Collaborators:
- HD
- United States of America (ZZ)
Approved Sources 4820-00-618-9073
- Part Number
- Manufacturer
- Status
- 9111937
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- XT033F-30
- 62983 - Eaton Aerospace, Llc (Active)
- Secondary Buy
- Secondary Buy
- XT03F10
- 62983 - Eaton Aerospace, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- XT03F20
- 62983 - Eaton Aerospace, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4820-00-618-9073
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Material [MATT]
- Steel Overall

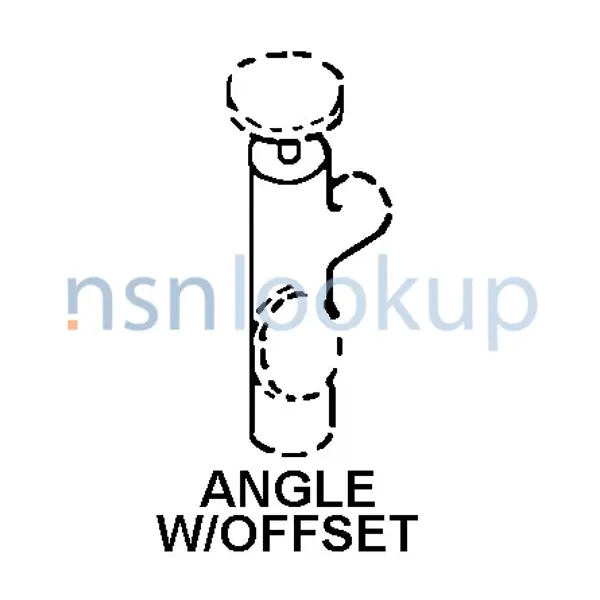

- Style Designator [STYL]
- Angle W/Offset
- Flow Control Device [ADQU]
- Piston
- Media For Which Designed [MEDA]
- Hydraulic Fluid, Silicate-Ester Base Single Response
- Maximum Operating Pressure [CQGM]
- 3000.0 Pounds Per Square Inch Single Response
- Valve Operation Method [AQLR]
- Manual
- Connection Type [AWLS]
- Threaded Internal Pipe All Ends
- Connection Style [AHNC]
- Plain,Optional End(Pipe) All Ends
- Thread Series Designator [THSD]
- Npt All Ends
- Nominal Thread Size [CQJX]
- 0.375 Inches All Ends
- Thread Quantity Per Inch [CMLP]
- 18 All Ends
- Thread Direction [AAJF]
- Right-Hand All Ends
- Stem Type [CRKP]
- Rising
- Bonnet Type [ADSR]
- Inside Screw
- Bonnet Attachment Method [ADST]
- Integral
- Features Provided [CBBL]
- Bonnet Packing
DLA Procurement Analysis 4820-00-618-9073
Management Data 4820-00-618-9073
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4820-00-618-9073
Freight Information 4820-00-618-9073
4820-00-618-9073 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-00-618-9073 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-00-618-9073 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4820-00-618-9073 is not classified as a special type of cargo when transported by water. 4820-00-618-9073 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4820-00-618-9073 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
