4820-00-516-1109
Lift-Check Valve
4820005161109 005161109 53270 ST7M375-4
A valve with a stem that may be mechanically actuated to two different positions by rotary or linear motion. In the first position, one side of the valve disk is located against the seat permitting movement of the disk in a manner that will allow a flow of fluid in one direction through the valve. In the second position, the valve disk is lifted from the seat to allow a flow of fluid in either direction through the valve. The valve disk may be spring loaded. See also VALVE, STOP-CHECK and VALVE, STOP-LIFT-CHECK. View more Lift-Check Valve
November 2023
10
Product Information 4820-00-516-1109
Manual Override Check Valve
Used on Boeing F/A-18E/F “Super Hornet” Strike Fighter
Eaton’s manual override check valve is used in the hydraulic system. The valve can be manually opened using a 90° rotary input command.
Marketplace 4820-00-516-1109
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-516-1109 5+ Documents (More...)

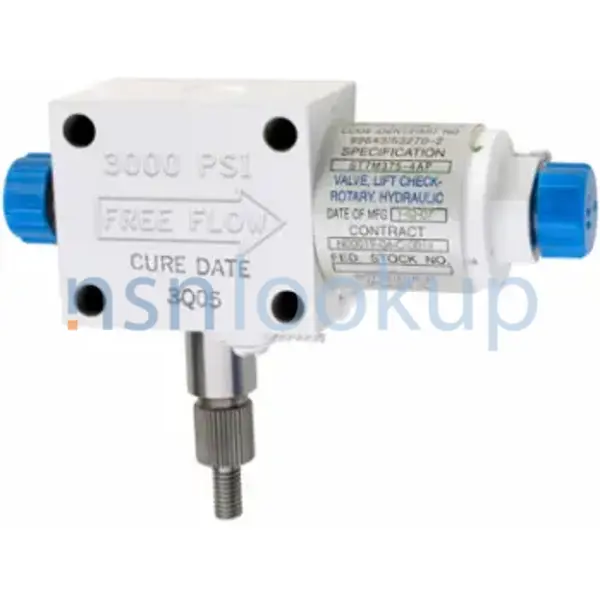

Photo 1/2 NSN 4820-00-516-1109 (Identification) 2/2 - - 1.
Marketplace 4820-00-516-1109 Need Help?
www.nsnlookup.com /fsg-49/fsc-4920/de 4920-12-376-4463 Electronic Systems Test Set 4920123764463 3984/53270
Lift-Check Valve 4820005161109 005161109 3981Circuit Card Assembly5998015203981 015203981 53270
Restrictions 4820-00-516-1109
4820-00-516-1109 is a Lift-Check Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-00-516-1109
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-00-516-1109
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 4820-00-516-1109
- Part Number
- Manufacturer
- Status
- 53270
- Manufacturer
- 99643 - Eaton Aerospace Llc (Active)
- Primary Buy
- Primary Buy
- ST7M375-4
- 91816 - Circor Aerospace, Inc. (Active)
- Secondary Buy
- Secondary Buy
- ST7M375-4
- 76301 - The Boeing Company (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 4820-00-516-1109
- Characteristic
- Specifications
- FIIG
- Specifications
- A530B0
- Bonnet Attachment Method [ADST]
- Integral
- Bonnet Type [ADSR]
- Inside Screw
- Connection Style [AHNC]
- Plain (Tube) All Ends
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Flow Control Device [ADQU]
- Disk
- Material [MATT]
- Aluminum Alloy Body
- Material [MATT]
- Aluminum Alloy Seat
- Maximum Operating Temp [AEHZ]
- 275.0 Deg Fahrenheit Single Response
- Maximum Operating Pressure [CQGM]
- 3000.0 Pounds Per Square Inch Single Response
- Media For Which Designed [MEDA]
- Hydraulic Fluid, Mineral Base Single Response
- Mounting Facility [AZGM]
- Threaded Fastener
- Mounting Position [BBJX]
- Horizontal Or Vertical
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.312 Inches All Ends
- Nominal Thread Size [CQJX]
- 0.500 Inches All Ends
- Seat Angle [CQRB]
- 12.5 Degrees All Ends
- Valve Operation Method [AQLR]
- Manual
- Style Designator [STYL]
- Straight Thru
- Surface Treatment Document And Classification [STDC]
- Ms 2400-3 Assn Std Single Treatment Response
- Surface Treatment [SFTT]
- Cadmium
- Thread Class [AAJD]
- 2A All Ends
- Thread Direction [AAJF]
- Right-Hand All Ends
- Thread Series Designator [THSD]
- Unf All Ends
Weapon Systems (WSDC) 4820-00-516-1109
DLA Procurement Analysis 4820-00-516-1109
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4820-00-516-1109
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4820-00-516-1109
Freight Information 4820-00-516-1109
4820-00-516-1109 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-00-516-1109 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-00-516-1109 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-00-516-1109 is not classified as a special type of cargo when transported by water. 4820-00-516-1109 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-00-516-1109
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- A-A-1051, Paperboard Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 4820-00-516-1109 12 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4AL16M0023
- 02 Nov 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM4A111G000707X9
- 28 Aug 2015
- Subscribe
- 36
- Subscribe
- Subscribe
- Subscribe
- SPM4A111G000707W5
- 05 Aug 2015
- Subscribe
- 7
- Subscribe
- Subscribe
- Subscribe
- SPE4A515V2936
- 17 Jun 2015
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPM4A111G000707S9
- 08 Jun 2015
- Subscribe
- 7
- Subscribe
- Subscribe
- Subscribe
- SPM4A111G000707R7
- 20 May 2015
- Subscribe
- 9
- Subscribe
- Subscribe
- Subscribe
- SPM4A111G000707P9
- 20 Apr 2015
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPM4A111G000706M401
- 19 Mar 2015
- Subscribe
- 6
- Subscribe
- Subscribe
- Subscribe
- SPE4A514V3005
- 16 Jul 2014
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE4A514V2871
- 26 Jun 2014
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE4A413VL006
- 19 Sep 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE4A513V2258
- 05 Sep 2013
- Subscribe
- 8
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4820-00-516-1109 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
