4820-00-293-7645
Expansion Valve
4820002937645 002937645 MFE20
A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated. View more Expansion Valve
January 2023
9
Marketplace 4820-00-293-7645
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-293-7645 3+ Documents (More...)
MFE20 VALVE,EXPANSION 18 EA NS Request Quotation 4820-00-293-7645 VALVE,EXPANSION 6 EA NS Request Quotation
Updated Every Day 4820-00-293-7645 RQST NE Updated Every Day 4820-00-293-7645 RQST Updated Every Day
www.nsnlookup.com /fsg-48/fsc-4820/ca 4820-21-002- https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-00-293-7645
Expansion Valve 4820002937645 002937645 Every Day 4820-00-293-7645 RQST Updated Every Day https
Expansion Valve 4820002937645 002937645 Upgrade for $1 a day Upgrade your Account Upgrade 4820-
00-293-7645Expansion Valve4820002937645 002937645 MFE20 Identification) 1/3 NSN 4820-00-293-7645 (Identification
Restrictions 4820-00-293-7645
4820-00-293-7645 is a Expansion Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-00-293-7645
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-00-293-7645
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4820-00-293-7645
- Part Number
- Manufacturer
- Status
- MFE20
- Manufacturer
- 78462 - Parker-Hannifin Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 4820-00-293-7645
- Characteristic
- Specifications
- FIIG
- Specifications
- A07100
- Body Style [AAQL]
- Straight Thru
- Face To Face Distance [ADQL]
- 5.500 Inches Nominal
- Body Material [AAFZ]
- Steel
- Seat Material [ACSH]
- Steel, Corrosion Resisting
- Flow Control Device [ADQU]
- Disk, Bottom Guided
- Flow Control Device Material [ADQV]
- Steel, Corrosion Resisting
- Stem Material [ABEP]
- Steel, Corrosion Resisting
- End Connection Quantity [ADQZ]
- 2
- First End Connection Type [ACKM]
- Plain Face Flange
- First End Style Designator [ACKN]
- Plain

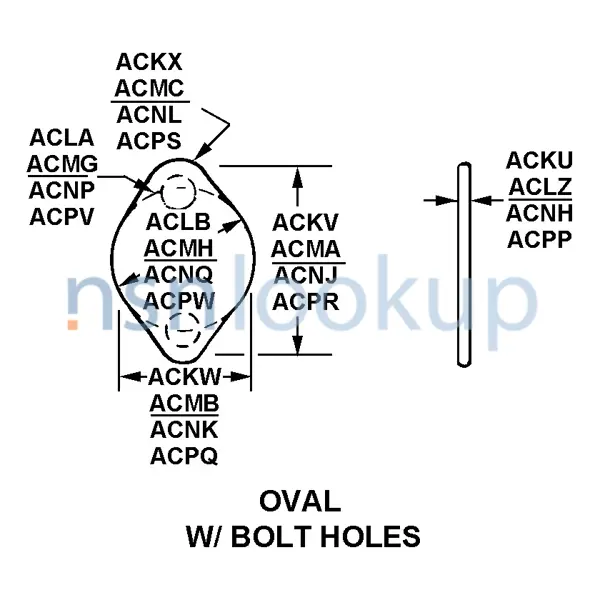

- First End Flange Shape Style [ACKT]
- Oval W/ Bolt Holes
- First End Bolt Hole Quantity [ACKZ]
- 2
- First End Flange Thickness [ACKU]
- 0.375 Inches Minimum
- First End Flange Length [ACKV]
- 3.625 Inches Nominal
- First End Flange Width [ACKW]
- 3.000 Inches Nominal
- First End Bolt Hole Diameter [ACLA]
- 0.500 Inches Nominal
- First End Bolt Circle Diameter [ACLB]
- 2.688 Inches Nominal
- Second End Relationship With First End [ACLR]
- Identical
- Media For Which Designed [ACKL]
- Refrigerant 12
- Valve Expansion Control Type [AFKK]
- Thermostatic
- Valve Evaporator Temp Range Designation [AFKL]
- High
- Valve Pressure Limiting Device [AFKM]
- Not Included
- Refrigeration Capacity In Btu Per Hour [AGUB]
- 240.0
- Bulb Media Type [AFKQ]
- Refrigerant 12
- Capillary Tube Length [AEVT]
- 60.000 Inches Nominal
- Bulb Mounting Method [AFKR]
- Clamp
- Bulb Length [AEVU]
- 4.000 Inches Nominal
- Bulb Diameter [AEVV]
- 0.750 Inches Nominal
- Valve Equalizer Location [AFKU]
- External
- Valve Equalizer Connection Type [AFKV]
- Flared Tube
- Valve Equalizer Connection Diameter [AFKW]
- 0.250 Inches Nominal
Similar Supply Items to 4820-00-293-7645
Freight Information 4820-00-293-7645
4820-00-293-7645 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 188340. A Sub NMFC of X. It has a NMFC Description of VALVES THEMOSTATIC NOI/THEMOSTATS. 4820-00-293-7645 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 33230 which rates the freight between FCL and LCL. 4820-00-293-7645 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4820-00-293-7645 is not classified as a special type of cargo when transported by water. 4820-00-293-7645 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-00-293-7645
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
