4820-00-289-2499

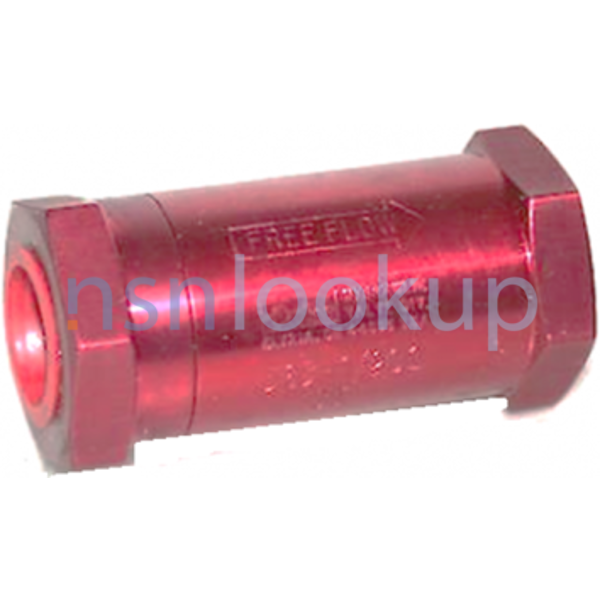

Check Valve
4820002892499 002892499 MIL-DTL-7899 8CB230 MS28882B-8 MIL-V-7899 1-1750-85 593-8D63 1111-517713 K1377-8 2-1794-1 12310862
A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design. View more Check Valve
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
October 2025
October 2025
NATO Update Count
37
37
NATO Data Quality
Marketplace 4820-00-289-2499
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-289-2499 5+ Documents (More...)
MIL-DTL-7899 8CB230 MS28882B-8 MIL-V-7899 1-1750-85 593-8D63 1111-517713 K1377-8 2-1794-1 12310862 A
to View Vendor Details... 4820-00-289-2499 VALVE,CHECK 2 EA NS Request Quotation 8CB230 VALVE,CHECK
MIL-V-7899 VALVE, https//www.nsnlookup.com MIL-DTL-7899 VALVE https//www.nsnlookup.com /fsg-48/fsc-4820
to View Vendor Details... 4820-00-289-2499 VALVE,CHECK 2 EA NS Request Quotation 8CB230 VALVE,CHECK
MIL-V-7899 VALVE, https//www.nsnlookup.com MIL-DTL-7899 VALVE https//www.nsnlookup.com /fsg-48/fsc-4820
Upgrade for $1 a day Upgrade your Account Upgrade 4820-01-607-3533Check Valve4820016073533 016073533 8CB230
www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-607-3533 Check Valve 4820016073533 016073533,8CB230 8CB230
Check Valve 4820002892499 002892499 day Upgrade your Account Upgrade 4820-00-289-2499Check Valve4820002892499
www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-607-3533 Check Valve 4820016073533 016073533,8CB230 8CB230
Check Valve 4820002892499 002892499 day Upgrade your Account Upgrade 4820-00-289-2499Check Valve4820002892499
VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-7899 , 012152135 , MIL-V-7899 / fsg-48/fsc MIL-DTL
MIL-V-7899 VALVE https//www.nsnlookup.com https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-014-5567
-00-013- 218 -4607 Check Valve 4820012184607 012184607 MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation
MIL-V-7899 VALVE https//www.nsnlookup.com https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-014-5567
-00-013- 218 -4607 Check Valve 4820012184607 012184607 MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation
VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-7899 https//www.nsnlookup.com / fsg-48/fsc MIL-V-7899
VALVE, 012152135 , MIL-V-7899 /fsg-48/ MIL-DTL-7899 VALVE,CHECK 1 EA NS Request Quotation MS28883
Check Valve 4820002892499 002892499 Quotation MIL-DTL-7899 https//www.nsnlookup.com / fsg-48/fsc
VALVE, 012152135 , MIL-V-7899 /fsg-48/ MIL-DTL-7899 VALVE,CHECK 1 EA NS Request Quotation MS28883
Check Valve 4820002892499 002892499 Quotation MIL-DTL-7899 https//www.nsnlookup.com / fsg-48/fsc
MS28884A-8 MIL-V-7899 A valve permitting flow in one direction only.
https//www.nsnlookup.com / fsg-48/fsc MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-7899
VALVE,CHECK /www.nsnlookup.com MIL-DTL-7899 VALVE,CHECK 1 EA NS Request Quotation MS28883 MIL-V-
https//www.nsnlookup.com / fsg-48/fsc MIL-V-7899 VALVE,CHECK 5 EA NS Request Quotation MIL-DTL-7899
VALVE,CHECK /www.nsnlookup.com MIL-DTL-7899 VALVE,CHECK 1 EA NS Request Quotation MS28883 MIL-V-
Restrictions 4820-00-289-2499
4820-00-289-2499 is a Check Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-00-289-2499
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-00-289-2499
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4820-00-289-2499
- Part Number
- Manufacturer
- Status
- MS28882B-8
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-7899
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 8CB230
- 82829 - Allen Aircraft Products Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MIL-V-7899
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1-1750-85
- 86768 - Teledyne Industries Inc Teledyne (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 593-8D63
- 86768 - Teledyne Industries Inc Teledyne (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1111-517713
- 92003 - Parker Hannifin Corporation Div (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1-1750-85
- 45681 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1-1750-85
- 92003 - Parker Hannifin Corporation Div (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1111-517713
- 45681 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- K1377-8
- 55469 - Essex Industries, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2-1794-1
- 86768 - Teledyne Industries Inc Teledyne (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 12310862
- 19207 - U S Army Tank Automotive Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4820002892499
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 4820-00-289-2499
- Characteristic
- Specifications
- FIIG
- Specifications
- A530B0
- Connection Style [AHNC]
- Gasket Seal (Boss) All Ends
- Connection Type [AWLS]
- Threaded Internal Boss All Ends
- Disk Loading Method [ADSU]
- Spring
- Flow Control Device [ADQU]
- Disk
- Material Document And Classification [MDCL]
- Qq-A-225/5,Alloy 2017 Fed Spec Single Material Response Body
- Material Document And Classification [MDCL]
- Qq-A-225/5,Alloy 2017 Fed Spec Single Material Response Flow Control Device
- Material [MATT]
- Aluminum Alloy 2017 Body
- Material [MATT]
- Aluminum Alloy 2017 Flow Control Device
- Material [MATT]
- Aluminum Alloy Seat
- Maximum Operating Pressure [CQGM]
- 75.0 Pounds Per Square Inch Single Response
- Maximum Operating Temp [AEHZ]
- 1565.0 Deg Fahrenheit Single Response
- Media For Which Designed [MEDA]
- Fuel/Oil, Hydrocarbon Single Response
- Mounting Position [BBJX]
- Vertical
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.500 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.750 Inches All Ends
- Valve Operation Method [AQLR]
- Automatic
- Style Designator [STYL]
- Straight Thru
- Surface Treatment [SFTT]
- Anodize
- Thread Class [AAJD]
- 3B All Ends
- Thread Direction [AAJF]
- Right-Hand All Ends
- Thread Series Designator [THSD]
- Unjf All Ends
Weapon Systems (WSDC) 4820-00-289-2499
DLA Procurement Analysis 4820-00-289-2499
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4820-00-289-2499
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Feb 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4820-00-289-2499
Freight Information 4820-00-289-2499
4820-00-289-2499 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-00-289-2499 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-00-289-2499 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4820-00-289-2499 is not classified as a special type of cargo when transported by water. 4820-00-289-2499 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-00-289-2499
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4820-00-289-2499 1 Records
Contracting Technical Data File (CTDF) 4820-00-289-2499 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
