4820-00-225-0934

Fluid Pressure Regulating Valve

4820002250934 002250934 103451

A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft. View more Fluid Pressure Regulating Valve

Managed by United States

NSN Created on 1 Jan 1961

Data Last Changed
May 2023

NATO Update Count
22

NATO Data Quality

AAQL Style A16 for 4820-00-225-0934 1/1 — NSN 4820-00-225-0934 (Identification) 1/1

Marketplace 4820-00-225-0934

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

103451 VALVE,REGULATING,FLUID PRESSURE 27 EA NS

Subscribe to View Vendor Details...

103451 VALVE,REGULATING,FLUID PRESSURE 1 EA NS

Updated Every Day

4820-00-225-0934 RQST NE

Updated Every Day

4820-00-225-0934 RQST

Updated Every Day

4820-00-225-0934 RQST NE

Restrictions 4820-00-225-0934

IUID Required

4820-00-225-0934 is a Fluid Pressure Regulating Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 4820-00-225-0934

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4820-00-225-0934

US Air Force (FXX4)
Effective Date:: 8 Mar 2010; AMC 3 AMSC D AMSC F IMC E IMCACTY SX DSOR FT

US Air Force (FXX5)
Effective Date:: 1 Jan 2015; AMC 3 AMSC D IMC T

US Navy (N9JX)
Effective Date:: 1 Jan 2015
Supplementary Collaborators:: KE
Supplementary Receivers:: GG; AMC 3 AMSC D

US Navy (NAXS)
Effective Date:: 8 Mar 2010
Supplementary Receivers:: GG; AMC 3 AMSC D AMSC 5 IMC E IMCACTY KE DSOR FT

Belgium (ZB01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 2005

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Approved Sources 4820-00-225-0934

Part Number
Manufacturer
Status
103451: 01359 - Triumph Thermal Systems - Maryland, (Active); Original Design; RNCC 3 RNVC 9 DAC X
103451: 07KQ5 - Defense & Development Enterprises (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 4820-00-225-0934

Characteristic
Specifications
FIIG: A21100
End Connection Quantity [ADQZ]: 2

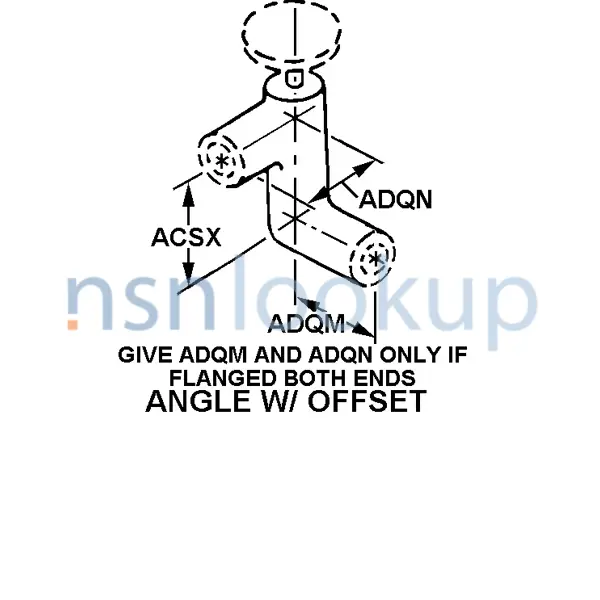

Body Style [AAQL]: Angle W/Offset
Maximum Inlet Pressure Rating [AEVZ]: 210.0 Pounds Per Square Inch
Outlet Pressure Accuracy Rating [AEWB]: 5.000 Pounds Per Square Inch
Outlet Pressure Setting [AEWA]: 50.0 Pounds Per Square Inch
Regulation Type [AEVN]: Automatic Single Stage
Valve Loading Method [AEVR]: Spring
Temp Rating [AZKQ]: -65.0 Deg Fahrenheit Minimum And 160.0 Deg Fahrenheit Maximum
