4820-00-202-7656
Globe Valve
4820002027656 002027656 D26986
A valve with one inlet and one outlet connection with outlet flow parallel to inlet flow. The flow is controlled by the action of a stem which lifts the disk perpendicularly off the center axis of its seat. The stem is at a 90 degree (1.5708 radians) angle to axis of flow. Excludes VALVE, STOP-CHECK; COCK, SHUTOFF, SCREW STEM; and VALVE, SOLENOID. View more Globe Valve
May 2023
3
Marketplace 4820-00-202-7656
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-202-7656 5+ Documents (More...)
Globe Valve 4820002027656002027656,D26986 D26986 A valve with one inlet and one outlet connection with
4820-00-202-7656 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-00-202-7656
https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-00-202-7656 Globe Valve 4820002027656 002027656,D26986
https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-00-202-7656 Globe Valve 4820002027656 002027656,D26986
Globe Valve 4820002027656 002027656,D26986 www.nsnlookup.com /fsg-48/fsc-4820/us 4820-00-202-7656
Upgrade for $1 a day Upgrade your Account Upgrade 4820-01-198 -3149Valve Disk4820011983149 011983149 D26986
-R PIECE 4 MONEL GLB 1IN D26986-B PIECE 4 MONEL GLB 1IN D26986-R An item usually metallic, threaded or
Globe Valve 4820002027656 002027656,D26986 -R PIECE 4 MONEL GLB 1IN D26986-B PIECE 4 MONEL GLB
Globe Valve 4820002027656 002027656,D26986 198 -3149Valve Disk4820011983149 011983149 D26986 https
Globe Valve 4820002027656002027656,D26986 198-3149Valve Disk4820011983149 https//www.nsnlookup.com /
Restrictions 4820-00-202-7656
4820-00-202-7656 is a Globe Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-00-202-7656
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-00-202-7656
- National Security Agency (DGX1)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- DAX1
- Supplementary Receivers:
- AX
Approved Sources 4820-00-202-7656
- Part Number
- Manufacturer
- Status
- D26986
- Manufacturer
- 48422 - William Powell Company, The (Active)
- Incomplete Reference
- Incomplete Reference
Datasheet 4820-00-202-7656
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Material [MATT]
- Steel Corrosion Resisting Body
- Material [MATT]
- Steel Corrosion Resisting Seat
- Material [MATT]
- Steel Corrosion Resisting Stem

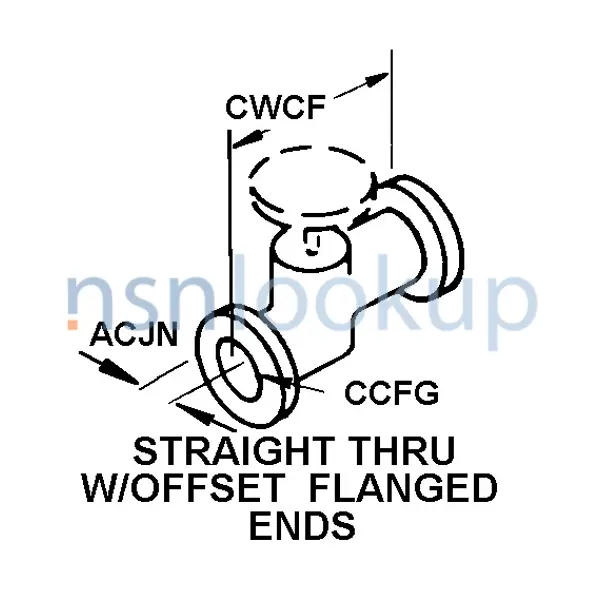

- Style Designator [STYL]
- Straight Thru W/Offset Flanged Ends
- Face To Face Distance [CWCF]
- 7.250 Inches
- Offset Distance [ACJN]
- 2.875 Inches
- Valve Size [CCFG]
- 0.750 Inches
- Flow Control Device [ADQU]
- Disk
- Valve Operation Method [AQLR]
- Manual
- Connection Type [AWLS]
- Flange 1St End
- Flange Shape [ARKN]
- Round With Holes 1St End
- Nominal Outside Diameter [CWCD]
- 3.937 Inches 1St End
- Nominal Thickness [CWCK]
- 0.687 Inches 1St End
- Nominal Length [AKGG]
- 4.750 Inches 1St End
- Nominal Width [AKGF]
- 2.125 Inches 1St End
- Bolt Hole Quantity [AECS]
- 4 1St End
- Bolt Hole Nominal Diameter [CWCQ]
- 0.562 Inches 1St End
- Bolt Circle Nominal Diameter [CWCT]
- 2.687 Inches 1St End
- Flange Face Design [CWDF]
- Plain 1St End
- Bonnet Type [ADSR]
- Outside Screw-Yoke
- Bonnet Attachment Method [ADST]
- Threaded
DLA Procurement Analysis 4820-00-202-7656
Management Data 4820-00-202-7656
Similar Supply Items to 4820-00-202-7656
Freight Information 4820-00-202-7656
4820-00-202-7656 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-00-202-7656 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-00-202-7656 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-00-202-7656 is not classified as a special type of cargo when transported by water. 4820-00-202-7656 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-00-202-7656
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 4820-00-202-7656 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
