4820-00-169-0423
Shuttle Valve
4820001690423 001690423 CY00122-1 608V100
A valve having one outlet and two inlets that are usually opposite each other. It has a fluid pressure operated pistonlike item, called a shuttle, that controls either inlet. It is commonly used to provide an emergency passage for fluid in an aircraft hydraulic or pneumatic system in case of loss of pressure in the normal service lines. View more Shuttle Valve
May 2023
12
Marketplace 4820-00-169-0423
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-169-0423 1+ Documents (More...)
BUY NE FedMall Updated Every Day 4820-00-169-0423 RQST NE Updated Every Day 4820-00-169-0423 RQST
Updated Every Day 4820-00-169-0423 RQST NE Related Documents 4820-00-169-0423 1+ Documents ( More...
Restrictions 4820-00-169-0423
4820-00-169-0423 is a Shuttle Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-00-169-0423
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-00-169-0423
- US Air Force (FXGC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- FXAX
Approved Sources 4820-00-169-0423
- Part Number
- Manufacturer
- Status
- 608V100
- Manufacturer
- 00672 - Grimes Aerospace Co (Obsolete)
- Original Design
- Original Design
- CY00122-1
- 81755 - Lockheed Martin Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 4820-00-169-0423
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Connection Style [AHNC]
- Gasket Seal(Boss) 1St End
- Connection Type [AWLS]
- Threaded Internal Tube 1St End
- First Connection Face To Centerline Distance [CWCL]
- 1.150 Inches
- Flow Control Device [ADQU]
- Ball
- Material [MATT]
- Steel Corrosion Resisting Flow Control Device
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.312 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.500 Inches 1St End
- Seat Angle [CQRB]
- 120.0 Degrees 1St End
- Second Connection Face To Centerline Distance [CWCR]
- 0.850 Inches
- Valve Operation Method [AQLR]
- Automatic
- Style Designator [STYL]

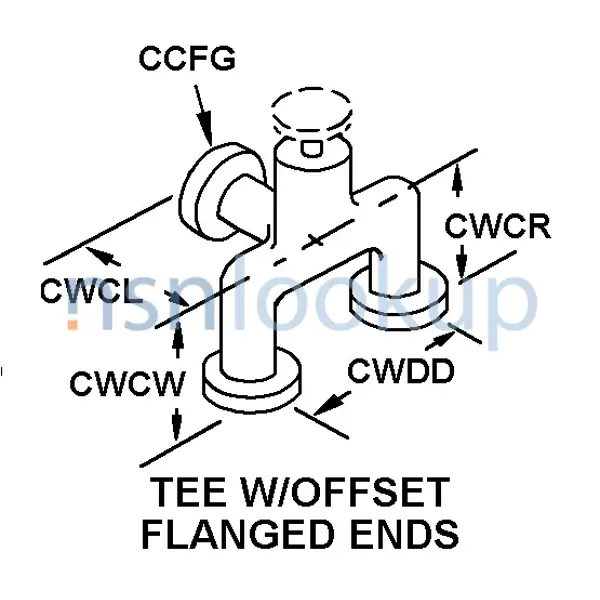

- Tee W/Offset Flanged Ends
- Thread Class [AAJD]
- 3B 1St End
- Third Connection Face To Centerline Distance [CWCW]
- 0.850 Inches
- Thread Direction [AAJF]
- Right-Hand 1St End
- Thread Quantity Per Inch [CMLP]
- 20 1St End
- Thread Series Designator [THSD]
- Unjf 1St End
DLA Procurement Analysis 4820-00-169-0423
Management Data 4820-00-169-0423
Similar Supply Items to 4820-00-169-0423
Freight Information 4820-00-169-0423
4820-00-169-0423 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127220. A Sub NMFC of X. It has a NMFC Description of PRESSURE REG/RED/RELIEF VALVES NOI. 4820-00-169-0423 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 4820-00-169-0423 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 64490 which rates the freight between FCL and LCL. 4820-00-169-0423 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-00-169-0423 is not classified as a special type of cargo when transported by water. 4820-00-169-0423 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
