4820-00-105-8277
Pneumatic Tank Valve
4820001058277 001058277 40427 VUS3-46 D21483
A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil. View more Pneumatic Tank Valve
January 2023
23
Marketplace 4820-00-105-8277
Request a Quotation from participating marketplace vendors
Related Documents 4820-00-105-8277 5+ Documents (More...)
Updated Every Day 40427 RQST NE Updated Every Day VUS3-46 RQST NE Updated Every Day 4820-00-105-8277
(Identification) 2/3 NSN 4820-00-105-8277 (Identification Updated Every Day 40427 RQST NE Updated
in your web browser . 4730-14-420-5016Et Valve https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-00-105-8277
Pneumatic Tank Valve 4820001058277 001058277 day Upgrade your Account Upgrade 4820-00-105-8277Pneumatic
https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-00-105-8277 Pneumatic Tank Valve 4820001058277 001058277
$1 a day Upgrade your Account Upgrade 4820-00-105-8277Pneumatic Tank Valve4820001058277 001058277 40427
Breather Assembly 4930013072721013072721 8811Cold Weather Cap8415661208811 661208811 V4-40427 https/
https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-00-105-8277 Pneumatic Tank Valve 4820001058277 001058277
fsc-5310/fr 5310-14-235-1597 Key Washer 5310142351597 142351597,40427 Cap8415661208811 661208811V4-40427
055-2590 Flat Washer 5310150552590 150552590,940429A 8811Cold Weather Cap8415661208811 661208811V4-40427
Restrictions 4820-00-105-8277
4820-00-105-8277 is a Pneumatic Tank Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4820-00-105-8277
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-00-105-8277
- Spain (YB01)
- Effective Date:
- 1 Sep 2003
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Belgium (ZB01)
- Effective Date:
- 1 Nov 2006
- France (ZF01)
- Effective Date:
- 1 May 2015
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 2010
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4820-00-105-8277
- Part Number
- Manufacturer
- Status
- 40427
- Manufacturer
- 07295 - Spx Corporation Dba O T C Tool & (Obsolete)
- Original Design
- Original Design
- VUS3-46
- 07295 - Spx Corporation Dba O T C Tool & (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- D21483
- 53047 - Rheem Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4820-00-105-8277
- Characteristic
- Specifications
- FIIG
- Specifications
- A07100
- End Connection Quantity [ADQZ]
- 2
- Body Material [AAFZ]
- Brass

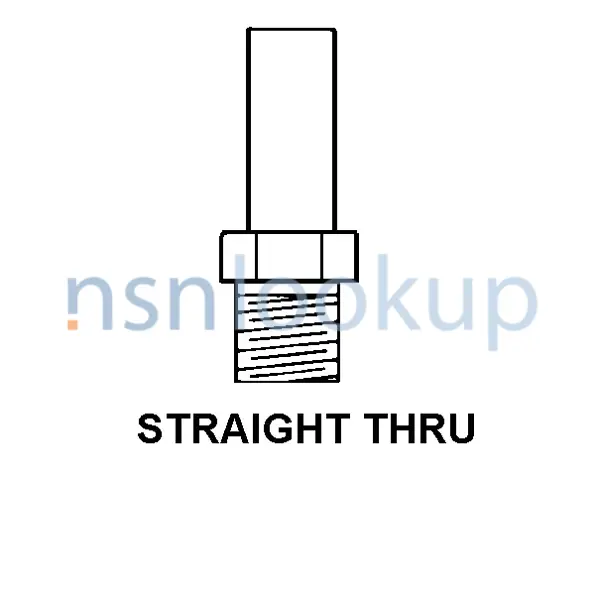

- Body Style [AAQL]
- Straight Thru
- Commercial Core Length Designator [AFLB]
- Standard
- Commercial Spring Tension Rating [AFLD]
- Not Rated
- Core Environmental Protection [AFLA]
- Oil Resistant
- Furnished Items [ABFF]
- Cap And Chain
- First End Connection Type [ACKM]
- Unthreaded Internal Tube
- First End Outside Diameter Tube Accommodated [ACLH]
- 0.375 Inches Nominal
- First End Style Designator [ACKN]
- Plain
- Flow Control Device Material [ADQV]
- Steel And Rubber
- Flow Control Device [ADQU]
- Core
- Media For Which Designed [ACKL]
- Air
- Second End Connection Type [ACLS]
- Threaded External Tube
- Seat Material [ACSH]
- Brass
- Second End Style Designator [ACLT]
- Gasket Seal
- Second End Thread Class [ACMR]
- 2A
- Second End Thread Direction [ACMS]
- Right-Hand
- Second End Outside Diameter Tube Accommodated [ACMP]
- 0.250 Inches Nominal
- Second End Relationship With First End [ACLR]
- Not Identical
- Spring Material [AFLC]
- Steel
- Stem Material [ABEP]
- Steel
- Temp Rating [ABJH]
- 160.0 Deg Fahrenheit
NATO Stock Numbers Related to 4820-00-105-8277
Freight Information 4820-00-105-8277
4820-00-105-8277 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127220. A Sub NMFC of X. It has a NMFC Description of PRESSURE REG/RED/RELIEF VALVES NOI. 4820-00-105-8277 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 4820-00-105-8277 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 64490 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-00-105-8277 is not classified as a special type of cargo when transported by water. 4820-00-105-8277 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
