4810-01-499-4558

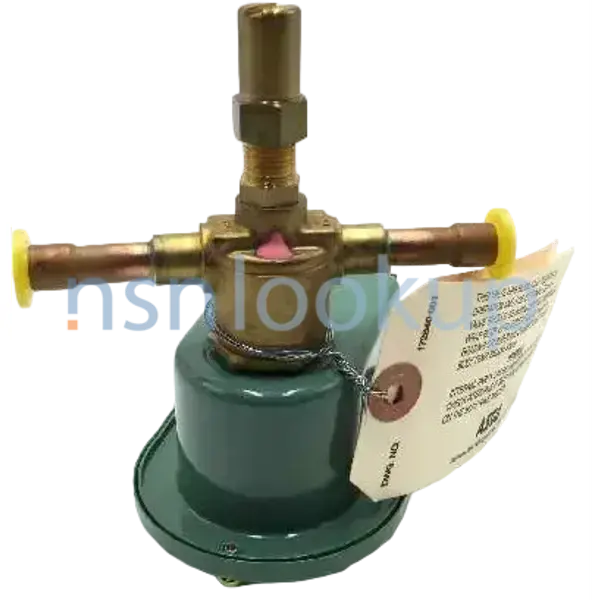

Solenoid Valve
4810014994558 014994558 AV218671-1 R134 AV218671-1 120V/60HZ 218671-1 120V/60HZ AV21867
A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY. View more Solenoid Valve
November 2025
2
Marketplace 4810-01-499-4558
Request a Quotation from participating marketplace vendors
Related Documents 4810-01-499-4558 5+ Documents (More...)
/fsg-48/fsc-4810/us
BUY NE FedMall Updated Every Day 4810-01-499-4558 RQST NE Updated Every Day 4810-01-499-4558 RQST
Updated Every Day 4810-01-499-4558 RQST NE Related Documents 4810-01-499-4558 4+ Documents ( More...
Solenoid Valve 4810014994558 014994558 Documents 4810-01-499-4558 4+ Documents ( More... https/
Solenoid Valve 4810014994558 014994558 BUY NE FedMall Updated Every Day 4810-01-499-4558 RQST NE
Updated Every Day 4810-01-499-4558 RQST Updated Every Day 4810-01-499-4558 RQST NE Related Documents
/fsg-48/fsc-4810/us
https//www.nsnlookup.com /fsg-48/fsc-4810/us 4810-01-319-4959 Solenoid Valve 4810013194959013194959 AV21867
RQST NE Updated Every Day 4810-01-319-4959 RQST https//www.nsnlookup.com /fsg-48/fsc-4810/us 4810-01-499-4558
/fsg-48/fsc-4810/us
Restrictions 4810-01-499-4558
4810-01-499-4558 is a Solenoid Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4810-01-499-4558
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4810-01-499-4558
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 4810-01-499-4558
- Part Number
- Manufacturer
- Status
- AV218671-1 120V/60HZ
- Manufacturer
- 04845 - Automatic Switch Company (Active)
- Primary Buy
- Primary Buy
- 218671-1 120V/60HZ
- 04845 - Automatic Switch Company (Active)
- Secondary Buy
- Secondary Buy
- AV218671-1 R134
- 04845 - Automatic Switch Company (Active)
- Advisory Reference
- Advisory Reference
- AV21867
- 04845 - Automatic Switch Company (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4810-01-499-4558
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Connection Style [AHNC]
- Socket (Tube) All Ends
- Connection Type [AWLS]
- Unthreaded Internal Tube All Ends
- Current Rating In Amps [AMPS]
- 0.210
- Flow Control Device Normal Operation Position [ADSK]
- Closed
- Flow Control Device [ADQU]
- Poppet
- Frequency In Hertz [FREQ]
- 60.0
- Material [MATT]
- Copper Alloy Body
- Material [MATT]
- Plastic Polytetrafluoroethylene Flow Control Device
- Maximum Operating Pressure [CQGM]
- 300.0 Pounds Per Square Inch Single Response
- Mounting Position [BBJX]
- Horizontal Or Vertical
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.375 Inches All Ends
- Part Name Assigned By Controlling Agency [CXCY]
- Solenoid Valve
- Phase [FAAZ]
- Single
- Special Features [FEAT]
- Brass Body; Renewable Cres Disk; Renewable Polytetrafluoroethylene Seat; Solder Or Brazed Tubing (Swaged) End Connections; End To End/Face To Face 4.31 In.; R134 Refrigerant; One-Way Flow Direction; 0.21 Amps Continuous Duty; Level Iii Valve, Do Not Install L1/Ss Service
- Valve Operation Method [AQLR]
- Solenoid
- Voltage In Volts And Current Type [CSBH]
- 120.0 Ac
- Style Designator [STYL]
- Straight Thru Note: To Be Used For Valve Bodies Of Separable Sections.
Weapon Systems (WSDC) 4810-01-499-4558
DLA Procurement Analysis 4810-01-499-4558
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4810-01-499-4558
Navy
- Cognizance:
- 3B
Similar Supply Items to 4810-01-499-4558
Freight Information 4810-01-499-4558
4810-01-499-4558 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4810-01-499-4558 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4810-01-499-4558 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4810-01-499-4558 is not classified as a special type of cargo when transported by water. 4810-01-499-4558 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
