4810-01-140-0675
Solenoid Valve
4810011400675 011400675 MIL-V-16556 1S-5417 AND 1S- 1S-5008 AND 1S- 141-229AS 1S-5007 141-229S 1S-5007
A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY. View more Solenoid Valve
November 2023
3
Marketplace 4810-01-140-0675
Request a Quotation from participating marketplace vendors
Related Documents 4810-01-140-0675 5+ Documents (More...)
/fsg-48/fsc-4810/us
MIL-V-16556 VALVE,SOLENOID 1 EA NS Request Quotation FedMall Updated Every 15 Minutes 4810-01-140-0675
165561S-5417 AND 1S- 1S-5008 AND 1S- 141-229AS 1S-5007141-229S 1S-5007 A valve having two or MIL-V-16556
-5417 AND 1S- 1S-5008 AND 1S- 141-229AS 1S-5007 141 0675Solenoid Valve4810011400675 011400675MIL-V-165561S
-5417 AND 1S- 1S-5008 AND 1S- 141-229AS 1S-5007 141 Packing Retainer 5330123432630123432630 ) Primary
/fsg-48/fsc-4810/us
-5417 AND 1S- 1S-5008 AND 1S- 141-229AS 1S-5007 141-229S Solenoid Valve 4810012303521012303521 -230-3521
https//www.nsnlookup.com 0675Solenoid Valve4810011400675 011400675MIL-V-165561S -5417 AND 1S- 1S-5008 AND 1S
Solenoid Valve 4810011400675 011400675 0675Solenoid Valve4810011400675 011400675 MIL-V-16556 1S
-5417 AND 1S- 1S-5008 AND 1S- 141-229AS 1S-5007 141 Simulateur Radar Au 4935142263992142263992 -1416117
/fsg-48/fsc-4810/us
Solenoid Valve 4810011400675 011400675 0675Solenoid Valve4810011400675 011400675 MIL-V-16556 1S
-5417 AND 1S- 1S-5008 AND 1S- 141-229AS 1S-5007 141-229S 0675Solenoid Valve4810011400675 011400675MIL-V
Restrictions 4810-01-140-0675
4810-01-140-0675 is a Solenoid Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4810-01-140-0675
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4810-01-140-0675
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 4810-01-140-0675
- Part Number
- Manufacturer
- Status
- MIL-V-16556
- Manufacturer
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 141-229AS 1S-5007
- 52406 - Ruggles-Klingemann Mfg Co (Active)
- Secondary Buy
- Secondary Buy
- 141-229S 1S-5007
- 52406 - Ruggles-Klingemann Mfg Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1S-5417 AND 1S-
- 52406 - Ruggles-Klingemann Mfg Co (Active)
- Advisory Reference
- Advisory Reference
- 1S-5008 AND 1S-
- 52406 - Ruggles-Klingemann Mfg Co (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4810-01-140-0675
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Bolt Hole Nominal Diameter [CWCQ]
- 0.562 Inches All Ends
- Bolt Hole Quantity [AECS]
- 6 All Ends
- Bolt Circle Nominal Diameter [CWCT]
- 4.438 Inches All Ends
- Connection Type [AWLS]
- Flange All Ends
- Face To Face Distance [CWCF]
- 8.000 Inches
- First Connection Face To Centerline Distance [CWCL]
- 4.000 Inches
- Flange Face Design [CWDF]
- Plain All Ends
- Flange Shape [ARKN]
- Round With Holes All Ends
- Flow Control Device Normal Operation Position [ADSK]
- Universal
- Flow Control Device [ADQU]
- Poppet
- Frequency In Hertz [FREQ]
- 60.0
- Material Document And Classification [MDCL]
- Qq-C-390,Alloy D4 Fed Spec Single Material Response Body
- Material Document And Classification [MDCL]
- Qq-N-288,Comp A Fed Spec Single Material Response Flow Control Device
- Material Document And Classification [MDCL]
- Qq-N-281 Fed Spec Single Material Response Stem
- Material [MATT]
- Copper Alloy 922 Body
- Material [MATT]
- Nickel Alloy Flow Control Device
- Material [MATT]
- Nickel Alloy 400 Stem Or Nickel Alloy R-405 Stem
- Maximum Operating Pressure [CQGM]
- 65.0 Pounds Per Square Inch Single Response
- Media For Which Designed [MEDA]
- Water, Fresh Single Response
- Mounting Position [BBJX]
- Horizontal
- Nominal Outside Diameter [CWCD]
- 5.562 Inches All Ends
- Nominal Thickness [CWCK]
- 0.438 Inches All Ends
- Offset Distance [ACJN]
- 7.500 Inches
- Valve Operation Method [AQLR]
- Solenoid
- Valve Size [CCFG]
- 2.000 Inches
- Voltage In Volts And Current Type [CSBH]
- 115.0 Ac
- Specification/Standard Data [ZZZK]
- 81349-Mil-V-16556 Government Specification

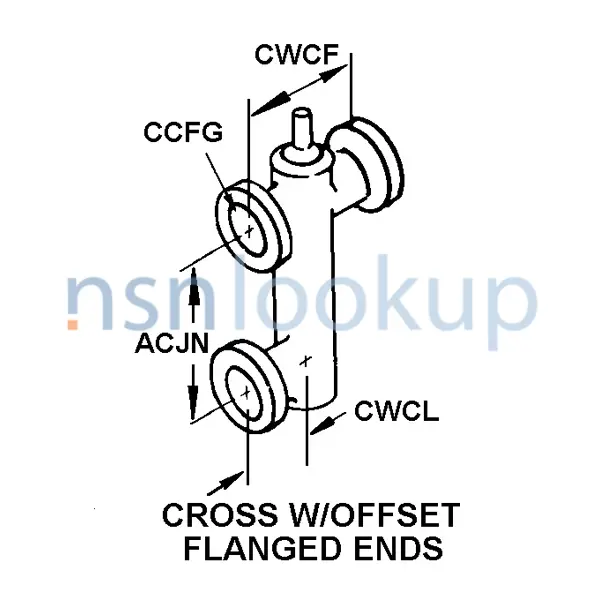

- Style Designator [STYL]
- Cross W/Offset Flanged Ends
Weapon Systems (WSDC) 4810-01-140-0675
DLA Procurement Analysis 4810-01-140-0675
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4810-01-140-0675
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4810-01-140-0675
Freight Information 4810-01-140-0675
4810-01-140-0675 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4810-01-140-0675 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4810-01-140-0675 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4810-01-140-0675 is not classified as a special type of cargo when transported by water. 4810-01-140-0675 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
