4810-00-613-6894

Hydraulic Servovalve

4810006136894 006136894 MODEL 15-170D 1015-613-6894 2530006136894 28130978-101 11615328

An item which controls both the direction and the rate of flow of fluid in direct response to a primary control of comparatively low level force. It is used for positioning a linear actuating cylinder assembly, and for controlling the rate of travel of the piston. The primary control force may be mechanical, hydraulic, and/or electrical. View more Hydraulic Servovalve

Managed by United States

NSN Created on 8 Feb 1975

Data Last Changed
September 2023

NATO Update Count
24

NATO Data Quality

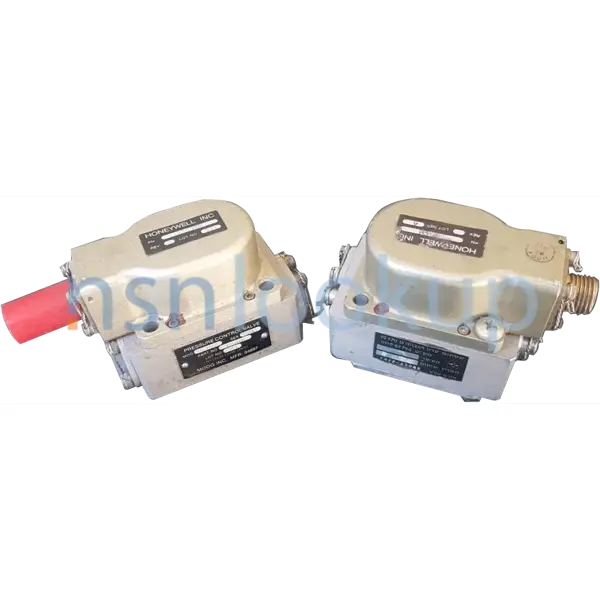

4810-00-613-6894 SERVOVALVE,HYDRAULIC 4810006136894 006136894 1/1 — 4810-00-613-6894 Photo 1/1

Marketplace 4810-00-613-6894

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

4810-00-613-6894 SERVOVALVE,HYDRAULIC 4 EA NS

Subscribe to View Vendor Details...

4810-00-613-6894 SERVOVALVE,HYDRAULIC RQST NS

Subscribe to View Vendor Details...

006136894.4810 SERVOVALVE,HYDRAULIC 20 EA NS

Subscribe to View Vendor Details...

11615328 SERVOVALVE,HYDRAULIC 5 EA NS

Updated Every Day

4810-00-613-6894 RQST NE

Updated Every Day

4810-00-613-6894 RQST

Updated Every Day

4810-00-613-6894 RQST NE

Restrictions 4810-00-613-6894

4810-00-613-6894 is a Hydraulic Servovalve This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 4810-00-613-6894

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4810-00-613-6894

US Army (A403)
Effective Date:: 1 Jan 2009
Former MOE Rule:: A402; AMC 3 AMSC H IMC J

Austria (WB01)
Effective Date:: 1 Feb 2005

Spain (YB01)
Effective Date:: 1 Oct 1997

Israel (YD01)
Effective Date:: 1 Aug 2016

Morocco (YP01)
Effective Date:: 1 Nov 2008

Portugal (ZP01)
Effective Date:: 1 Feb 2013

Greece (ZU01)
Effective Date:: 1 Jul 1995

Turkey (ZW01)
Effective Date:: 1 Aug 2004

Approved Sources 4810-00-613-6894

Part Number
Manufacturer
Status
11615328: 19200 - Combat Capabilities Development (Active); Source Control; RNCC 1 RNVC 2 DAC 1
MODEL 15-170D: 94697 - Moog Inc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
4810006136894: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
1015-613-6894: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
2530006136894: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
28130978-101: 08638 - Alliant Techsystems Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
11615328: 19207 - U S Army Tank Automotive Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
1015-613-6894: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
2530006136894: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
4810006136894: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 4810-00-613-6894

Characteristic
Specifications
FIIG: A508U0
End Item Identification [AGAV]: M60 Tank Family
Rated Current Rating In Ma [CYJX]: 10
Port Diameter [CYCL]: 0.250 Inches Nominal
Port Quantity [CYCJ]: 4
Valve Operation Method [AQLR]: Solenoid
Supply Pressure [CYJV]: 3000.0 Pounds Per Square Inch

Management Data 4810-00-613-6894

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); EA; Subscribe; 1
Oct 2021: Department of the Army (DA); EA; Subscribe; 1
Oct 2020: Department of the Army (DA); EA; Subscribe; 1
Dec 2019: Department of the Army (DA); EA; Subscribe; 1
Jun 2014: US Marine Corps (DM); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; V; Discontinued W/O Replacement

Army

Materiel Category and Inventory Manager:

M: Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

JH: Tanks
Tank, 105mm, M60A3, TTS

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

31

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

Physical Category:

1: Bin

Similar Supply Items to 4810-00-613-6894

Freight Information 4810-00-613-6894

4810-00-613-6894 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127220. A Sub NMFC of X. It has a NMFC Description of PRESSURE REG/RED/RELIEF VALVES NOI. 4810-00-613-6894 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 4810-00-613-6894 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 64490 which rates the freight between FCL and LCL. 4810-00-613-6894 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 4810-00-613-6894 is not classified as a special type of cargo when transported by water. 4810-00-613-6894 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 4810-00-613-6894

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); Packaging Data does not meet current MIL-STD-2073-1E

Storage Environment: Unheated General Purpose

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 12.0" H x 10.0" W x 7.9" L; --; --; --; Special Requirements

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: Special Requirement; Special Requirements – see Specific Instructions or Drawings provided; Special Requirements. See Specific Instructions or Drawings Provided; Special Requirements. See Specific Instructions or Drawings Provided; Special requirement – See specific instructions or drawings provided; --

Intermediate Pack Level

Quantity of Unit Packs
Container: --
