4810-00-143-4380

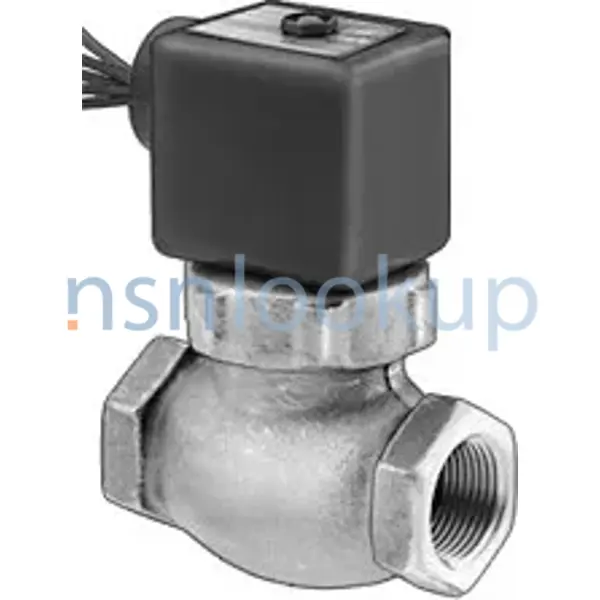

Solenoid Valve
4810001434380 001434380 4635K54 4635K34
A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY. View more Solenoid Valve
May 2023
8
Marketplace 4810-00-143-4380
Request a Quotation from participating marketplace vendors
Related Documents 4810-00-143-4380 2+ Documents (More...)
/fsg-48/fsc-4810/us
Updated Every Day 4635K34 RQST NE Updated Every Day 4810-00-143-4380 RQST NE Updated Every Day 4810-00
4810-00-143-4380 RQST NE Updated Every Day 4810-00 -143-4380 RQST Updated Restrictions 4810-00-143-4380
/fsg-84/fsc-8445/ca
Restrictions 4810-00-143-4380
4810-00-143-4380 is a Solenoid Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4810-00-143-4380
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4810-00-143-4380
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4810-00-143-4380
- Part Number
- Manufacturer
- Status
- 4635K54
- Manufacturer
- 39428 - Mcmaster-Carr Supply Co (Active)
- Primary Buy
- Primary Buy
- 4635K34
- 39428 - Mcmaster-Carr Supply Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4810-00-143-4380
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Material [MATT]
- Copper Alloy Overall
- Style Designator [STYL]
- Straight Thru
- Flow Control Device [ADQU]
- Disk
- Media For Which Designed [MEDA]
- Water-Oil-Gas Single Response
- Maximum Operating Pressure [CQGM]
- 400.0 Pounds Per Square Inch Single Response
- Maximum Operating Temp [AEHZ]
- 250.0 Deg Fahrenheit Single Response
- Valve Operation Method [AQLR]
- Solenoid
- Voltage In Volts And Current Type [CSBH]
- 115.0 Ac
- Frequency In Hertz [FREQ]
- 60.0
- Flow Control Device Normal Operation Position [ADSK]
- Closed
- Connection Type [AWLS]
- Threaded Internal Pipe All Ends
- Connection Style [AHNC]
- Plain,Optional End(Pipe) All Ends
- Thread Series Designator [THSD]
- Npt All Ends
- Nominal Thread Size [CQJX]
- 0.750 Inches All Ends
- Thread Direction [AAJF]
- Right-Hand All Ends
- Mounting Position [BBJX]
- Horizontal
Similar Supply Items to 4810-00-143-4380
Freight Information 4810-00-143-4380
4810-00-143-4380 has freight characteristics.. 4810-00-143-4380 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Packaging Data 4810-00-143-4380
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 2, Corrosion Preventive, Solvent Cutback, Cold Application, Soft Film
- --
- --
- --
- ASTM-D6251, Type III, Class 2, Overseas Cleated Plywood Box or ASTM-D6880, Class 2, Heavy Duty Nailed Wood Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
