4730-01-653-4434

Sediment Strainer

4730016534434 016534434 ARG-2000-S

A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. View more Sediment Strainer

4730-01-653-4434 STRAINER,SEDIMENT 4730016534434 016534434

Managed by United States
NSN Created on 23 Mar 2016
Data Last Changed
November 2023
NATO Update Count
1
NATO Data Quality
STYL Style C16 for 4730-01-653-4434 1/1
NSN 4730-01-653-4434 (Identification) 1/1

4730-01-653-4434 Stock and Availability Marketplace 4730-01-653-4434

Need Help?
Request a Quotation from participating marketplace vendors
FedMallFedMall.mil Updated Every 15 Minutes
4730-01-653-4434 BUY NE FedMallFedMall.mil
eBay Updated Every Day
4730-01-653-4434 RQST NE eBay
eBay Updated Every Day
4730-01-653-4434 RQST eBay
Amazon Updated Every Day
4730-01-653-4434 RQST NE Amazon

4730-01-653-4434 Related Documents Related Documents 4730-01-653-4434 2+ Documents (More...)

BUY NE FedMall Updated Every Day 4730-01-653-4434 RQST NE Updated Every Day 4730-01-653-4434 RQST
Updated Every Day 4730-01-653-4434 RQST NE Related Documents 4730-01-653-4434 2+ Documents ( More...
BUY NE FedMall Updated Every Day 4730-01-653-4434 RQST NE Updated Every Day 4730-01-653-4434 RQST Updated
Documents ( More... ) https//www.nsnlookup.com https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-653-4434
Sediment Strainer 4730016534434 016534434 for $1 a day Upgrade your Account Upgrade 4730-01-653
-4434Sediment Strainer4730016534434 016534434 ARG-2000 /www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01

4730-01-653-4434 Demil Restrictions 4730-01-653-4434

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

4730-01-653-4434 is a Sediment Strainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

4730-01-653-4434 End Users End Users 4730-01-653-4434

US Navy (N9BC)
Effective Date:
1 Mar 2016
Supplementary Collaborators:
HD

4730-01-653-4434 Manufacturers Approved Sources 4730-01-653-4434

4730-01-653-4434 Technical Data Datasheet 4730-01-653-4434

Characteristic
Specifications
FIIG
A24000
Distance From Bottom Of Body To Center Of Inlet [CSKY]
11.25 Inches Nominal
Body Height [ADAU]
14.00 Inches Nominal
Body Length [ADAQ]
7.75 Inches Nominal
Filtering Media Design [CRXW]
Perforated Single Filtering Media Response
First Discharge Connection Type [CSKS]
Threaded Internal Pipe Top Side
First Discharge Thread Series Designator [CTFF]
Npt
First Discharge Nominal Thread Size [CTLG]
2.00 Inches
First Intake Connection Type [CRXZ]
Threaded Internal Pipe Top Side
First Intake Nominal Thread Size [CTGK]
2.00 Inches
First Intake Thread Series Designator [CTDY]
Npt
Material [MATT]
Copper Alloy Body
Material [MATT]
Steel Corrosion Resisting Filtering Medium
Media For Which Designed [MEDA]
Water
Mounting Hole Quantity [ABTJ]
5

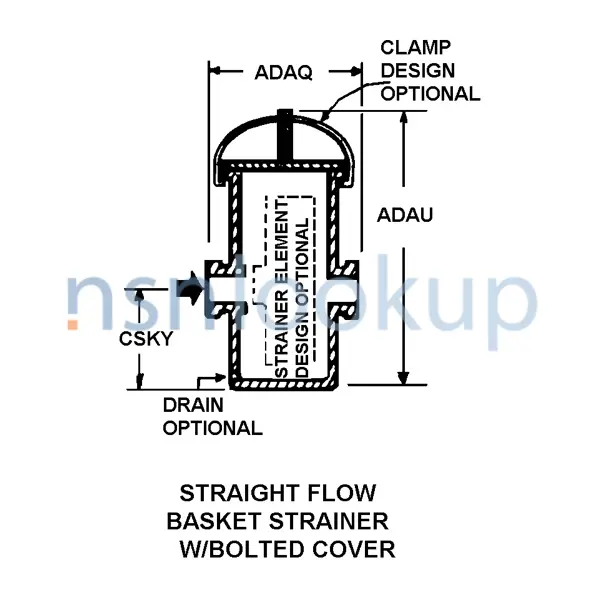

Style Designator [STYL]
Straight Flow Basket Strainer W/Bolted Cover

4730-01-653-4434 Weapon Systems (WSDC) Weapon Systems (WSDC) 4730-01-653-4434

4730-01-653-4434 Stock, Inventory and Procurement DLA Procurement Analysis 4730-01-653-4434

Last Stock Position:
47 In Stock
DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

4730-01-653-4434 Management Data Management Data 4730-01-653-4434

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Dec 2022
Department of the Navy (DN)
EA
Subscribe
1
Oct 2022
Defense Logistics Agency (DS)
EA
Subscribe
1
Oct 2021
Department of the Navy (DN)
EA
Subscribe
1
Apr 2021
Department of the Navy (DN)
EA
Subscribe
1
Oct 2019
Department of the Navy (DN)
EA
Subscribe
1

Navy Navy

Cognizance:
9B
Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

4730-01-653-4434 Related Items NATO Stock Numbers Related to 4730-01-653-4434

4730-01-653-4434 Freight Data Freight Information 4730-01-653-4434

4730-01-653-4434 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 052430. A Sub NMFC of X. It has a NMFC Description of STRAINERS PIPE LINE BBC BODY. 4730-01-653-4434 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30340 which rates the freight between FCL and LCL. 4730-01-653-4434 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-653-4434 is not classified as a special type of cargo when transported by water. 4730-01-653-4434 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

4730-01-653-4434 Procurement History Procurement History 4730-01-653-4434 9 Records

Contract
Date
CAGE
Quantity
Net Price
Std Price
SPE7M323V2820
17 Jul 2023
Subscribe
42
Subscribe
Subscribe
SPE7M322V3021
14 Apr 2022
Subscribe
58
Subscribe
Subscribe
SPE7M322V1158
14 Jan 2022
Subscribe
19
Subscribe
Subscribe
SPE7M322V0570
18 Nov 2021
Subscribe
15
Subscribe
Subscribe
SPE7M318V4056
06 Jun 2018
Subscribe
14
Subscribe
Subscribe
SPE7M318V1668
07 Feb 2018
Subscribe
3
Subscribe
Subscribe
SPE7M418V0223
05 Oct 2017
Subscribe
1
Subscribe
Subscribe
SPE7M018V0111
03 Oct 2017
Subscribe
1
Subscribe
Subscribe
SPE7M817V0379
09 Jan 2017
Subscribe
1
Subscribe
Subscribe

4730-01-653-4434 Contracting Technical Data File (CTDF) Contracting Technical Data File (CTDF) 4730-01-653-4434 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):
F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
