4730-01-618-0931
Lubrication Fitting
4730016180931 016180931 SAE-AS35411 AS15001-3C
A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items. View more Lubrication Fitting
May 2023
15
Marketplace 4730-01-618-0931
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-618-0931 5+ Documents (More...)
RQST NE Updated Every Day 4730-01-618-0931 RQST Updated Every Day 4730-01-618-0931 RQST NE Related Documents
4730-01-618-0931 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-618-0931
Lubrication Fitting 4730016180931 016180931 $1 a day Upgrade your Account Upgrade 4730-01-618-0931Lubrication
Fitting4730016180931 016180931 SAE-AS35411 Day 4730-01-618-0931 RQST NE Related Documents https//www.nsnlookup.com
$1 a day Upgrade your Account Upgrade 4730-01-618-0931Lubrication Fitting4730016180931 016180931 SAE-AS35411
$1 a day Upgrade your Account Upgrade 4730-01-618-0931Lubrication Fitting4730016180931 016180931 SAE-AS35411
Lubrication Fitting 4730016180931 016180931 $1 a day Upgrade your Account Upgrade 4730-01-618-0931Lubrication
Fitting4730016180931 016180931 SAE-AS35411 Lubrication Fitting 4730016805424016805424 enable JavaScript
$1 a day Upgrade your Account Upgrade 4730-01-659-5453Lubrication Fitting4730016595453 016595453 SAE-AS35411
$1 a day Upgrade your Account Upgrade 4730-01-618-0931Lubrication Fitting4730016180931 016180931 SAE-AS35411
Restrictions 4730-01-618-0931
4730-01-618-0931 is a Lubrication Fitting that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-618-0931
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-618-0931
- Spain (YB01)
- Effective Date:
- 1 Apr 2013
- Italy (ZR01)
- Effective Date:
- 1 Dec 2014
Approved Sources 4730-01-618-0931
- Part Number
- Manufacturer
- Status
- SAE-AS35411
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS15001-3C
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- AS15001-3C
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Original Design
- Original Design
Datasheet 4730-01-618-0931
- Characteristic
- Specifications
- FIIG
- Specifications
- A14800
- End Item Identification [AGAV]
- 1510-33-209-1552 Airplane Cargo Transport A400m
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Cadmium Overall

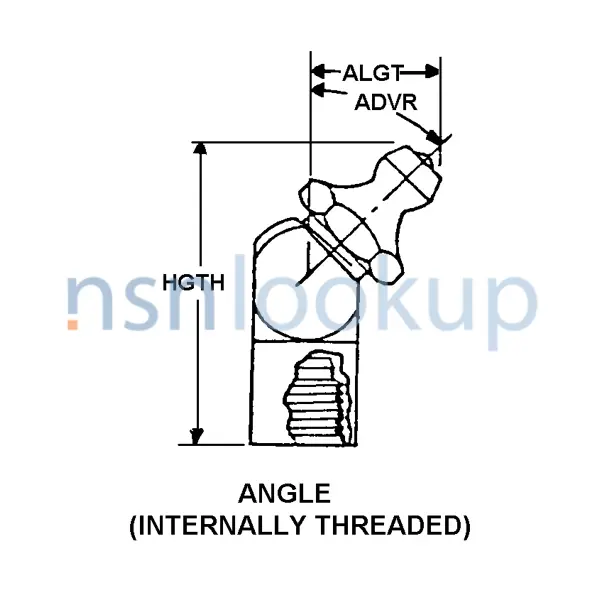

- Style Designator [STYL]
- Angle (Internally Threaded)
- Head Diameter [AASL]
- 0.375 Inches Nominal
- Shank Length [AATR]
- 0.187 Inches Nominal
- Angle In Deg [ADVR]
- 45.0
- Assembly Clearance Radius [ALGT]
- 0.406 Inches Nominal
- Height [HGTH]
- 0.812 Inches Nominal
- Screw Thread Series Designator [AJYP]
- Uns
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Thread Quantity Per Inch [CMLP]
- 28
- Thread Class [AAJD]
- 2A
- Part Name Assigned By Controlling Agency [CXCY]
- Fitting,Lubrication
Similar Supply Items to 4730-01-618-0931
Freight Information 4730-01-618-0931
4730-01-618-0931 has freight characteristics.. 4730-01-618-0931 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
