4730-01-611-9196
Pipe Union
4730016119196 016119196 106A0456-1
A straight pipe fitting designed to join two lengths of pipe or pipe fittings in such a manner that they may be disconnected without disturbing the rest of the pipe line. The end connections have pipe threads or are unthreaded and designed to accommodate a pipe. View more Pipe Union
November 2023
1
Marketplace 4730-01-611-9196
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-611-9196 2+ Documents (More...)
Updated Every Day 4730-01-611-9196 RQST NE Related Documents 4730-01-611-9196 2+ Documents ( More...
) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-611-9196 Pipe Union 4730016119196 016119196,106A0456
Pipe Union 4730016119196 016119196,106A0456-1 01-611-9196 DEMIL: A | DEMILI : 1 | CRITICALITY https
Restrictions 4730-01-611-9196
4730-01-611-9196 is a Pipe Union that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-611-9196
- US Army (A920)
- Effective Date:
- 1 Sep 2012
- Supplementary Receivers:
- AZ
Approved Sources 4730-01-611-9196
- Part Number
- Manufacturer
- Status
- 106A0456-1
- Manufacturer
- 2X262 - Mil-Mar Century Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 4730-01-611-9196
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0

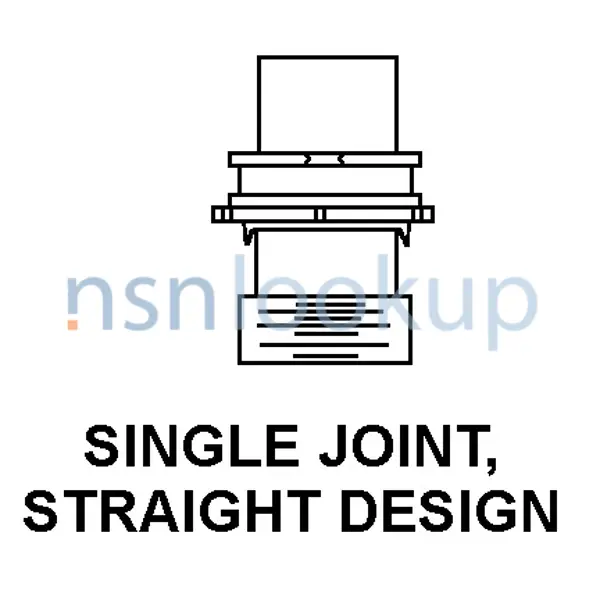

- Style Designator [STYL]
- Single Joint, Straight Design
- Special Features [FEAT]
- Consists Of Union Half- Female, P/N 106A0052-2 (2X262) And Nipple, P/N 314-107 (34215); Nipple Is Externally Threaded
- End Item Identification [AGAV]
- 5430-01-487-7760, Tank, Liquid Storage; Nha: 4730-01-587-0961, Tee, Hose
- Part Name Assigned By Controlling Agency [CXCY]
- Dwg: Female Union Assy
Weapon Systems (WSDC) 4730-01-611-9196
DLA Procurement Analysis 4730-01-611-9196
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-611-9196
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 4730-01-611-9196
Freight Information 4730-01-611-9196
4730-01-611-9196 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-01-611-9196 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-01-611-9196 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-611-9196 is not classified as a special type of cargo when transported by water. 4730-01-611-9196 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 4730-01-611-9196 2 Records
Contracting Technical Data File (CTDF) 4730-01-611-9196 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
