4730-01-606-2249
Straight Tubing Connector
4730016062249 016062249 AFP165-12
INC: 37905 Straight Tubing Connector
January 2023
3
Marketplace 4730-01-606-2249
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-606-2249 1+ Documents (More...)
/fsg-47/fsc-4730/us 4730-01-606-2249 Straight Tubing Connector 4730016062249 Count 3 NATO Data Quality
NSN 4730-01-606-2249 (Identification RQST NE Updated Every Day 4730-01-606-2249 RQST Updated Every Day
Restrictions 4730-01-606-2249
4730-01-606-2249 is a Straight Tubing Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-606-2249
- Canada (ZC01)
- Effective Date:
- 1 May 2012
Approved Sources 4730-01-606-2249
- Part Number
- Manufacturer
- Status
- AFP165-12
- Manufacturer
- 30974 - Aerofit, Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 4730-01-606-2249
- Characteristic
- Specifications
- FIIG
- Specifications
- A24200
- Material [MATT]
- Steel Corrosion Resisting
- Part Name Assigned By Controlling Agency [CXCY]
- Ring, Rigid Tube Connector, Corrosion Resistant Steel
- Overall Length [ABHP]
- 0.484 Inches Nominal
- Special Features [FEAT]
- Largest O.D. 0.966 Nominal; 2 X 37.0 Degree Taper; Configuration Control Lockheed
- Tubing Outside Diameter [AQRX]
- 0.750 Inches Nominal
- Tubing Inside Diameter [AQRY]
- 0.656 Inches Nominal

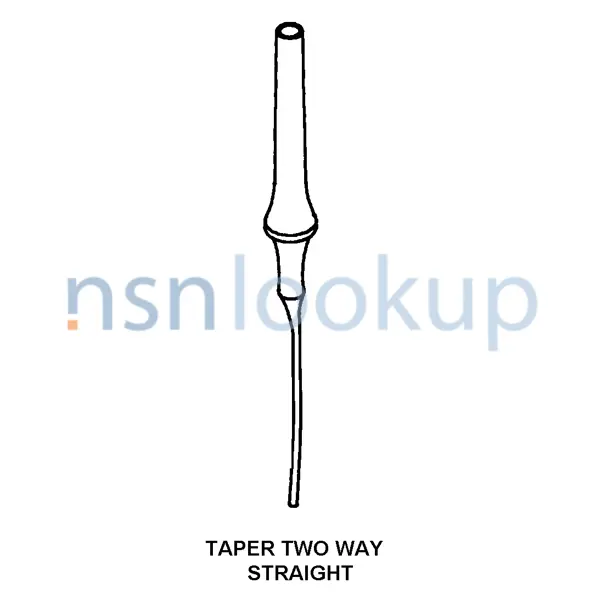

- Style Designator [STYL]
- Straight, Taper Two-Way
Similar Supply Items to 4730-01-606-2249
Freight Information 4730-01-606-2249
4730-01-606-2249 has freight characteristics managed by the Department of the Air Force.. 4730-01-606-2249 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
