4730-01-596-9328
Magnetic Pipe Plug
4730015969328 015969328 3A7739-05
A pipe fitting primarily designed for installation in a lubrication or hydraulic system. It has an integral magnet in the body and external pipe threads. View more Magnetic Pipe Plug
January 2023
2
Marketplace 4730-01-596-9328
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-596-9328 1+ Documents (More...)
/fsg-47/fsc-4730/us 4730-01-596-9328 RQST NE Updated Every Day 4730-01-596-9328 RQST Updated Every Day
4730-01-596-9328 RQST NE Restrictions Restrictions 4730-01-596-9328 DEMIL: A | DEMILI : 1 | CRITICALITY
Restrictions 4730-01-596-9328
4730-01-596-9328 is a Magnetic Pipe Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-596-9328
- Republic of Korea (ZH01)
- Effective Date:
- 1 May 2011
Approved Sources 4730-01-596-9328
- Part Number
- Manufacturer
- Status
- 3A7739-05
- Manufacturer
- 97484 - Eaton Aerospace Llc (Active)
- Primary Buy
- Primary Buy

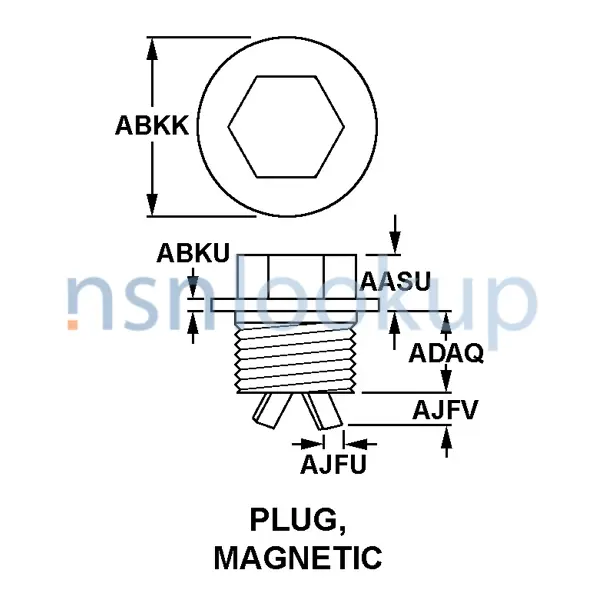

Datasheet 4730-01-596-9328
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Material [MATT]
- Steel Head
- Style Designator [STYL]
- Plug, Magnetic
- Head Height [AASU]
- 0.52 Inches Nominal
- Body Length [ADAQ]
- 1.06 Inches Nominal
- Magnet Width [AJFU]
- 0.25 Inches Nominal
- Magnet Projection Length [AJFV]
- 0.41 Inches Nominal
- Connection Style [AHNC]
- External Seat For Gasket Seal
- Thread Series Designator [THSD]
- Unf External
- Nominal Thread Size [CQJX]
- 0.500 Inches External
- Thread Quantity Per Inch [CMLP]
- 20 External
- Thread Tolerance Class [AJBS]
- 2A External
- Thread Direction [AAJF]
- Right-Hand External
- Maximum Operating Temp [AEHZ]
- 200.0 Deg Celsius
- Part Name Assigned By Controlling Agency [CXCY]
- Lubrication System Diagnostics Sensors, Magnetic Chip Collectors
Similar Supply Items to 4730-01-596-9328
Freight Information 4730-01-596-9328
4730-01-596-9328 has freight characteristics managed by the Republic of Korea.. 4730-01-596-9328 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
