4730-01-593-5359
Quick-Disconnect Nipple
4730015935359 015935359 738311 PDP343Y
A fluid line fitting having external quick-disconnect features of the same size on both ends, designed to couple mating internal quick-disconnect fittings. View more Quick-Disconnect Nipple
May 2023
4
Marketplace 4730-01-593-5359
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-593-5359 5+ Documents (More...)
(Identification) 1/2 NSN 4730-01-593-5359 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 4730-01-593-5359 RQST NE Updated Every Day 4730-01-593-5359 RQST
www.nsnlookup.com /fsg-53/fsc-5365/us 5365-01-209-7351 Plate Spacer 5365012097351 012097351,738311-4 738311
https//www.nsnlookup.com /fsg-53/fsc-5365 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-593-5359
738311-1 SHIM 6 EA NS Request Quotation Subscribe to View Vendor Details... 738311-1 SHIM 5 EA NS Request
https//www.nsnlookup.com /fsg-53/fsc-5365/us 5365-01-208-7606 Shim 5365012087606 012087606,738311-1 738311
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 738311
Subscribe to View Vendor Details... 738311-2 SHIM 5 EA NS Request Quotation FedMall Updated Every 15
Restrictions 4730-01-593-5359
4730-01-593-5359 is a Quick-Disconnect Nipple that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-593-5359
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2011
- Supplementary Collaborators:
- KE
Approved Sources 4730-01-593-5359
- Part Number
- Manufacturer
- Status
- PDP343Y
- Manufacturer
- 7DU54 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- PDP343Y
- 97111 - Parker-Hannifin Corporation (Active)
- Original Design
- Original Design
- 738311
- 98255 - Drs Sustainment Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- PDP343Y
- 05779 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-01-593-5359
- Characteristic
- Specifications
- FIIG
- Specifications
- A531V0
- Material [MATT]
- Steel Body
- Maximum Operating Pressure [CQGM]
- 6000.0 Pounds Per Square Inch
- Maximum Operating Temp [AEHZ]
- 250.0 Deg Fahrenheit
- Style Designator [STYL]
- Nipple
- Leg Length [AHSJ]
- 0.930 Inches Nominal
- Overall Length [ABHP]
- 1.480 Inches Nominal
- Connection Type [AWLS]
- External Quick Disconnect

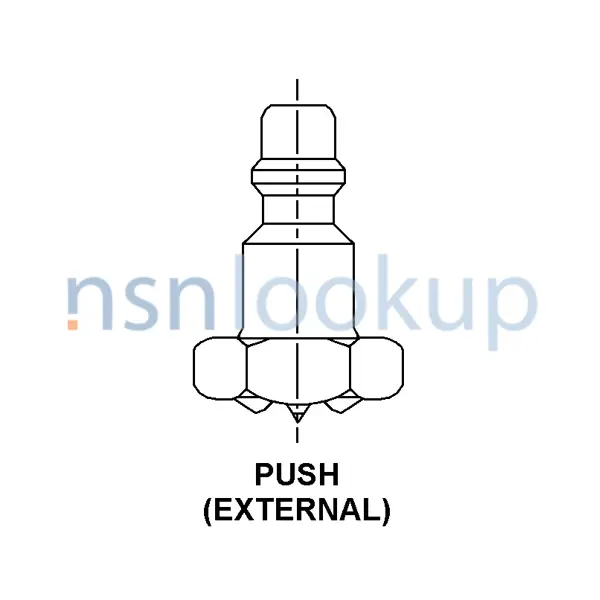

- Connection Style [AHNC]
- Push (External)
- Quick Disconnect Method [ADLN]
- Push-Pull
- Quick Disconnect Nominal Size [ADLP]
- 0.125 Inches
- Mating End Identification [ADLT]
- 1/4-18 Nptf
- Special Features [FEAT]
- Body Matl Is High Tensile Steel; Item Includes Fluorocarbon Seal Ring
- End Item Identification [AGAV]
- 6625-01-542-5713
- Part Name Assigned By Controlling Agency [CXCY]
- Coupling,Test Port,Nipple,Male Pipe
Weapon Systems (WSDC) 4730-01-593-5359
DLA Procurement Analysis 4730-01-593-5359
Management Data 4730-01-593-5359
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-01-593-5359
Freight Information 4730-01-593-5359
4730-01-593-5359 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 096000. A Sub NMFC of X. It has a NMFC Description of NIPPLES/TUBING STEEL OPEN SEAM. 4730-01-593-5359 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50260 which rates the freight between FCL and LCL. 4730-01-593-5359 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 4730-01-593-5359 is not classified as a special type of cargo when transported by water. 4730-01-593-5359 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-593-5359
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4730-01-593-5359 2 Records
Contracting Technical Data File (CTDF) 4730-01-593-5359 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
