4730-01-580-2452

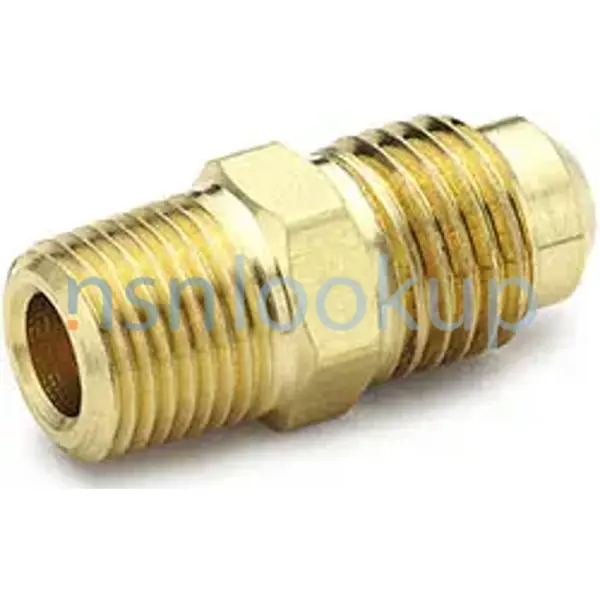

Pipe To Tube Straight Adapter
4730015802452 015802452 SAE-J512 J512 6-6 010102 SAE J512 6-6 010102
An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a pipe or pipe fitting to a tube or tube fitting in a straight line. View more Pipe To Tube Straight Adapter
November 2023
4
Marketplace 4730-01-580-2452
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-580-2452 5+ Documents (More...)
Pipe To Tube Straight Adapter 4730015802452 SAE-J512J5126-6 010102SAE J512 6-6 010102 An adapter having
-4320/es 4320-33-000-2066 Pump-Motor Hydraulic Cover 4320330002066 Reference RNCC 3 RNVC 1 DAC E SAE J512
66666625010276666 010276666,35-010102 Sensitive Switch 5930121489813121489813 Reference RNCC 3 RNVC 1 DAC E SAE J512
6-6 010102 https https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-580-2452 Pipe To Tube Straight
6-6 010102 https https//www.nsnlookup.com /fsg-72/fsc-7240/fr 7240-14-336-3217 Funnel 7240143363217
-4320/es 4320-33-000-2066 Pump-Motor Hydraulic Cover 4320330002066 Reference RNCC 3 RNVC 1 DAC E SAE J512
Pipe To Tube Straight Adapter 4730015802452 -4730/us 4730-01-580-2452 Pipe To Tube Straight https
Restrictions 4730-01-580-2452
4730-01-580-2452 is a Pipe To Tube Straight Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-580-2452
- US Army (A920)
- Effective Date:
- 1 Dec 2009
- Supplementary Receivers:
- AZ
- US Marine Corps (MC40)
- Effective Date:
- 1 Feb 2011
Approved Sources 4730-01-580-2452
- Part Number
- Manufacturer
- Status
- SAE-J512
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- SAE J512 6-6 010102
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- J512
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6-6 010102
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- SAE J512 6-6 010102
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- J512
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-01-580-2452
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Style Designator [STYL]
- Flared W/ Center Wrenching Facility
- Connection Type [AWLS]
- Threaded External Tube 1St End
- Connection Type [AWLS]
- Threaded External Pipe 2Nd End
- Connection Style [AHNC]
- Flared (Tube) 1St End
- Connection Style [AHNC]
- Plain (Pipe) 2Nd End
- Seat Angle [CQRB]
- 45.0 Degrees 1St End
- Thread Series Designator [THSD]
- Nptf 2Nd End
- Nominal Thread Size [CQJX]
- 0.375 Inches 2Nd End
- End Item Identification [AGAV]
- 2320-01-552-7781
Weapon Systems (WSDC) 4730-01-580-2452
DLA Procurement Analysis 4730-01-580-2452
- Last Stock Position:
- 350 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-580-2452
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4730-01-580-2452
Freight Information 4730-01-580-2452
4730-01-580-2452 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-01-580-2452 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-01-580-2452 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 4730-01-580-2452 is not classified as a special type of cargo when transported by water. 4730-01-580-2452 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-580-2452
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4730-01-580-2452 6 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M322V3647
- 11 Jul 2022
- Subscribe
- 435
- Subscribe
- Subscribe
- Subscribe
- SPE7M114VG661
- 03 Sep 2014
- Subscribe
- 439
- Subscribe
- Subscribe
- Subscribe
- SPE7M014VF692
- 12 Aug 2014
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M014V7292
- 10 Mar 2014
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPE7M014V6119
- 13 Feb 2014
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE7M314M2151
- 13 Feb 2014
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4730-01-580-2452 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
