4730-01-539-2385
Drainage Pipe Trap
4730015392385 015392385 22 LD
A device designed to be connected to a drainage system to prevent sewer gas from backing up beyond a desired point by forming a water seal in the line. This is accomplished by its peculiar shape, which is usually in the form of the letter P and S. It is provided with an internal shoulder(s) at the end(s) of its internal threaded or unthreaded portion, whose inside diameter conforms to standard weight wrought iron pipe or copper drainage, waste and vent (DWV) tube. When connected, the mating pipes make up close to the shoulders to eliminate pockets and provide a smooth flow of pipe and/or pipe fitting contents. Excludes TRAP, DRAIN, PLUMBING FIXTURE; and TRAP, SOIL PIPE. View more Drainage Pipe Trap
November 2023
1
Marketplace 4730-01-539-2385
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-539-2385 1+ Documents (More...)
Updated Every Day 4730-01-539-2385 RQST NE Related Documents 4730-01-539-2385 1+ Documents ( More...
BUY NE FedMall Updated Every Day 4730-01-539-2385 RQST NE Updated Every Day 4730-01-539-2385 RQST Updated
Restrictions 4730-01-539-2385
4730-01-539-2385 is a Drainage Pipe Trap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-539-2385
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-539-2385
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2006
- Supplementary Collaborators:
- GTHD
Approved Sources 4730-01-539-2385
- Part Number
- Manufacturer
- Status
- 22 LD
- Manufacturer
- 03933 - Armstrong International Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 4730-01-539-2385
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- End Item Identification [AGAV]
- Auxilliary Systems
- Connection Style [AHNC]
- Plain (Pipe) 1St End
- Connection Style [AHNC]
- Socket (Pipe) 2Nd End
- Connection Type [AWLS]
- Threaded Internal Pipe 1St End
- Connection Type [AWLS]
- Unthreaded Internal Pipe 2Nd End
- Material [MATT]
- Steel Corrosion Resisting Overall
- Maximum Operating Temp [AEHZ]
- 500.0 Deg Fahrenheit 2Nd Response
- Maximum Operating Pressure [CQGM]
- 475.0 Pounds Per Square Inch 2Nd Response
- Maximum Operating Pressure [CQGM]
- 600.0 Pounds Per Square Inch 1St Response
- Maximum Operating Temp [AEHZ]
- 100.0 Deg Fahrenheit 1St Response
- Nominal Pipe Size Accommodated [AAAR]
- 0.750 Inches 2Nd End
- Nominal Thread Size [CQJX]
- 0.750 Inches 1St End
- Material Document And Classification [MDCL]
- Astm A167 Assn Std All Material Responses Overall And Astm A582 Assn Std All Material Responses Overall
- Pipe Wall Thickness Designation For Which Designed [CWFG]
- Standard 1St End
- Pipe Wall Thickness Designation For Which Designed [CWFG]
- Standard 2Nd End
- Special Features [FEAT]
- Bottom Outlet, Side Inlet, Top Vent; Has 90Psi Valve; 3.812 Inch Diameter 8.812 Inch Height
- Thread Series Designator [THSD]
- Npt 1St End
- Style Designator [STYL]

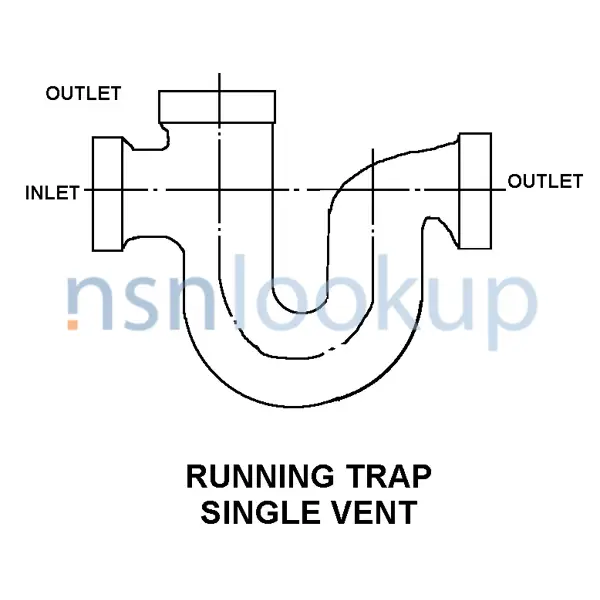

- Running Trap Single Vent
