4730-01-534-6188
Sediment Strainer
4730015346188 015346188 174YF-2.50IN 1450,FIG NO. 174YF-2.50IN
A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. View more Sediment Strainer
May 2023
2
Marketplace 4730-01-534-6188
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-534-6188 3+ Documents (More...)
(Identification) 1/3 NSN 4730-01-534-6188 (Identification) 2/3 NSN 4730-01-534-6188 (Identification
BUY NE FedMall Updated Every Day 4730-01-534-6188 RQST NE Updated Every Day 4730-01-534-6188 RQST
www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-534-4836 Gasket 5330015344836015344836 1450,FIG N0 174YF-2.50IN
Sediment Strainer 4730015346188 015346188 RQST NE Updated Every Day 4730-01-534-6188 RQST https
Sediment Strainer 4730015346188 015346188 NumberManufacturerStatus1450,FIG N0 174YF-2.50IN https
your Account Upgrade 4730-01-534-6183Sediment Strainer Element4730015346183 015346183 1450,FIG N0 174YF-2.50IN
Restrictions 4730-01-534-6188
4730-01-534-6188 is a Sediment Strainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-534-6188
- US Navy (N9BC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4730-01-534-6188
- Part Number
- Manufacturer
- Status
- 174YF-2.50IN
- Manufacturer
- 78527 - Staples & Pfeiffer, Inc. (Active)
- Primary Buy
- Primary Buy
- 1450,FIG NO. 174YF-2.50IN
- 78527 - Staples & Pfeiffer, Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4730-01-534-6188
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000
- Distance From Bottom Of Body To Center Of Inlet [CSKY]
- 12.500 Inches Nominal
- Body Height [ADAU]
- 18.500 Inches Nominal
- Body Length [ADAQ]
- 10.500 Inches Nominal
- Center To Center Distance Between Connections [CSLQ]
- 10.500 Inches Nominal
- End Item Identification [AGAV]
- Ship, Lube Oil
- Features Provided [CBBL]
- Drain Plug
- Filtering Media Design [CRXW]
- Perforated Single Filtering Media Response
- First Discharge Connection Relationship To Intake Connection [CSJR]
- Identical To First Intake Connection
- First Intake Connection Type [CRXZ]
- Plain Face Flange Side
- First Intake Flange Face Style [CTBJ]
- Plain
- First Intake Flange Outside Diameter [CSRH]
- 7.000 Inches Nominal
- First Intake Flange Shape Style [CSTD]
- Round W/Unthreaded Bolt Holes
- First Intake Flange Thickness [CTHJ]
- 0.750 Inches Nominal
- Material [MATT]
- Steel Body
- Material [MATT]
- Steel Comp 304 Screening
- Maximum Operating Pressure [CQGM]
- 100.0 Pounds Per Square Inch
- Media For Which Designed [MEDA]
- Fuel/Oil, Hydrocarbon
- Mounting Type [AAXX]
- Inlet Connection Side And Outlet Connection Side
- Style Designator [STYL]

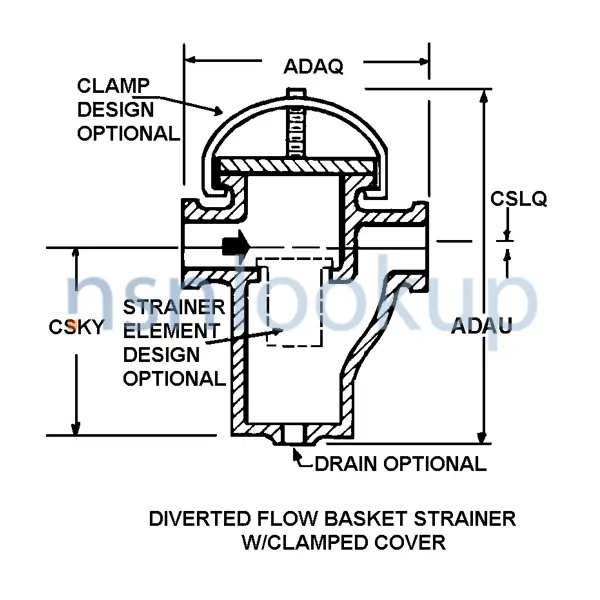

- Diverted Flow Basket Strainer W/Clamped Cover
