4730-01-513-1648
Hose Clamp
4730015131648 015131648 333-125--312-S GC501J125-312
A clamp in which the body (band or wire) completely encircles an item and distributes a relatively even amount of pressure throughout the entire 360 degrees (6.282 radians) of the periphery of the item to be compressed. Its compression quality is dependent upon an integral screw mechanism, (screw, bolt spring compression and the like mechanical fasteners), or it may be applied by a device not integral with the clamp itself. It is specifically designed to prevent leakage between a hose and its attaching connection(s) when the body of the clamp is round or circular. For square, rectangular, or irregularly shaped items, see CLAMP, HOSE, SPECIAL-SHAPED. Excludes CLAMP, ELECTRICAL; CLAMP, LOOP; CLAMP, FIRE HOSE, SHUTOFF; FERRULE (as modified); and HAND SCREW. View more Hose Clamp
November 2023
3
Marketplace 4730-01-513-1648
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-513-1648 1+ Documents (More...)
United States (US) 4. 4730-01-513-1648 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 4730-01-513-1648 RQST Updated Every Day 4730-01-513-1648 RQST NE Related Documents
Restrictions 4730-01-513-1648
4730-01-513-1648 is a Hose Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-513-1648
- US Navy (N9BC)
- Effective Date:
- 1 May 2013
- Supplementary Collaborators:
- KE
- France (ZF01)
- Effective Date:
- 1 Sep 2003
Approved Sources 4730-01-513-1648
- Part Number
- Manufacturer
- Status
- 333-125--312-S
- Manufacturer
- 00624 - Eaton Aeroquip Llc (Active)
- Primary Buy
- Primary Buy
- GC501J125-312
- 26512 - Northrop Grumman Systems Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4730-01-513-1648
- Characteristic
- Specifications
- FIIG
- Specifications
- A12700
- End Item Identification [AGAV]
- E-2C Hawkeye Aircraft, Northrop Grumman Systems Corporation
- Fastening Device Type [AXWJ]
- Self-Locking Hexagon Nut
- Material Document And Classification [MDCL]
- Mil-S-5059 Mil Spec All Material Responses Pin/Stud
- Material Document And Classification [MDCL]
- Mil-S-5059 Mil Spec Single Material Response Band
- Material [MATT]
- Steel Comp 301 Band
- Material [MATT]
- Steel Comp 301 Pin/Stud Or Steel Comp 302 Pin/Stud
- Material [MATT]
- Steel Comp 4037 Bolt
- Inside Diameter [AARX]
- 3.120 Inches Nominal
- Material Document And Classification [MDCL]
- Aisi4037 Assn Std Single Material Response Bolt
- Overall Width [ABMK]
- 1.250 Inches Nominal
- Special Features [FEAT]
- Clamp, Flat Band

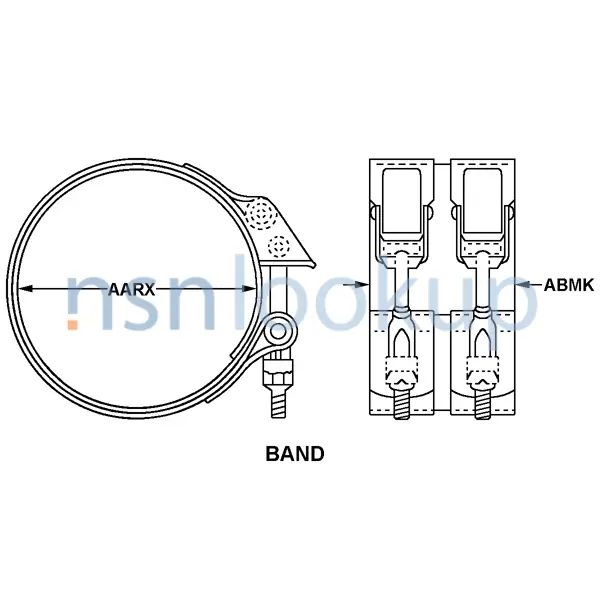

- Style Designator [STYL]
- Band
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Fed Spec Single Treatment Response Bolt
- Surface Treatment [SFTT]
- Cadmium Bolt
- Temp Rating [ABJH]
- 121.1 Deg Celsius
Weapon Systems (WSDC) 4730-01-513-1648
DLA Procurement Analysis 4730-01-513-1648
- Last Stock Position:
- 38 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-513-1648
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-01-513-1648
Freight Information 4730-01-513-1648
4730-01-513-1648 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 4730-01-513-1648 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 4730-01-513-1648 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 4730-01-513-1648 is not classified as a special type of cargo when transported by water. 4730-01-513-1648 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-513-1648
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 4730-01-513-1648 3 Records
Contracting Technical Data File (CTDF) 4730-01-513-1648 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
