4730-01-509-5909
Sediment Strainer
4730015095909 015095909 1-335-M20 2IN 1-335-M20-IS-15F-150-2.00IN 1-335
A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. View more Sediment Strainer
November 2023
1
Marketplace 4730-01-509-5909
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-509-5909 4+ Documents (More...)
BUY NE FedMall Updated Every Day 4730-01-509-5909 RQST NE Updated Every Day 4730-01-509-5909 RQST
Updated Every Day 4730-01-509-5909 RQST NE Related Documents 4730-01-509-5909 4+ Documents ( More...
Sediment Strainer 4730015095909 015095909 for $1 a day Upgrade your Account Upgrade 4730-01-509
-5909Sediment Strainer4730015095909 015095909 1-335 -M20 2IN 1-335-M20-IS-15F-150-2.00IN 1-335 A strainer
Sediment Strainer 4730015095909 015095909 014973446 IS-15F-150 2IN IS-15F-150 2IN 1/32 PERF MONEL
1-335 7386Sediment Strainer4730014307386 014307386 Restrictions 4730-01-430-7386 DEMIL: A | DEMILI :
1-335 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-497-3453 Sediment Strainer Element 4730014973453
Restrictions 4730-01-509-5909
4730-01-509-5909 is a Sediment Strainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-509-5909
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4730-01-509-5909
- Part Number
- Manufacturer
- Status
- 1-335-M20 2IN
- Manufacturer
- 09032 - Tate Andale, Llc (Active)
- Primary Buy
- Primary Buy
- 1-335-M20-IS-15F-150-2.00IN
- 09032 - Tate Andale, Llc (Active)
- Secondary Buy
- Secondary Buy
- 1-335
- 09032 - Tate Andale, Llc (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-01-509-5909
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000
- Features Provided [CBBL]
- Air Bleed Valve And Drain Plug
- Filtering Media Design [CRXW]
- Perforated Single Filtering Media Response
- First Discharge Connection Relationship To Intake Connection [CSJR]
- Identical To First Intake Connection
- First Intake Connection Type [CRXZ]
- Plain Face Flange Side Near Top
- Material [MATT]
- Copper Alloy Body
- Material [MATT]
- Nickel Alloy Screening
- Style Designator [STYL]

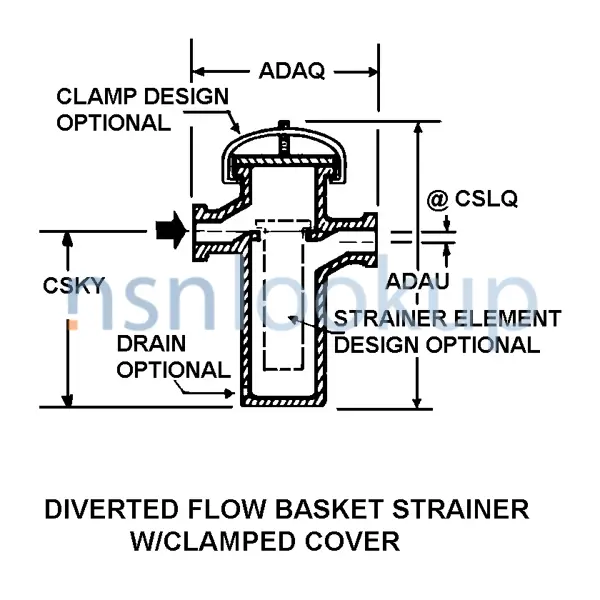

- Diverted Flow Basket Strainer W/Clamped Cover
- Material Document And Classification [MDCL]
- Astm B-62 Assn Std Single Material Response Body
- Part Name Assigned By Controlling Agency [CXCY]
- 2" Simplex Strainer
- Perforation Diameter [AKSV]
- 0.438 Inches Nominal
- Special Features [FEAT]
- Vstandard 150 Lb Commercial Flanges Flat Faced And Drilled With Four Holes; 19-3/8" Clearance For Strainer Basket Removal; 5-3/4" Diam X 13-1/8" Ht; 10-1/8" Distance Flange Face To Face; Cover Gasket Non-Asbestos Astm F104 P7141a.
Weapon Systems (WSDC) 4730-01-509-5909
DLA Procurement Analysis 4730-01-509-5909
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-509-5909
Navy
- Cognizance:
- 3B
NATO Stock Numbers Related to 4730-01-509-5909
Freight Information 4730-01-509-5909
4730-01-509-5909 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052440. A Sub NMFC of X. It has a NMFC Description of STRAINERS PIPE LINE I/S BODY. 4730-01-509-5909 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30350 which rates the freight between FCL and LCL. 4730-01-509-5909 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-509-5909 is not classified as a special type of cargo when transported by water. 4730-01-509-5909 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-509-5909
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-203, Kraft Wrapping Paper
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- A-A-203, Kraft Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4730-01-509-5909 2 Records
Contracting Technical Data File (CTDF) 4730-01-509-5909 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
