4730-01-508-7078
Sediment Strainer
4730015087078 015087078 0402DH-S0401212 040DH1-212

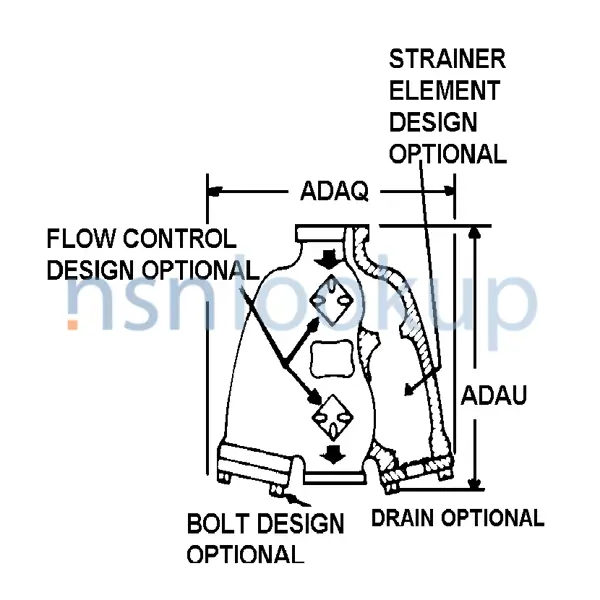

A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. View more Sediment Strainer
May 2023
2
Marketplace 4730-01-508-7078
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-508-7078 5+ Documents (More...)
BUY NE FedMall Updated Every Day 4730-01-508-7078 RQST NE Updated Every Day 4730-01-508-7078 RQST
Updated Every Day 4730-01-508-7078 RQST NE Related Documents 4730-01-508-7078 5+ Documents ( More...
0402HD-S0401212 040DH1-212 A strainer having inlet and outlet connections and designed to be connected
Sediment Strainer 4730015087078 015087078 040DH1-212 A strainer having inlet and outlet connections
4730015087078 015087078 Upgrade your Account Upgrade 4730-01-508-7078Sediment Strainer4730015087078 015087078
0402DH-S0401212 040DH1-212 Sediment Strainer 4730015092749015092749 Sediment Strainer 4730015087078015087078
Strainer4730014749863 014749863 0402DH-S0401212 0402HD-S0401212 040DH1-212 (Active) Advisory Reference
4730015087078 015087078 Upgrade your Account Upgrade 4730-01-508-7078Sediment Strainer4730015087078 015087078
Sediment Strainer 4730015087078 015087078 Upgrade 4730-01-474-9863Sediment Strainer4730014749863
014749863 0402DH-S0401212 0402HD-S0401212 040DH1-212 Upgrade 4730-01-474-9863Sediment Strainer4730014749863
Restrictions 4730-01-508-7078
4730-01-508-7078 is a Sediment Strainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-508-7078
- US Navy (N9BC)
- Effective Date:
- 1 Jun 2006
- Supplementary Collaborators:
- HD
- United States of America (ZZ)
Approved Sources 4730-01-508-7078
- Part Number
- Manufacturer
- Status
- 0402DH-S0401212
- Manufacturer
- 1QZK3 - The Hellan Strainer Co (Active)
- Primary Buy
- Primary Buy
- 040DH1-212
- 59958 - Cleveland Gear Company, Inc. (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-01-508-7078
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000
- Material [MATT]
- Copper Alloy Body
- Material [MATT]
- Copper Alloy Screening And Nickel Alloy Screening
- Maximum Operating Pressure [CQGM]
- 250.0 Pounds Per Square Inch
- Media For Which Designed [MEDA]
- Water
- Style Designator [STYL]
- Twin Strainer W/Bolted Cover
- Special Features [FEAT]
- 4 In. Strainer Size; 250 Lb. Flat Face Flange; In-Line Flow Dual Screens; Manual Handwheel; Monel 400 Screen Material; 0.062 In. Screen Opening; Bronze Body Material; 212 Series Strainer
- Part Name Assigned By Controlling Agency [CXCY]
- 4 Inch Manual Dual Screen Hellan Strainer Assembly
- Perforation Diameter [AKSV]
- 0.062 Inches Nominal
DLA Procurement Analysis 4730-01-508-7078
Management Data 4730-01-508-7078
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-01-508-7078
Freight Information 4730-01-508-7078
4730-01-508-7078 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052440. A Sub NMFC of X. It has a NMFC Description of STRAINERS PIPE LINE I/S BODY. 4730-01-508-7078 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30350 which rates the freight between FCL and LCL. 4730-01-508-7078 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-508-7078 is not classified as a special type of cargo when transported by water. 4730-01-508-7078 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4730-01-508-7078 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
