4730-01-499-2135
Sediment Strainer
4730014992135 014992135 0152SH-S1201212 015SH2-211 015SH1-211
A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. View more Sediment Strainer
Managed by United States
NSN Created on 17 Jul 2002
Data Last Changed
May 2023
May 2023
NATO Update Count
2
2
NATO Data Quality
Marketplace 4730-01-499-2135
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-499-2135 5+ Documents (More...)
0152SH-S1201212 015SH2-211 015SH1-211 A strainer having inlet and outlet connections and designed to
(Identification) 1/3 NSN 4730-01-499-2135 (Identification) 3/3 NSN 4730-01-499-2135 (Identification
BUY NE FedMall Updated Every Day 4730-01-499-2135 RQST NE Updated Every Day 4730-01-499-2135 RQST
(Identification) 1/3 NSN 4730-01-499-2135 (Identification) 3/3 NSN 4730-01-499-2135 (Identification
BUY NE FedMall Updated Every Day 4730-01-499-2135 RQST NE Updated Every Day 4730-01-499-2135 RQST
/015SH2-211 A strainer having inlet and outlet connections and designed to be connected in a pipe
015SH2-211 494-0951 Sediment Strainer 4730014940951014940951 https//www.nsnlookup.com /fsg-47/fsc
Sediment Strainer 4730014992135 014992135 01-499-21354730014992135014992135 is a strainer https
015SH2-211 494-0951 Sediment Strainer 4730014940951014940951 https//www.nsnlookup.com /fsg-47/fsc
Sediment Strainer 4730014992135 014992135 01-499-21354730014992135014992135 is a strainer https
015SH1-211 A strainer having inlet and outlet connections and designed to be connected in a pipe
A strainer having inlet and outlet connections and designed to be connected in a pipe 015SH2-211
/fsg-47/fsc-4730/us 4730-01-499-2135 Sediment Strainer 4730014992135 014992135 015SH1-211 A strainer
A strainer having inlet and outlet connections and designed to be connected in a pipe 015SH2-211
/fsg-47/fsc-4730/us 4730-01-499-2135 Sediment Strainer 4730014992135 014992135 015SH1-211 A strainer
015SH2-211 A strainer having inlet and outlet connections and designed to be connected in a pipe
Sediment Strainer 4730014992135 014992135 015SH1-211 A strainer having inlet and outlet connections
/015SH2-211 A strainer having inlet and outlet connections and designed to be connected in a pipe
Sediment Strainer 4730014992135 014992135 015SH1-211 A strainer having inlet and outlet connections
/015SH2-211 A strainer having inlet and outlet connections and designed to be connected in a pipe
ITEM 8 015SH2-211 Managed by United States NSN Created on 23 Jan 2002 Data Last Changed November
Sediment Strainer 4730014992135 014992135 A strainer having inlet and outlet connections and designed
to be connected in a pipe 015SH2-211 www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-494-0951 Sediment
Sediment Strainer 4730014992135 014992135 A strainer having inlet and outlet connections and designed
to be connected in a pipe 015SH2-211 www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-494-0951 Sediment
Restrictions 4730-01-499-2135
4730-01-499-2135 is a Sediment Strainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-499-2135
- US Navy (N9BC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4730-01-499-2135
- Part Number
- Manufacturer
- Status
- 0152SH-S1201212
- Manufacturer
- 1QZK3 - The Hellan Strainer Co (Active)
- Primary Buy
- Primary Buy
- 0152SH-S1201212
- 59958 - Cleveland Gear Company, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 015SH2-211
- 59958 - Cleveland Gear Company, Inc. (Active)
- Informational Drawing
- Informational Drawing
- 015SH1-211
- 59958 - Cleveland Gear Company, Inc. (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-01-499-2135
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000

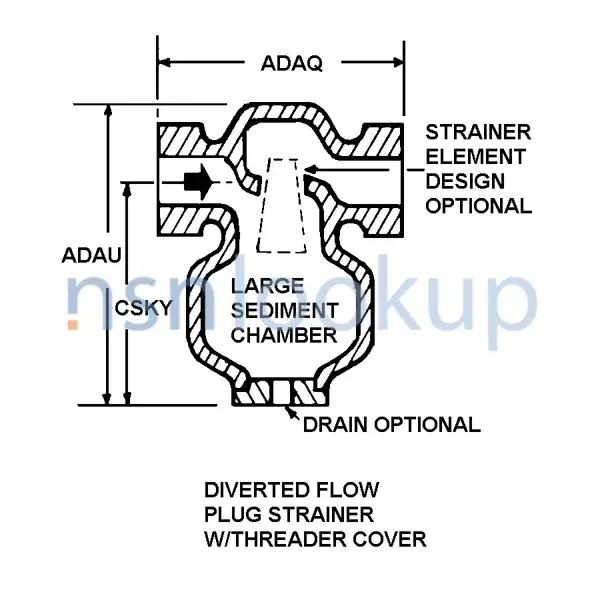

- Distance From Bottom Of Body To Center Of Inlet [CSKY]
- 5.985 Inches Minimum And 6.015 Inches Maximum
- Body Height [ADAU]
- 16.485 Inches Minimum And 16.515 Inches Maximum
- Body Length [ADAQ]
- 10.605 Inches Minimum And 10.635 Inches Maximum
- Features Provided [CBBL]
- Cleaning Blades
- Filtering Media Design [CRXW]
- Perforated Single Filtering Media Response
- First Discharge Connection Relationship To Intake Connection [CSJR]
- Identical To First Intake Connection
- First Discharge Flange Face Style [CTCS]
- Plain
- First Discharge Flange Outside Diameter [CSYK]
- 5.560 Inches Nominal
- First Discharge Flange Shape Style [CSWC]
- Round W/Threaded Bolt Holes
- First Intake Connection Type [CRXZ]
- Plain Face Flange Side
- First Intake Flange Face Style [CTBJ]
- Plain
- First Intake Flange Outside Diameter [CSRH]
- 5.560 Inches Nominal
- First Intake Flange Shape Style [CSTD]
- Round W/Threaded Bolt Holes
- Material [MATT]
- Copper Alloy Body
- Material [MATT]
- Nickel Alloy 400 Screening
- Maximum Operating Pressure [CQGM]
- 250.0 Pounds Per Square Inch
- Media For Which Designed [MEDA]
- Water
- Mounting Type [AAXX]
- Inlet Connection Side And Outlet Connection Side
- Style Designator [STYL]
- Diverted Flow Plug Strainer W/ Threader Cover
- Material Document And Classification [MDCL]
- Astm B148 C95800 Assn Std Single Material Response Body
- Part Name Assigned By Controlling Agency [CXCY]
- Hellan Fluid Strainer Style Sh Series 212
- Perforation Diameter [AKSV]
- 0.1875 Inches Nominal
- Special Features [FEAT]
- Handwheel Operated Filter, 2 In. Inlet And Discharge With 6 Bolt Pattern In A 3.94 In. Dia Bolt Hole Circle Threaded 1/2-13Unc-28-2B X 0.88 In. Deep; Drain 1.0 In. Dia Outlet With 4 Bolt Pattern In A 3.125 In. Dia Bolt Hole Circle Threaded 1/2-13Unc-28-2B X 0.75 In. Deep; Orientation, Drain Must Be Down.
- Thread Direction [AAJF]
- Right-Hand
DLA Procurement Analysis 4730-01-499-2135
Management Data 4730-01-499-2135
Navy
- Cognizance:
- 3B
NATO Stock Numbers Related to 4730-01-499-2135
4420-99-738-8054 4730-99-775-3073 4730-99-871-6543 4730-99-795-0616 4730-26-300-6594 4730-99-532-9887 4730-12-347-3444 4730-17-111-2092 4730-21-898-2873 4730-66-124-7716 4730-12-366-7669 4730-14-559-6396 4330-12-312-8594 4730-99-836-1979 4730-66-124-5181 4730-99-562-5199 4730-99-540-7419 4730-99-781-8369
Freight Information 4730-01-499-2135
4730-01-499-2135 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052440. A Sub NMFC of X. It has a NMFC Description of STRAINERS PIPE LINE I/S BODY. 4730-01-499-2135 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30350 which rates the freight between FCL and LCL. 4730-01-499-2135 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-499-2135 is not classified as a special type of cargo when transported by water. 4730-01-499-2135 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-499-2135
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 12.0" H x 18.0" W x -- L
- --
- --
- Physical Protection
- Any Suitable Process
- 12.0" H x 18.0" W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- Cushion, Anchor, Block or Brace as Required
- --
- Any Suitable Wood Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 4730-01-499-2135 1 Records
