4730-01-486-0721
Spool Piece
4730014860721 014860721 K633087-11
A straight cut length of pipe fabricated with drilled and faced flanges on each end. It may have steel lifting rings or ears welded longitudinally to the pipe and is generally used for submerged pipeline, fuel loading line, and the like. View more Spool Piece
January 2023
4
Marketplace 4730-01-486-0721
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-486-0721 1+ Documents (More...)
/fsg-47/fsc-4730/us 4730-01-486-0721 RQST NE Updated Every Day 4730-01-486-0721 RQST Updated Every Day
4730-01-486-0721 RQST NE Restrictions Restrictions 4730-01-486-0721 DEMIL: A | DEMILI : 1 | CRITICALITY
Restrictions 4730-01-486-0721
4730-01-486-0721 is a Spool Piece that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-486-0721
- New Zealand (ZE01)
- Effective Date:
- 1 Jun 2001
Approved Sources 4730-01-486-0721
- Part Number
- Manufacturer
- Status
- K633087-11
- Manufacturer
- 84955 - Kaman Aerospace Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 4730-01-486-0721
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-S
- End Bolt Circle Diameter [CGMC]
- 0.375 Inches Nominal
- End Bolt Hole Diameter [CGNM]
- 0.191 Inches Minimum And 0.198 Inches Maximum
- End Bolt Hole Quantity [CGNL]
- 1
- End Outside Diameter [BCCH]
- 0.340 Inches Nominal

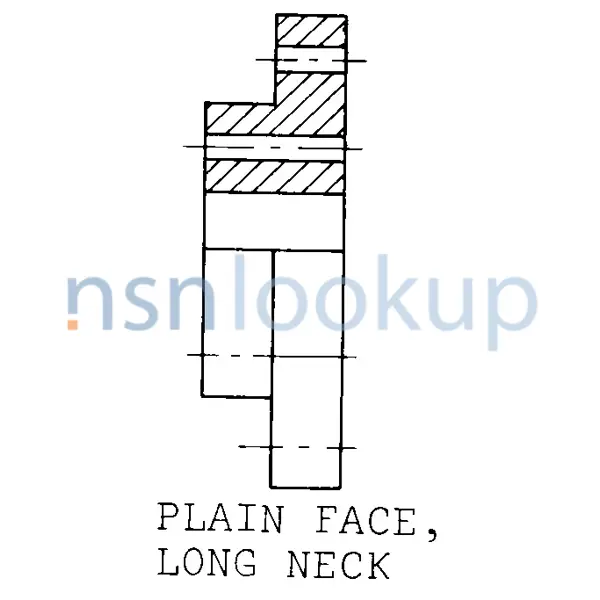

- End Style [ABQK]
- Plain Face, Long Neck
- End Thickness [AXPW]
- 0.050 Inches Nominal
- Material [MATT]
- Aluminum Alloy 2014
- Fsc Application Data [ZZZV]
- K633087 Roller Spool And Shim Lwrsuppt Brkt
- Special Features [FEAT]
- Material Spec Qq-A-266 Cond T6
Similar Supply Items to 4730-01-486-0721
Freight Information 4730-01-486-0721
4730-01-486-0721 has freight characteristics managed by New Zealand.. 4730-01-486-0721 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
