4730-01-483-1961

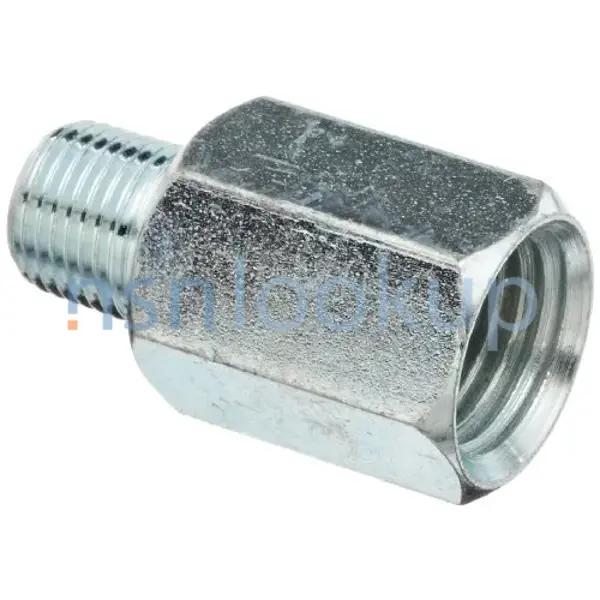

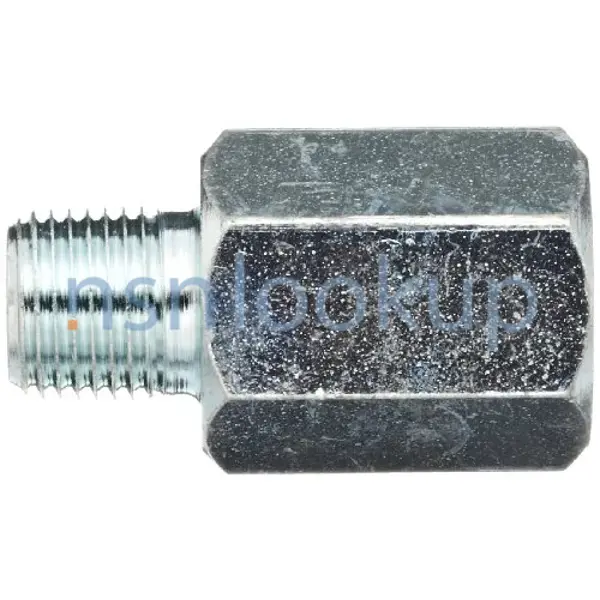

Pipe Reducer
4730014831961 014831961 43760 1790039
A straight pipe fitting having a different size connection on each end. It is designed to join two pipes of different sizes or two pipe fittings of different sizes. Excludes BUSHING (as modified). View more Pipe Reducer
May 2023
3
Marketplace 4730-01-483-1961
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-483-1961 5+ Documents (More...)
4730-01-483-1961 RQST NE Updated Every Day 4730-01-483-1961 RQST Updated Every Day 4730-01-483-1961
fsc-4730/us 4730-01-483-1961 Pipe Reducer 4730014831961 014831961,43760 437601790039 A straight pipe
Day 5950-00-993-8414 RQST NE Related Documents https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-483-1961
Pipe Reducer 4730014831961 014831961,43760 4730014831961 014831961,43760 437601790039 A straight
43760/5 G 43760 5G Managed by Germany NSN Created on 30 Dec 2004 Data Last Changed January 2023 NATO
5G Managed by Germany NSN Created on 30 Dec 2004 Data Last Changed January 2023 NATO 43760 https 43760
Restrictions 4730-01-483-1961
4730-01-483-1961 is a Pipe Reducer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-483-1961
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-483-1961
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
Approved Sources 4730-01-483-1961
- Part Number
- Manufacturer
- Status
- 43760
- Manufacturer
- 0FKM1 - Alemite, Llc (Active)
- Primary Buy
- Primary Buy
- 1790039
- 0BGA6 - Porter Manufacturing, L.L.C. (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-01-483-1961
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Copper Alloy Overall
- Connection Type [AWLS]
- Threaded Internal Pipe 1St End
- Connection Type [AWLS]
- Threaded External Pipe 2Nd End
- Connection Style [AHNC]
- Plain (Pipe) 1St End
- Connection Style [AHNC]
- Plain (Pipe) 2Nd End
- Thread Series Designator [THSD]
- Nptf All Ends
- Nominal Thread Size [CQJX]
- 0.125 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.250 Inches 2Nd End
- Reducer Type [ACSP]
- Concentric
- End Item Identification [AGAV]
- Nsn 4930-01-365-5725-Lubricating And Servicing Unit,Power
DLA Procurement Analysis 4730-01-483-1961
Management Data 4730-01-483-1961
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 4730-01-483-1961
Freight Information 4730-01-483-1961
4730-01-483-1961 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-01-483-1961 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-01-483-1961 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-483-1961 is not classified as a special type of cargo when transported by water. 4730-01-483-1961 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-483-1961
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x 4.0" W x 0.5" L
- --
- --
- --
- Any Suitable Process
- 4.0" H x 4.0" W x 0.5" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4730-01-483-1961 1 Records
Contracting Technical Data File (CTDF) 4730-01-483-1961 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
