4730-01-476-9326
Flared Tube Fitting Conical Seal
4730014769326 014769326 K68000400 K966020 ITEM 113 K966020
A cylindrical soft metallic crush item used to seal high pressure flared tube connections. It is designed to be inserted between the conical surface of a flared tube fitting and the inner surface of the flared end of the connecting tube. View more Flared Tube Fitting Conical Seal
September 2023
3
Marketplace 4730-01-476-9326
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-476-9326 5+ Documents (More...)
K68000400 SEAL,CONICAL,FLARED TUBE FITTING RQST NS Request Quotation K966020 SEAL,CONICAL,FLARED TUBE
/fsg-47/fsc-4730/us 4730-01-476-9326 Flared Tube Fitting Conical Seal 014769326 K68000400K966020 ITEM
/fsg-48/fsc-4810/us
Updated Every Day 4810-01-515-0509 RQST Updated https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-476-9326
Flared Tube Fitting Conical Seal 014769326 4730-01-476-9326 RQST Updated Every Day 4730-01 https
https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-311-9459 Check Valve 4820013119459013119459 K966020
Flared Tube Fitting Conical Seal 014769326 www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-476-9326
Updated Every Day 5930-01-475-6895 RQST Updated https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-476-9326
Flared Tube Fitting Conical Seal 014769326 www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-476-9326
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-475-6880 Pressure Switch 5930014756880014756880 K966020
Updated Every Day 5930-01-475-6880 RQST Updated https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-476-9326
Restrictions 4730-01-476-9326
4730-01-476-9326 is a Flared Tube Fitting Conical Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-476-9326
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4730-01-476-9326
- Part Number
- Manufacturer
- Status
- K68000400
- Manufacturer
- 62228 - Meggitt Defense Systems, Inc. (Active)
- Primary Buy
- Primary Buy
- K68000400
- 58163 - Meggitt (North Hollywood), Inc. (Active)
- Original Design
- Original Design
- K966020 ITEM 113
- 58163 - Meggitt (North Hollywood), Inc. (Active)
- Secondary Buy
- Secondary Buy
- K966020
- 58163 - Meggitt (North Hollywood), Inc. (Active)
- Informational Drawing
- Informational Drawing

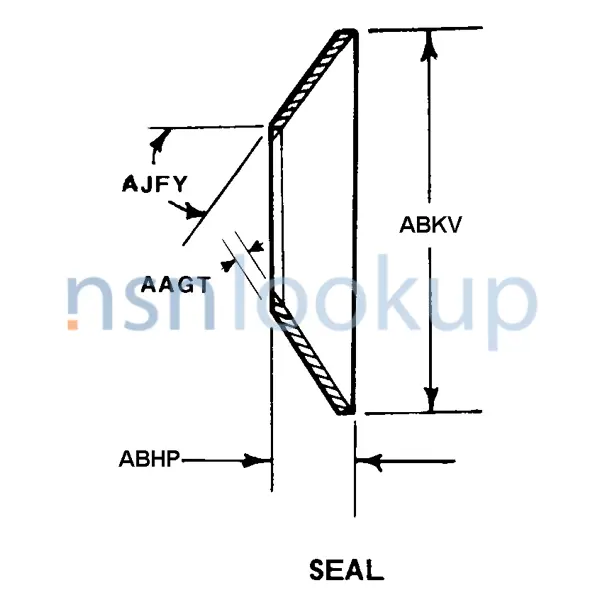

Datasheet 4730-01-476-9326
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-J
- Casehardening Indicator [AASG]
- Not Casehardened
- Hose/Tube Outside Diameter For Which Designed [CPMS]
- 0.228 Inches Minimum And 0.364 Inches Maximum
- End Item Identification [AGAV]
- Compressor For Naval Equipment
- Material [MATT]
- Nickel Alloy
- Outside Diameter [ABKV]
- 0.359 Inches Minimum And 0.364 Inches Maximum
- Seat Angle In Deg [AJFY]
- 37.0
- Overall Length [ABHP]
- 0.060 Inches Minimum And 0.075 Inches Maximum
- Special Features [FEAT]
- Matl Nickel Per Astm B 162
- Wall Thickness [AAGT]
- 0.005 Inches Nominal
- Style Designator [STYL]
- Seal
Weapon Systems (WSDC) 4730-01-476-9326
DLA Procurement Analysis 4730-01-476-9326
- Last Stock Position:
- 28 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-476-9326
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-01-476-9326
Freight Information 4730-01-476-9326
4730-01-476-9326 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052185. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-01-476-9326 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29950 which rates the freight between FCL and LCL. 4730-01-476-9326 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-476-9326 is not classified as a special type of cargo when transported by water. 4730-01-476-9326 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-476-9326
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 5
- 4.0" H x 4.0" W x 1.0" L
- --
- --
- Physical Protection
- Any Suitable Process
- 4.0" H x 4.0" W x 1.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- Plastic Containers (Vials, Boxes, etc) shall be Constructed of Rigid, Transparent Material that, If Applicable, is Resistant to Any Lubricant or Preservative being used
- --
- MIL-DTL-117, Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 4730-01-476-9326 7 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M323P3123
- 28 Aug 2023
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7M322P2189
- 23 Mar 2022
- Subscribe
- 71
- Subscribe
- Subscribe
- Subscribe
- SPE7M522P0240
- 02 Dec 2021
- Subscribe
- 18
- Subscribe
- Subscribe
- Subscribe
- SPE7M115VF924
- 11 Aug 2015
- Subscribe
- 153
- Subscribe
- Subscribe
- Subscribe
- SPE7M015V3883
- 22 Dec 2014
- Subscribe
- 25
- Subscribe
- Subscribe
- Subscribe
- SPE7M115M0588
- 15 Oct 2014
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM76004D70040213
- 30 Jan 2014
- Subscribe
- 18
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4730-01-476-9326 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
