4730-01-464-5351
Pipe Flange
4730014645351 014645351 21122500 810-4715319 FIG 2-A,ITEM NO. 34 810-4715319
An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified). View more Pipe Flange
November 2023
1
Marketplace 4730-01-464-5351
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-464-5351 5+ Documents (More...)
/us 4730-01-464-5351 Pipe Flange 4730014645351 014645351,21122500 21122500810-4715319 FIG 2-A,ITEM NO
4730014645351 014645351,21122500 21122500810-4715319 FIG 2-A,ITEM NO 10 INCH 810-4715319 FIG ,SZ6IN,
insertion by means of compression at both ends. https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-464-5351
Pipe Flange 4730014645351 014645351,21122500 4730-01-464-5351 4730014645351 014645351 is an item
... ) https//www.nsnlookup.com /fsg-53/fsc-5320 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-464-5351
Pipe Flange 4730014645351 014645351,21122500 Upgrade for $1 a day Upgrade your Account Upgrade
FIG 2-C 4715319 10 INCH 810-4715319 FIG ,SZ6IN,FIG.5C,SHT#2 810 ITEM 9 810-4715319 4715319 10 INCH 810
/fsg-47/fsc-4730/us 4730-01-464-5351 Pipe Flange 4730014645351 014645351,21122500 FIG 2-C 4715319 10
014635647,22122650 ITEM 48 810-4715319 ITEM 9 810-4715319 FIG 2-C 4715319 10 INCH 810-4715319 FIG ,SZ6IN
FIG 2-C 4715319 10 INCH 810-4715319 FIG 2- https 48 810-4715319 ITEM 9 810-4715319 ITEM 9 810-4715319
Restrictions 4730-01-464-5351
4730-01-464-5351 is a Pipe Flange that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-464-5351
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-464-5351
- US Navy (N9BC)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GT
Approved Sources 4730-01-464-5351
- Part Number
- Manufacturer
- Status
- 21122500
- Manufacturer
- 0JPG9 - Premier Copper Division Of W & O (Active)
- Primary Buy
- Primary Buy
- 810-4715319 FIG 2-A,ITEM NO. 34
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 810-4715319
- 80064 - Naval Ship Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-01-464-5351
- Characteristic
- Specifications
- FIIG
- Specifications
- A23300
- Material [MATT]
- Copper Alloy
- Style Designator [STYL]
- Round, One Bolt Hole Circle
- Bolt Circle Diameter [ABKG]
- 5.500 Inches Nominal
- Flange Diameter [ABKK]
- 6.625 Inches Nominal
- Bolt Hole Diameter [AHNX]
- 0.562 Inches Nominal

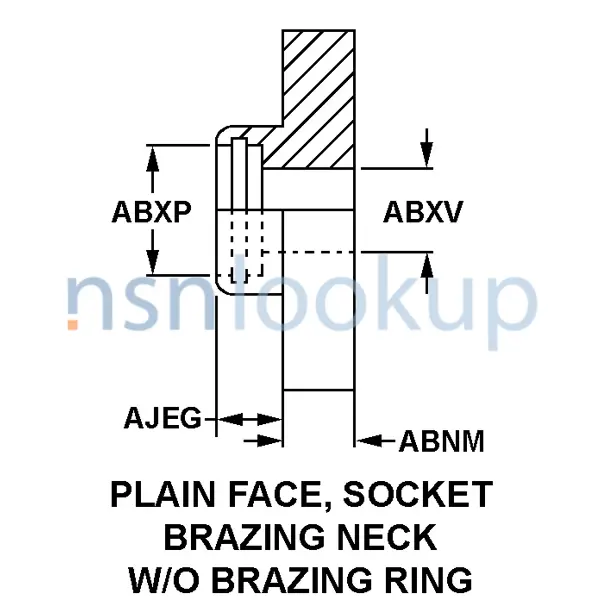

- Flange Section Style [AJEM]
- Plain Face, Socket Brazing Neck W/O Brazing Ring
- Thickness [ABNM]
- 0.500 Inches Nominal
- Socket Diameter [ABXP]
- 3.543 Inches Nominal
- Bore Diameter [ABXV]
- 3.310 Inches Nominal
- Face Seating Surface Condition [AKWE]
- Machined
- Special Features [FEAT]
- Maximum Operating Pressure And Media For Which Designed Are 150.0 Pounds Per Square Inch For Water, Gas And Oil
DLA Procurement Analysis 4730-01-464-5351
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-464-5351
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-01-464-5351
Freight Information 4730-01-464-5351
4730-01-464-5351 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 190600. A Sub NMFC of Z. It has a NMFC Description of VEHICLE PTS:AXLES NOI. 4730-01-464-5351 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 93500 which rates the freight between FCL and LCL. 4730-01-464-5351 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-464-5351 is not classified as a special type of cargo when transported by water. 4730-01-464-5351 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-464-5351
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 4730-01-464-5351 1 Records
Contracting Technical Data File (CTDF) 4730-01-464-5351 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
