4730-01-460-7510
Sediment Strainer
4730014607510 014607510 123JT-8IN-1554A-150-1/4M
A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. View more Sediment Strainer
November 2023
3
Marketplace 4730-01-460-7510
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-460-7510 4+ Documents (More...)
BUY NE FedMall Updated Every Day 4730-01-460-7510 RQST NE Updated Every Day 4730-01-460-7510 RQST
Updated Every Day 4730-01-460-7510 RQST NE Related Documents 4730-01-460-7510 4+ Documents ( More...
Sediment Strainer 4730014607510 014607510 day Upgrade your Account Upgrade 4730-01-460-7510Sediment
Strainer4730014607510 014607510 123JT-8IN-1554A -339-3241 Graisseur Axe 5315143393241 143393241,3615770
Sediment Strainer 4730014607510 014607510 (Identification) 1/3 NSN 4730-01-460-7510 (Identification
) 3/3 NSN 4730-01-460-7510 (Identification) BUY NE FedMall Updated Every Day 4730-01-460-7510 RQST NE
Restrictions 4730-01-460-7510
4730-01-460-7510 is a Sediment Strainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-460-7510
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HDHX
Approved Sources 4730-01-460-7510
- Part Number
- Manufacturer
- Status
- 123JT-8IN-1554A-150-1/4M
- Manufacturer
- 1QZK3 - The Hellan Strainer Co (Active)
- Primary Buy
- Primary Buy
- 123JT-8IN-1554A-150-1/4M
- 78527 - Staples & Pfeiffer, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-01-460-7510
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000
- Distance From Bottom Of Body To Center Of Inlet [CSKY]
- 24.000 Inches Nominal
- Body Height [ADAU]
- 43.500 Inches Nominal
- Body Length [ADAQ]
- 43.750 Inches Nominal
- Body Width [ADAT]
- 25.250 Inches Nominal
- Filtering Media Design [CRXW]
- Perforated Single Filtering Media Response
- First Discharge Connection Relationship To Intake Connection [CSJR]
- Identical To First Intake Connection
- First Discharge Flange Outside Diameter [CSYK]
- 12.375 Inches Nominal

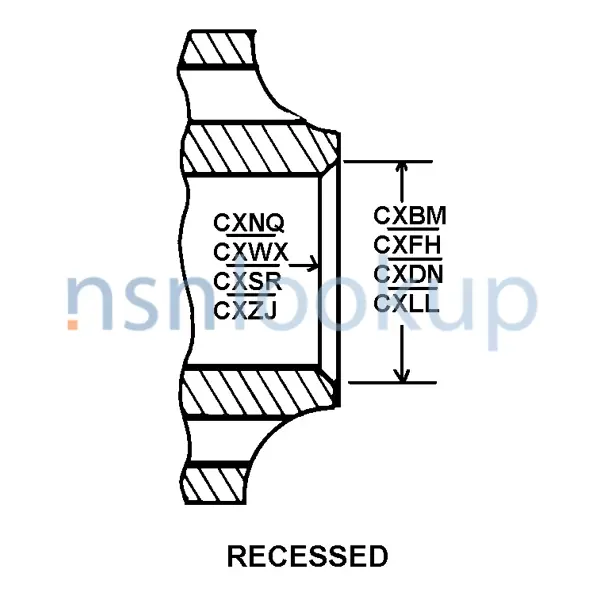

- First Discharge Flange Face Style [CTCS]
- Recessed
- First Discharge Flange Recess Depth [CXSR]
- 0.625 Inches Minimum
- First Discharge Flange Recess Diameter [CXDN]
- 8.330 Inches Minimum And 8.340 Inches Maximum
- First Discharge Flange Shape Style [CSWC]
- Round W/Unthreaded Bolt Holes
- First Discharge Flange Thickness [CTKC]
- 0.625 Inches Minimum
- First Intake Connection Type [CRXZ]
- Plain Face Flange Center
- First Intake Flange Face Style [CTBJ]
- Recessed
- First Intake Flange Outside Diameter [CSRH]
- 12.375 Inches Nominal
- First Intake Flange Recess Depth [CXNQ]
- 0.625 Inches Minimum
- First Intake Flange Shape Style [CSTD]
- Round W/Unthreaded Bolt Holes
- First Intake Flange Recess Diameter [CXBM]
- 8.330 Inches Minimum And 8.340 Inches Maximum
- First Intake Flange Thickness [CTHJ]
- 0.625 Inches Minimum
- Material [MATT]
- Copper Alloy Body
- Maximum Operating Pressure [CQGM]
- 225.0 Pounds Per Square Inch
- Media For Which Designed [MEDA]
- Water
- Mounting Facility Thread Direction [AKBN]
- Right-Hand
- Mounting Type [AAXX]
- Outlet Connection Center
- Style Designator [STYL]
- Twin Strainer W/Bolted Cover
- Material Document And Classification [MDCL]
- Astm B61 National Spec Single Material Response Body
- Perforation Diameter [AKSV]
- 0.250 Inches Nominal
- Perforation Quantity [AKSW]
- 36.0 Per Square Inch
- Temp Rating [AZKQ]
- 85.0 Deg Fahrenheit Maximum
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 4730-01-460-7510
DLA Procurement Analysis 4730-01-460-7510
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-01-460-7510
Navy
- Cognizance:
- 3B
Similar Supply Items to 4730-01-460-7510
Freight Information 4730-01-460-7510
4730-01-460-7510 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052440. A Sub NMFC of X. It has a NMFC Description of STRAINERS PIPE LINE I/S BODY. 4730-01-460-7510 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30350 which rates the freight between FCL and LCL. 4730-01-460-7510 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-01-460-7510 is not classified as a special type of cargo when transported by water. 4730-01-460-7510 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
