4730-01-451-5975
Tube Fitting Compression Ferrule
4730014515975 014515975 4031916
A flanged cylindrical metallic or nonmetallic item designed to be slipped over tubing. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled, the joint seals at the seat in a manner similar to a seat type union. View more Tube Fitting Compression Ferrule
May 2023
6
Marketplace 4730-01-451-5975
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-451-5975 1+ Documents (More...)
Updated Every Day 4730-01-451-5975 RQST Updated Every Day 4730-01-451-5975 RQST NE Related Documents
4730-01-451-5975 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-451-5975
Restrictions 4730-01-451-5975
4730-01-451-5975 is a Tube Fitting Compression Ferrule that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-01-451-5975
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-01-451-5975
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 2002
- Denmark (ZS01)
- Effective Date:
- 1 Jan 2006
Approved Sources 4730-01-451-5975
- Part Number
- Manufacturer
- Status
- 4031916
- Manufacturer
- 77445 - Rtx Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 4730-01-451-5975
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-J
- Casehardening Indicator [AASG]
- Not Casehardened
- Flange Outside Diameter [AHTC]
- 0.489 Inches Minimum And 0.491 Inches Maximum
- Hose/Tube Outside Diameter For Which Designed [CPMS]
- 0.375 Inches Minimum And 0.380 Inches Maximum
- End Item Identification [AGAV]
- Engine Aircraft F100-Pw-229 F15e, F16c/D.
- Material [MATT]
- Nickel Alloy
- Sleeve Outside Diameter [ARYW]
- 0.690 Inches Minimum And 0.694 Inches Maximum
- Overall Length [ABHP]
- 0.675 Inches Minimum And 0.695 Inches Maximum

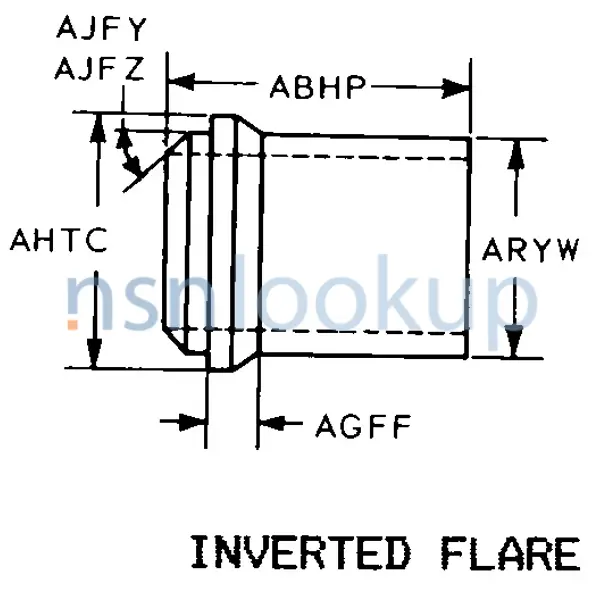

- Style Designator [STYL]
- Inverted Flare
Weapon Systems (WSDC) 4730-01-451-5975
DLA Procurement Analysis 4730-01-451-5975
Management Data 4730-01-451-5975
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 4730-01-451-5975
Freight Information 4730-01-451-5975
4730-01-451-5975 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051420. A Sub NMFC of X. It has a NMFC Description of CONDUITS,O/T EARTHEN:PIPE FITTINGS. 4730-01-451-5975 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29090 which rates the freight between FCL and LCL. 4730-01-451-5975 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4730-01-451-5975 is not classified as a special type of cargo when transported by water. 4730-01-451-5975 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-01-451-5975
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-203, Kraft Wrapping Paper
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- A-A-203, Kraft Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 4730-01-451-5975 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Y
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
