4730-01-449-6240
Tube-Hose Fitting Compression Sleeve
4730014496240 014496240 42151007-1 42151007
A ring-shaped item whose outer surface is so shaped as to form a seat for the coupling nut and the fitting between which it is assembled. It is designed to be slipped over tubing or hose so that tightening of the coupling nut to the fitting compresses the sleeve against the circumference of the tubing or hose thereby effecting a tight seal between the tubing, or hose fitting and coupling nut. View more Tube-Hose Fitting Compression Sleeve
Managed by United States
NSN Created on 8 Oct 1997
Data Last Changed
May 2023
May 2023
NATO Update Count
6
6
NATO Data Quality
Marketplace 4730-01-449-6240
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-01-449-6240 2+ Documents (More...)
42151007-1 42151007 A ring-shaped item whose outer surface is so shaped as to form a seat for the coupling
BUY NE FedMall Updated Every Day 4730-01-449-6240 RQST NE Updated Every Day 4730-01-449-6240 RQST
Updated Every Day 4730-01-449-6240 RQST NE Related Documents 4730-01-449-6240 2+ Documents ( More...
BUY NE FedMall Updated Every Day 4730-01-449-6240 RQST NE Updated Every Day 4730-01-449-6240 RQST
Updated Every Day 4730-01-449-6240 RQST NE Related Documents 4730-01-449-6240 2+ Documents ( More...
Documents 1560-14-215-1007 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-449-6240
Tube-Hose Fitting Compression Sleeve www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-449-6240 Tube-Hose
Fitting Compression Sleeve 42151007-142151007 Restrictions 1560-14-215-1007 DEMIL: | DEMILI : | CRITICALITY
Tube-Hose Fitting Compression Sleeve www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-449-6240 Tube-Hose
Fitting Compression Sleeve 42151007-142151007 Restrictions 1560-14-215-1007 DEMIL: | DEMILI : | CRITICALITY
Restrictions 4730-01-449-6240
4730-01-449-6240 is a Tube-Hose Fitting Compression Sleeve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4730-01-449-6240
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
Approved Sources 4730-01-449-6240
- Part Number
- Manufacturer
- Status
- 42151007-1
- Manufacturer
- 60118 - Newvac Llc (Active)
- Primary Buy
- Primary Buy
- 42151007
- 60118 - Newvac Llc (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-01-449-6240
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-J
- Casehardening Indicator [AASG]
- Not Casehardened
- Hose/Tube Outside Diameter For Which Designed [CPMS]
- 0.435 Inches Nominal
- Material [MATT]
- Aluminum Alloy, Qq-A-225/6, Alloy 2024, T3
- Sleeve Outside Diameter [ARYW]
- 0.700 Inches Nominal
- Overall Length [ABHP]
- 0.200 Inches Nominal

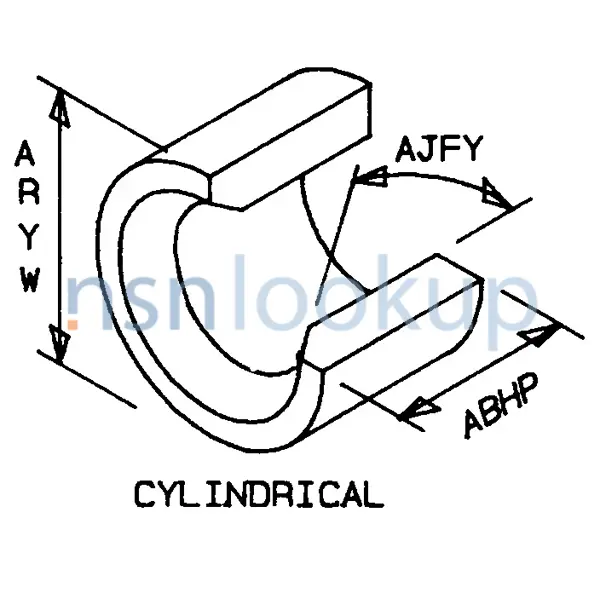

- Style Designator [STYL]
- Cylindrical
- Surface Treatment [SFTT]
- Anodize
DLA Procurement Analysis 4730-01-449-6240
Management Data 4730-01-449-6240
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 4730-01-449-6240
4730-14-378-9348 4730-14-559-0849 4730-99-971-9166 4730-14-550-0541 4730-14-405-0727 4730-99-214-6927 4730-99-736-2437 4730-66-131-7028 4730-12-324-4745 4730-19-004-0655 4730-99-251-8492 4730-12-198-2361 4730-99-639-8796 4730-14-511-6799 4730-99-001-5852 4730-14-326-1202 4730-14-388-4389 4730-14-300-9744
Freight Information 4730-01-449-6240
4730-01-449-6240 has freight characteristics.. 4730-01-449-6240 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Packaging Data 4730-01-449-6240
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-203, Kraft Wrapping Paper
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- A-A-203, Kraft Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 4730-01-449-6240 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
